Place of Origin: | Guang Zhou China |
---|---|
Brand Name: | RIBO |
Certification: | Certificcate of quality |
Model Number: | RiBo-10CR1.5L |
Minimum Order Quantity: | 1PC |
Price: | Negotiable |
Packaging Details: | The main machine and the preform feeding system will be packed by the wooden pallet |
Delivery Time: | 90-120 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 PCS |
Blow Molding Type: | Stretch Blow Molding | High Efficient: | Output 18000-15000 BPH |
---|---|---|---|
Automatic: | Yes | Energy Consumption: | Energy Consumption |
Use For: | Variable PET Bottle Of Water , Drink , Food , Edible Oil , Daily Chemical After-sales Service Provided | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
High Light: | Linear Bottle Blow Moulding Machine,Fully Automatic Pet Bottle Blowing Machine 11000Kg,Bottle Blow Moulding Machine 11000Kg |

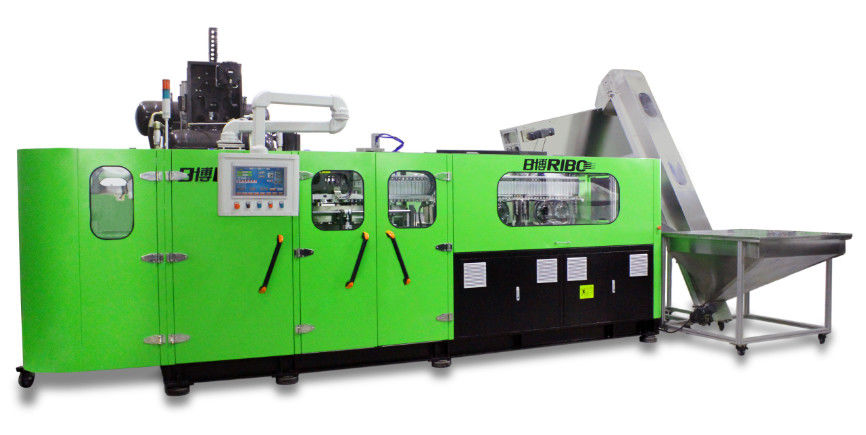

High Speed Bottle Blow Moulding Machine Fully Automatic with Linear
Items | Unit | Model | |
RiBo-10CR1.5L | |||
Molding Spec. | Preform Pitch | mm | 96 |
Preform Heating Pitch | mm | 38 | |
No.of Cav. | cav. | 10 | |
Container Spec. | Max.Container Volume | L | 1.5 |
Neck Diameter Range | mm | 18~30 | |
Max.Containr Diameter | mm | 88 | |
Max.Containr Height | mm | 320 | |
※※Theoretical Output | bph | 18000~15000 | |
Power Spec. | Rated Power | KW | 147 |
Power Consumption | KW | 48~68 | |
Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
Air Consuming | m3/min | 8~10 | |
Main Machine Spec. | Size | mm | 8480x3400x3000 |
Weight | Kg | 11000 | |
