| Place of Origin: | China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificcate of quality |
| Model Number: | RiBo-9CR1.5L |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | The main machine and the preform feeding system will be packed by the wooden pallet |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, D/A, D/P, Western Union |
| Voltage: | 3 Phase,380V/50HZ,Customized | Dimension(l*w*h): | 8.5*3.3*3.2M |
|---|---|---|---|
| Warranty: | 1 Year,12 Months | Blow Moulding Type: | Stretch Blow Moulding |
| Application: | Bottle,Beverage Bottle/oil Botlte/shampoo Bottle | Plastic Processed: | PET |
| Power(w): | 147KW | Automatic: | Yes |
| Weight: | 10.5 Tons | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support,Field Installation |
| Capacity: | 18000BPH Blow Molding Machine | Product Name: | Automatic Blowing Molding Machine |
| Cavity: | 9 Cavities | Use: | Making PET Bottle,water Bottle |
| Cavity Pitch: | 105mm | Preform Heating Pitch: | 38mm |
| Max.Container Volume: | 1.5L | Neck Diameter Range: | 18~30mm |
| Max.container Height: | 320mm | Output: | 18000~13500BPH |
| Power Consumption: | 48~68KW | Blowing Pressure: | 2.5~3.2 Mpa |
| Air Consuming: | 8~10M3/min/40kg | Widely Used In: | PET Container For Water Bottle,CSD Bottle,Edible Oil Bottle,ect |

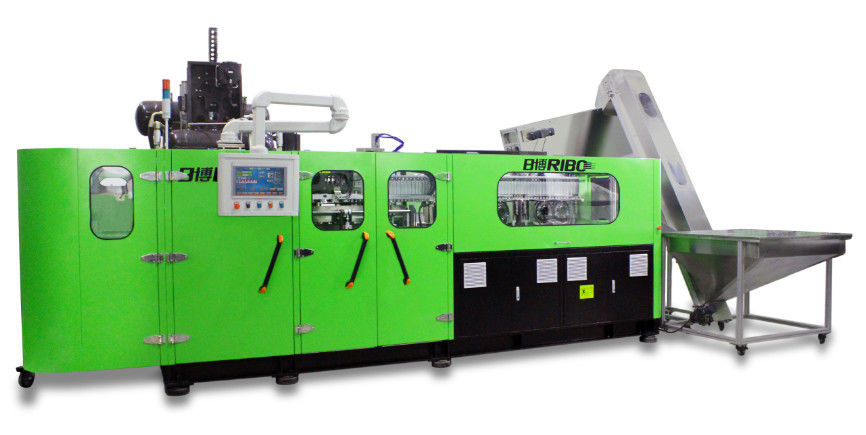

High Speed Energy Saving Good Price Water Bottle Blow Moulding Machine for 500ml Bottle
Performance and characteristics
2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving (energy saving can be up to 50%).
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.

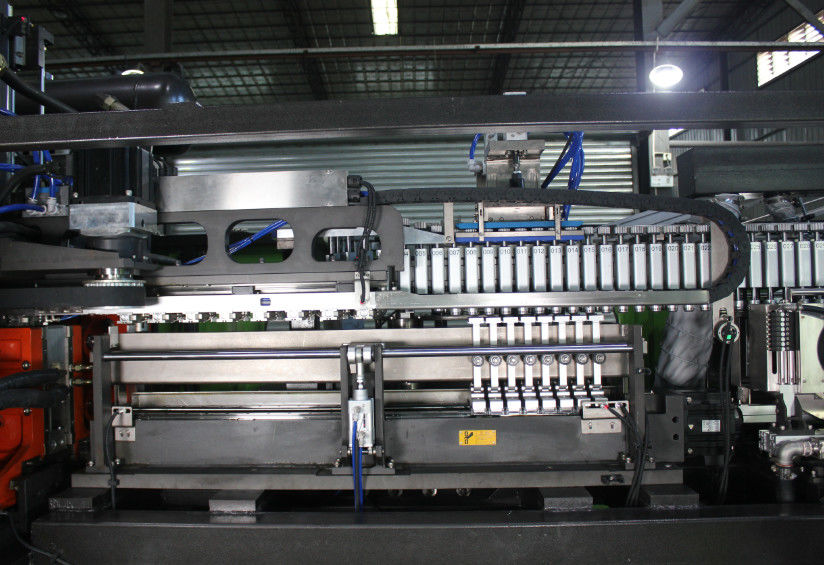

4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and accurate preform handling between the two mechanism.

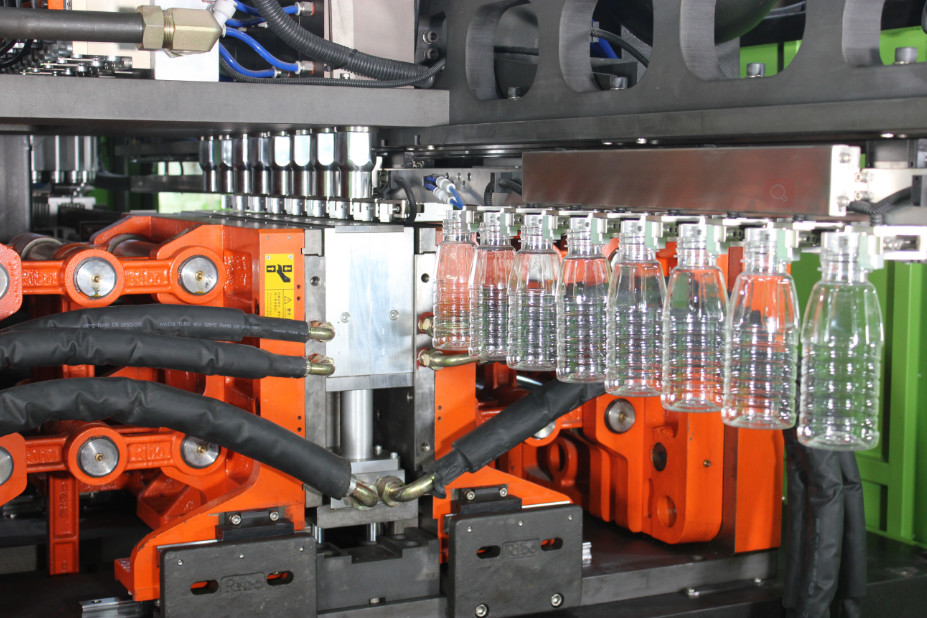

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve the energy-efficient and environmental safe.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10.This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil, food, daily chemical……ect.
Technical Parameter
| Items | Unit | Model | |
| RiBo-9CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 9 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 97 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 18000~13500 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | 48~68 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8~10 | |
| Main Machine Spec. | Size | mm | 7869*3400*3200 |
| Weight | Kg | 10500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
