| Place of Origin: | Guang Zhou China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |
| Model Number: | RiBo-8CR600 |
| Minimum Order Quantity: | 1 CP |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallets |
| Delivery Time: | 90-120 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 PCS/Year |
| Blow Molding Type: | Stretch Blow Molding | High Efficient: | Output 19000-16000 BPH |
|---|---|---|---|
| Automatic: | Full Automatic | Energy Consumption: | Saving Energy Can Be Up To 50% |
| Use For: | Variable PET Bottle Of Water , Drink , Food , Edible Oil , Daily Chemical | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
| Voltage: | 220V/380V,380V/50HZ,3 Phase | Warranty: | 1 Year |
| Blow Moulding Type: | PET Stretch Blow Moulding Machine,high Speed Bottle Blowing Machine | Application: | Bottle,Beverage Bottle/oil Botlte/shampoo Bottle |
| Plastic Processed: | PET | Weight: | 8500KG |
| High Light: | 380V Mineral Water Bottle Blowing Machine,220V Mineral Water Bottle Blowing Machine,8500KG mineral water bottle machine |
||

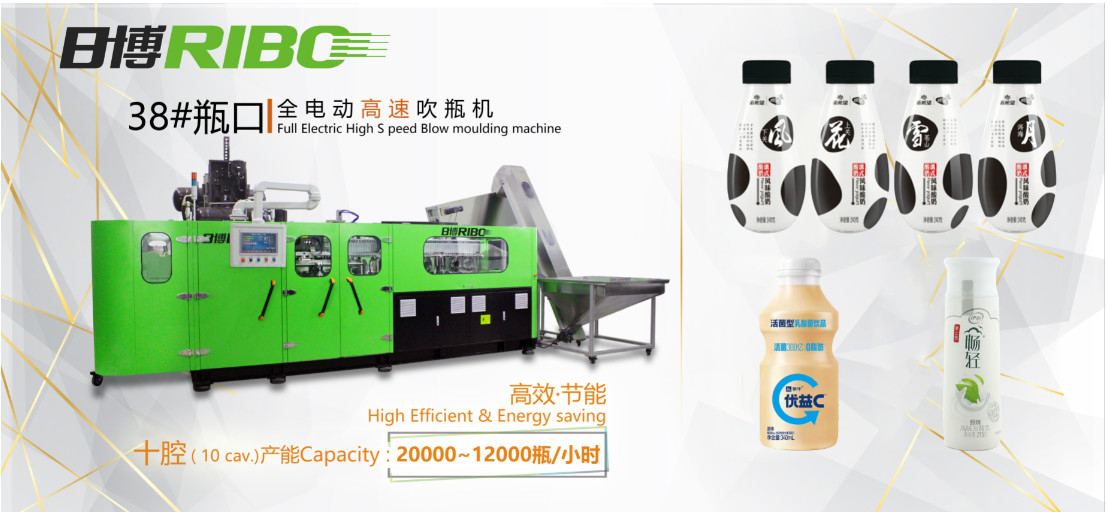

Energy Saving PET Blowing Machine , Mineral Water Bottle Blowing Machine
Performance and Characteristics:
1. The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the
process.
2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving (energy
saving can be up to 50%).
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders
make it easy for the operators to change infrared tubes and do maintenance.

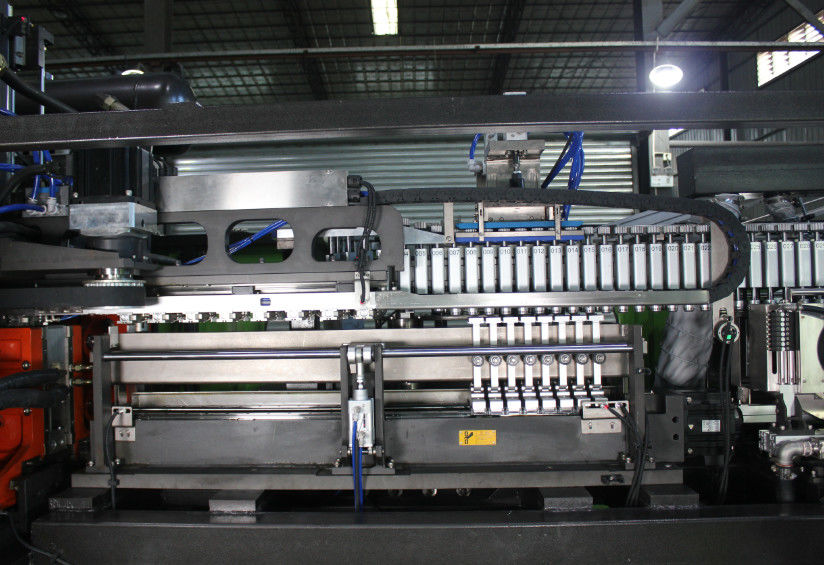

4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and
accurate preform handling between the two mechanism.

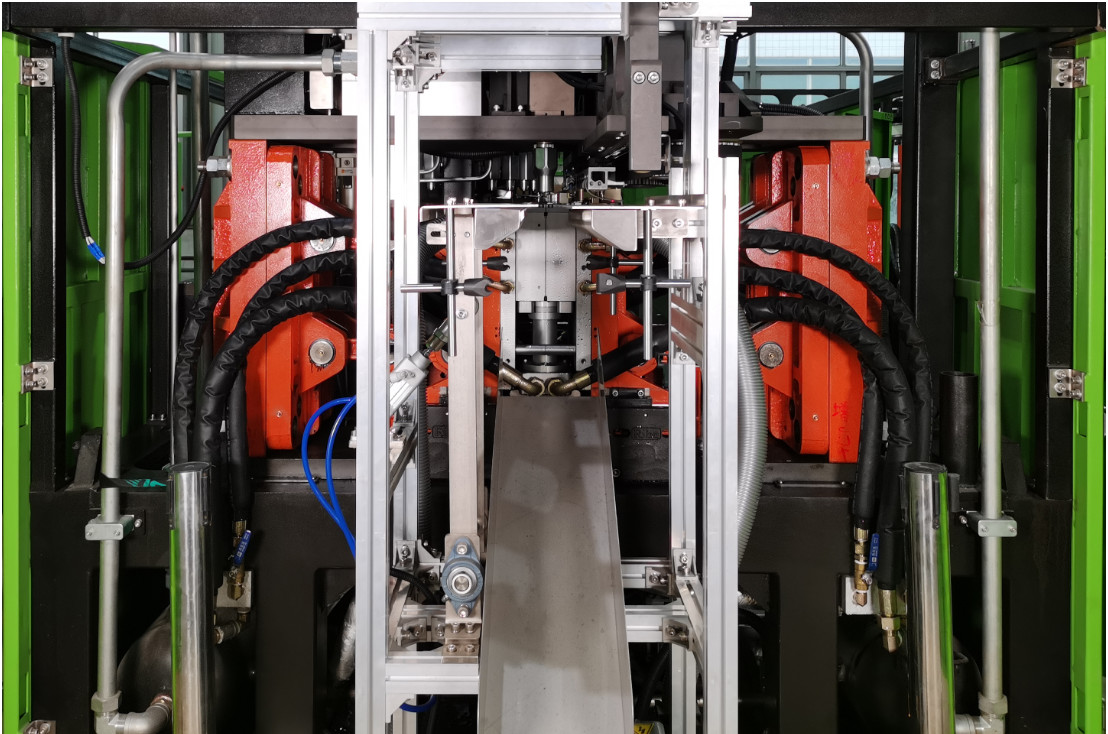

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing
valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve the energy-
efficient and environmental safe.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as
well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10. This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil,
food, daily chemical……ect.
Technical Parameter:
| Items | Unit | Model | |
| RiBo-8CR600 | |||
| Molding Spec. | Preform Pitch | mm | 76 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 0.7 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Output | bph | 19000~16000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 40~50 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8 | |
| Main Machine Spec. | Size | mm | 6758*3331*3200 |
| Weight | Kg | 8500 | |
Note:*Due to continuous technical development specification would be improved without prior notice.
*Special designs correspond to customers needs.
