| Place of Origin: | Guang Zhou China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |
| Model Number: | RiBo-8CR2L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallets |
| Delivery Time: | 90-120 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 CPS/Year |
| Blow Molding Type: | Stretch Blow Molding | High Efficient: | Output 16000~12000 BPH |
|---|---|---|---|
| Automatic: | Yes | Energy Consumption: | Saving Energy Can Be Up To 50% |
| Use For: | Variable PET Bottle Of Water , Drink , Food , Edible Oil , Daily Chemical | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
| High Light: | 12000BPH Bottle Blow Moulding Machine,16000BPH Bottle Blow Moulding Machine,12000BPH Bottle Moulding Machine |
||

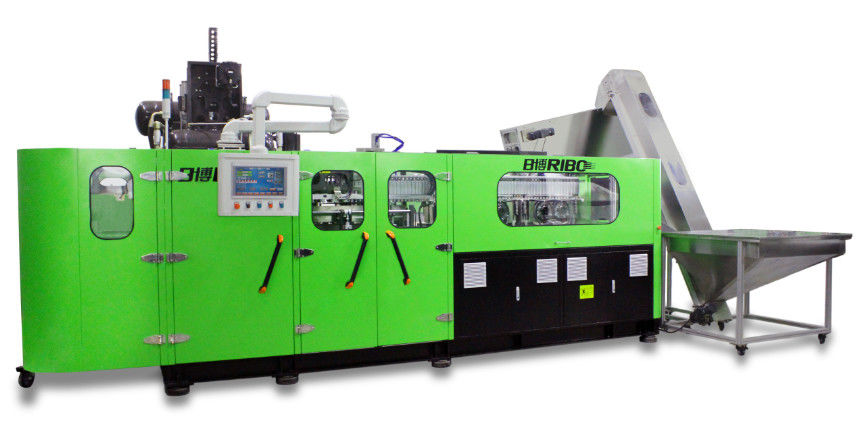

Energy Saving PET Bottle Blow Moulding Machine For Water Bottle , Carbonated Drinks Bottle
Product Application
This machine is suitable for mineral water bottle,edible oil bottle,carbonated beverage bottle,etc less than 5 liter.
Use the advanced touch-screen computer control,easy operation,stable quality and high safety.
The production process is finished by the automatic micro-computerized control,only need one operator.
|
Model
|
SC-500 Semi Automatic PET Bottle Blowing Machine
|
||
|
Theoretical output
|
400--500 pcs/h
|
800--1000 pcs/h
|
|
|
Finished bottle
|
Max. bottle volume
|
3L-5L
|
50ML-2.5L
|
|
Max. neck diameter
|
120mm
|
80mm
|
|
|
170mm
|
110mm
|
||
|
Max. bottle height
|
380mm
|
365mm
|
|
|
Mold specifications
|
Cavity
|
1 cavity
|
2 cavity
|
|
Mold thickness
|
90mm-270mm
|
90mm-270mm
|
|
|
Open stroke
|
210mm
|
210mm
|
|
|
Electrical system
|
Power voltage
|
380v/3Phase/50HZ
|
|
|
Installation power
|
14kw
|
||
|
Actual power consumption
|
5kw
|
||
|
Air source
|
Recommend air compressor
|
1.2m³/min 30Kg
|
|
|
Cooling water
|
Recommend water chiller
|
5HP
|
|
|
Blowing machine size
|
Length*width*height/weight
|
1930*620*1700mm/750kg
|
|
|
Heater size
|
Length*width*height/weight
|
1780*570*1380mm/350kg
|
|
1. Semi automatic running with theoretical output :
400-500BPH for 3L-5L bottle.
800-1000BPH for 50ml-2.5L bottle. (Need extra components)
2. Advanced PLC control system with use-friendly touch screen.
3. Simple installation & start up operation.
4. Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5. Preforms are rotating in the heater to ensure being heated evenly.
6. Equipped with air cooling system ensure the bottle neck not deform.
7. Equipped with special designed air storage unit.
8.The machine surface is treated with baking varnish.
Performance and Characteristics
1. The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the
process.
2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving (energy
saving can be up to 50%).
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders
make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and
accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve
unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve the energy-
efficient and environmental safe.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well
as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10. This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil,
food, daily chemical……ect.
Technical Parameter
| Items | Unit | Model | |
| RiBo-8CR2L | |||
| Molding Spec. | Preform Pitch | mm | 120 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 114 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 16000~12000 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | 48~68 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8~10 | |
| Main Machine Spec. | Size | mm | 7869*3400*3200 |
| Weight | Kg | 10500 | |
*Due to continuous technical development specification would be improved without prior notice.
*Special designs correspond to customers needs.
