| Place of Origin: | Guangdong,China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-2CR20L |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 PCS / Month |
| Name: | Large Bottle Making Machine,Automatic High Speed Blowing Machine Price,Plastic Bottle Blowing Machine Manufacturer | Output: | 1200 BPH |
|---|---|---|---|
| Product Name: | Pet Blowing Machine Price For PET Preform,bottle Molding Machine | Control: | PLC & Touch Screen |
| Cavity Pitch: | 325 Mm | Preform Heating Pitch: | 96mm |
| No.of Cav.: | 2-Cavity | Max.container Volume: | 20L |
| Neck Diameter Range: | 72mm | Support Ring Diameter: | 88mm |
| Max.container Height: | 310mm | Blowing Pressure: | 2.8~3.5 Mpa |
| Air Consuming: | 12M3/min/4.0Mpa | Servo Motor Brand: | Omron (Japan) |
| Max.container Diameter: | 520 Mm | Condition: | New |
| Application: | Bottle | Automatic: | Yes |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Overseas Service Center Available,Video Technical Support |
| Voltage: | Customized ,3 Phased 380V/50HZ | Weight: | 9800KG |
| Power(w) Consumption: | 168 KW | Capacity: | 1200BPH |
| High Light: | 1200BPH 5 Gallon Blowing Machine,1200BPH 2 Cavity Pet Blowing Machine,2 Cavity 5 Gallon Blowing Machine |
||

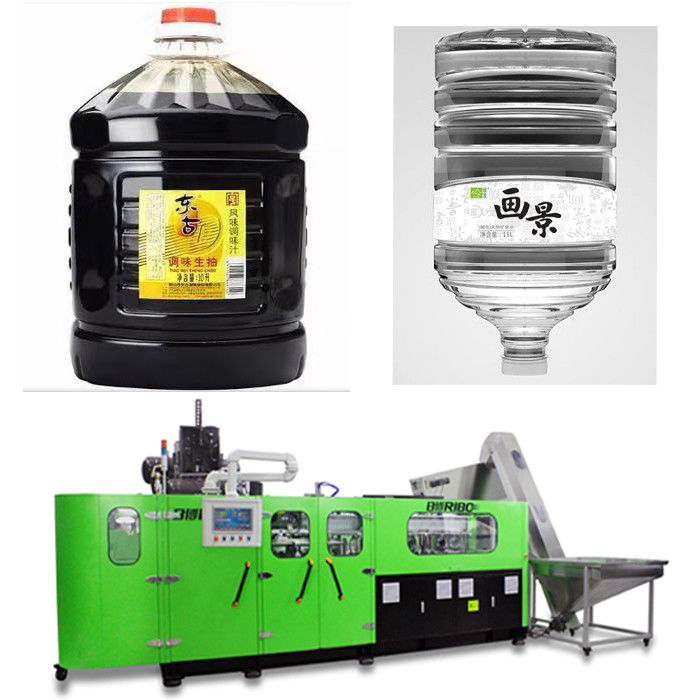

5 Gallons PET Bottle Blow Moulding Machine / Large Bottle Blowing Machine / 20 Liters PET blowing
Machine
This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Performance and Characteristics
1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position
streamlines the process.

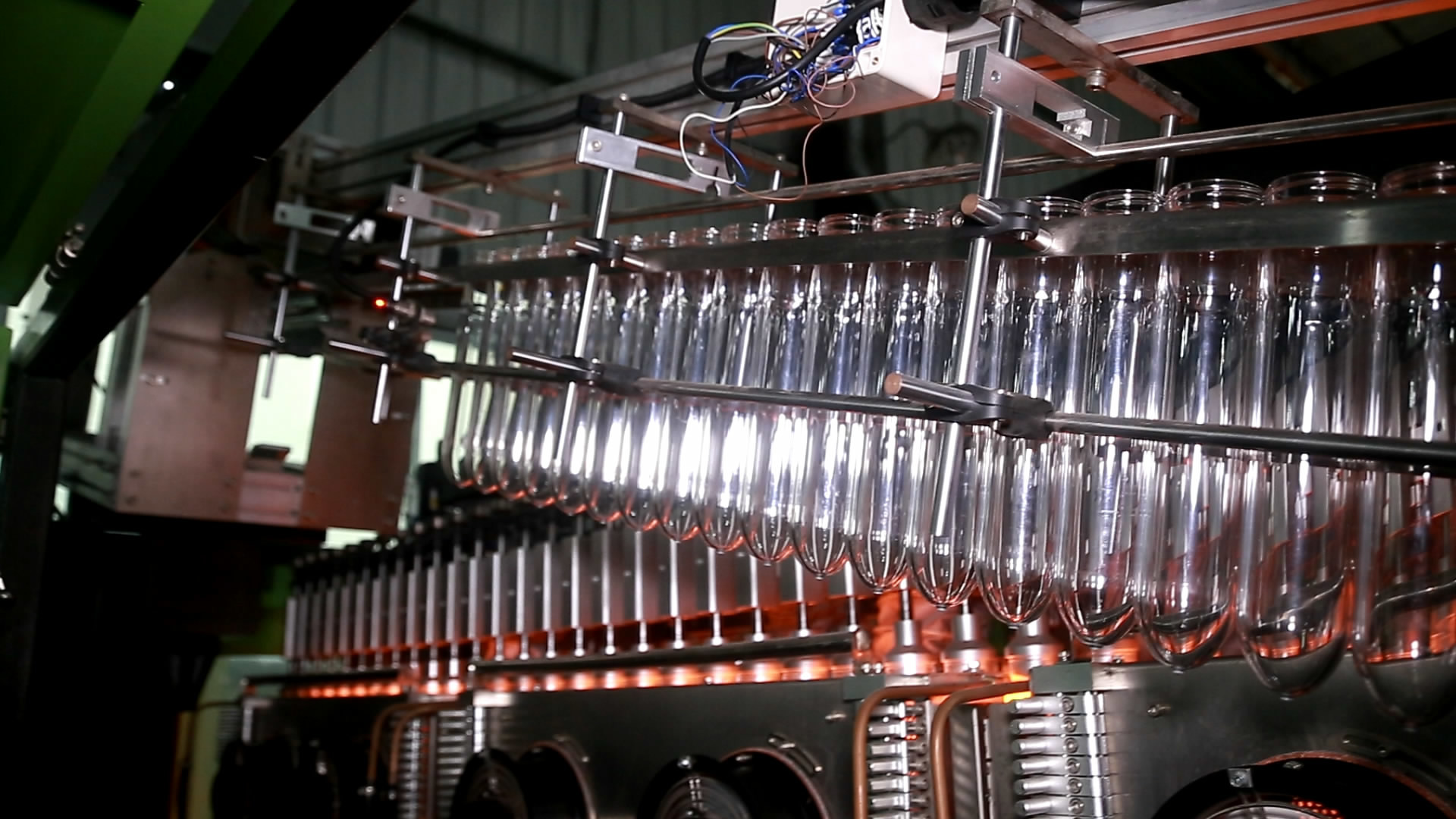

2. Continuous heating system, more preforms are uninterruptedly heated within the same distance, which improves the
efficiency and energy saving.
3.The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high
speed and accurate preform handling between the two mechanism.
4.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
5.The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed
precision blowing valve unit helps to make high capacity.
6.The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7.High pressure blowing air recovery system saves up to 30% of HPC air.
8. Operation on the touch screen is simple and easy.
This series is widely app for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Technical Parameter
| Items | Unit | Model | |
| RiBo-2CR20L | |||
| Molding Spec. | Preform Pitch | mm | 325 |
| Preform Heating Pitch | mm | 96 | |
| No.of Cav. | cav. | 2 | |
Container Spec. |
Max.Container Volume | L | 20 |
| Neck Diameter Range | mm | 72 | |
| Support ring diameter | mm | 88 | |
| Max.Containr Diameter | mm | 310 | |
| Max.Containr Height | mm | 520 | |
| ※※ Theoretical Output | bph | 1200 | |
| Power Spec. | Rateed Power | KW | 168 |
| Power Consumption | KW | 50~85 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 12 | |
| Main Machine Spec. | Size | mm | 8500*3900*3700 |
| Weight | Kg | 9800 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
