| Place of Origin: | Made in Guangdong, China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-3CR5L |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Main machine and the hopper & automatic preform feeding system will be packed by the wooden pallets,the standard spare parts and the bottle blow moulds will be packed by the wooden box |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 PCS / month |
| Condition: | New | Voltage: | 3phase 380V/50Hz,Customized |
|---|---|---|---|
| Power(w): | 118KW | Dimension(l*w*h): | 8700*3300*3100MM |
| Application: | PET Big Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Free Spare Parts,Online Support,Field Maintenance And Repair Service |
| Weight: | 8000kg | Warranty: | 12 Months,1 Year For The Main Components Like Servo Motor,gear Box,etc...... |
| Plastic Processed: | PET | Automatic: | Full Automatic |
| Blow Moulding Type: | PET Stretch Blow Moulding | Product Name: | Automatic Blowing Molding Machine,blow Molding Machine,Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,PET Bottle Making Machine |
| Name: | High Quality Water / Oil Bottle Making Machine Production Line | Capacity: | 3600~3000BPH |
| Cavity: | 3 Cavity | Suitable Bottle: | 3000~5000ml |
| Use: | Making PET Bottle | Place Of Origin: | Guangdong Province,China |
| PLC Brand: | Omron Motion Controller | Key Selling Points: | Energy Saving Above 40%,high Effeciency |
| Application Industrial: | Food&Beverage Factory | Cylinder: | FESTO (Germany) |
| High Pressure Blowing Valve: | SEITZ (Switzerland) | Max.bottle Volume: | 5000ml |
| Neck Diameter Range: | 39~45mm | Support Ring Diameter: | 57mm |
| Max.bottle Diameter: | 180mm | Max.bottle Height: | 330mm |
| Power Consumption: | 46~56KW | Blowing Pressure: | 2.8~3.5Mpa |
| Air Consuming: | 10 M3/min/40kg | Cavity Pitch: | 190mm |
| High Light: | 380V Stretch Blow Molding Machine,3phase Stretch Blow Molding Machine,380V Bottle Blow Molding Machine |
||

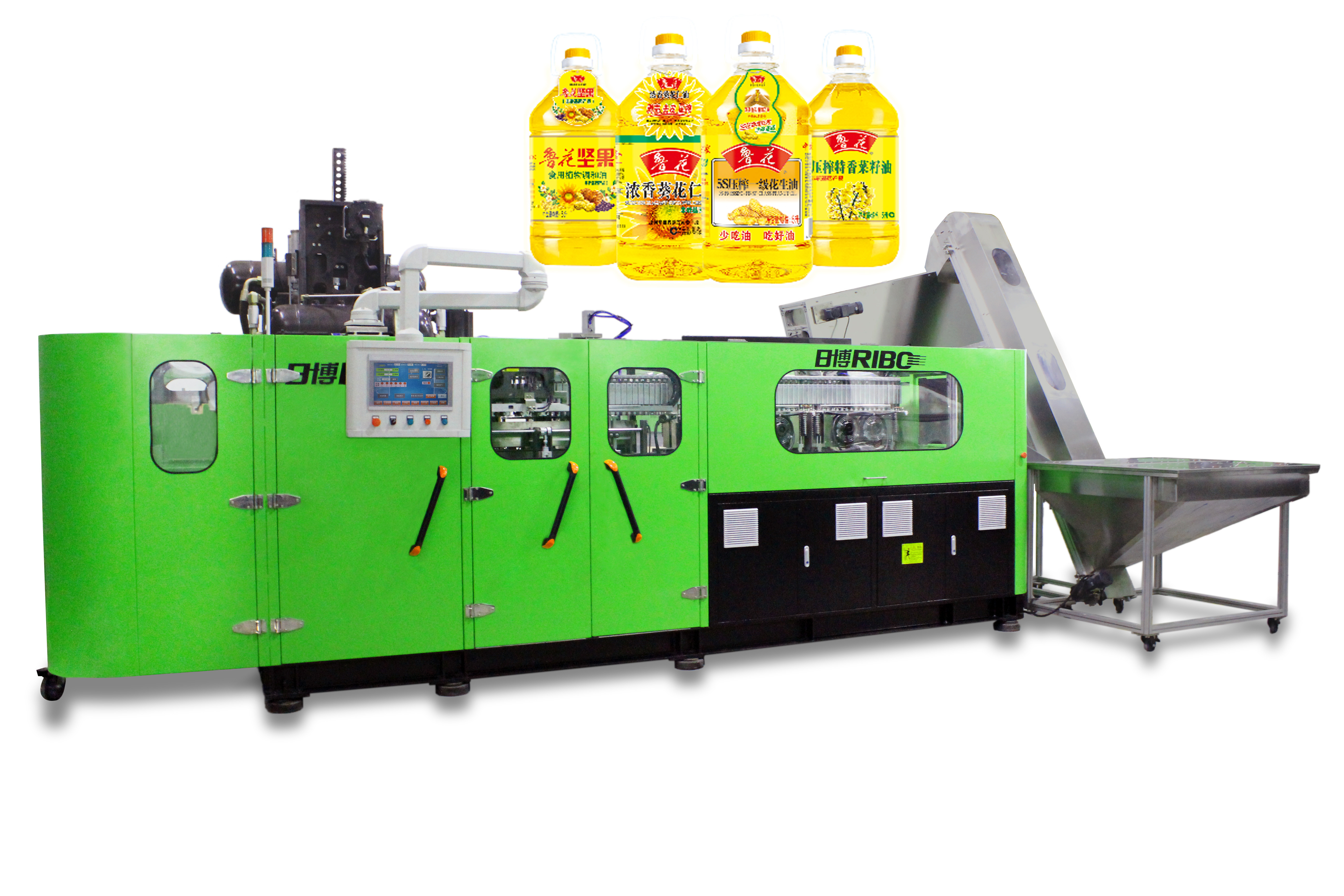

Stretch Blow Molding Machine , Bottle Blow Moulding Machine for 5000ml Water Bottle / Oil Bottle
Machine features and advantages

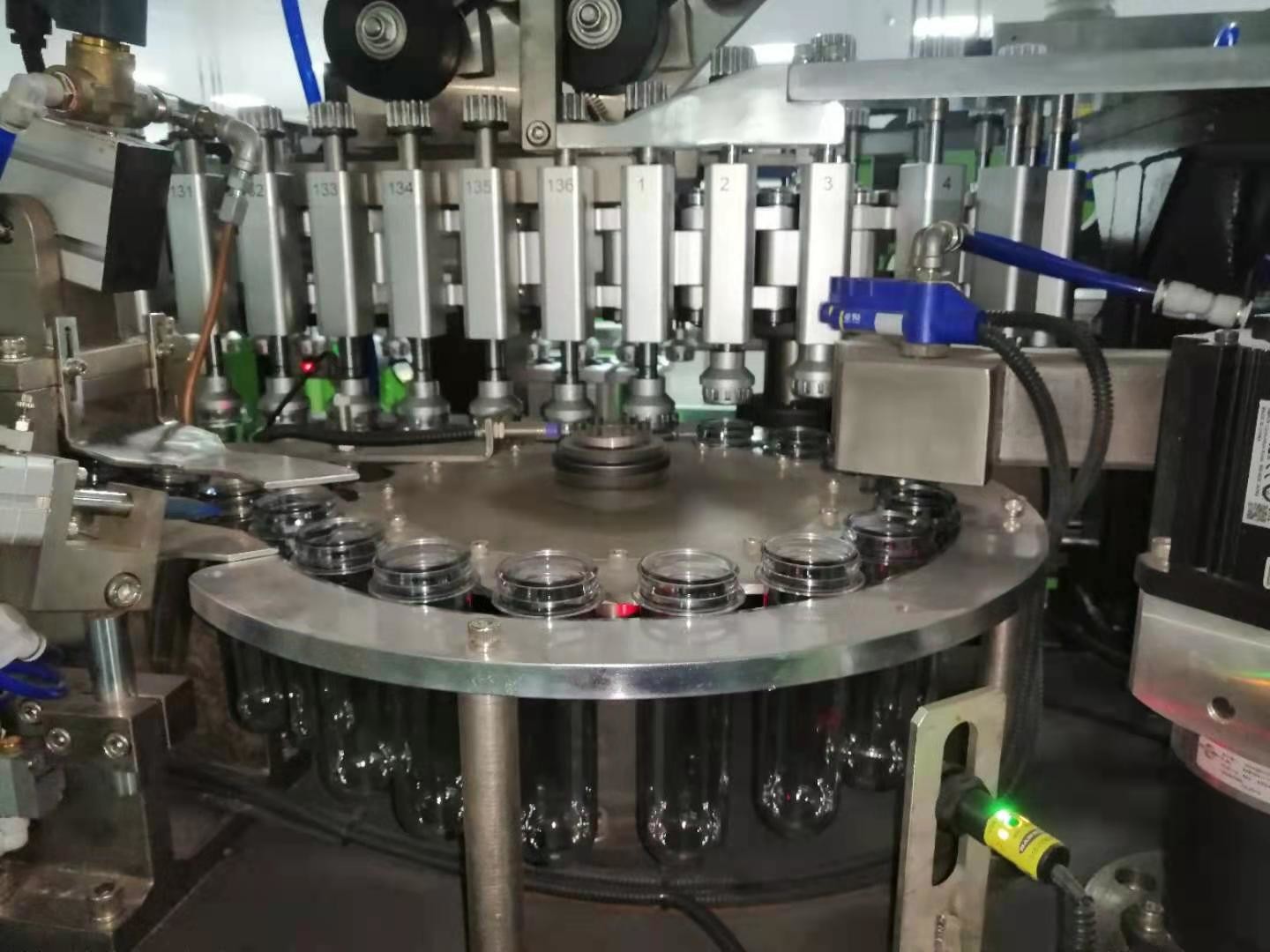

1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the
process.
2. 63.5mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving.
The application of the full closed-loop voltage regulator in preform heating system:
The temperature of the heating ovens are controlled by the full closed-loop voltage regulator (with feedback) which independently developed by
RiBo company. The controller detects and adjusts the output voltage (set value) at the scanning frequency of 100 times per second, so as to
achieve the effect of evenly voltage output and solve the problem of unstable heating effect caused by the heat fluctuation of heating element
(lamps) due to the voltage fluctuation of the power supply. In addition, the closed-loop control system interacts and cooperates with the original
heating ovens’ constant temperature control system, greatly improving the heating temperature fluctuation caused by environmental temperature
change. By application of the above technology in the bottle blowing machine, the heating uniformity and stability of each preform tend to be
completely consistent, which finally ensures the stability and uniformity of the bottle blowing effect of each cavity. This closed-loop unit has further
improved the overall performance of the bottle blowing equipment.
3.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders
make it easy for the operators to change infrared tubes and do maintenance.

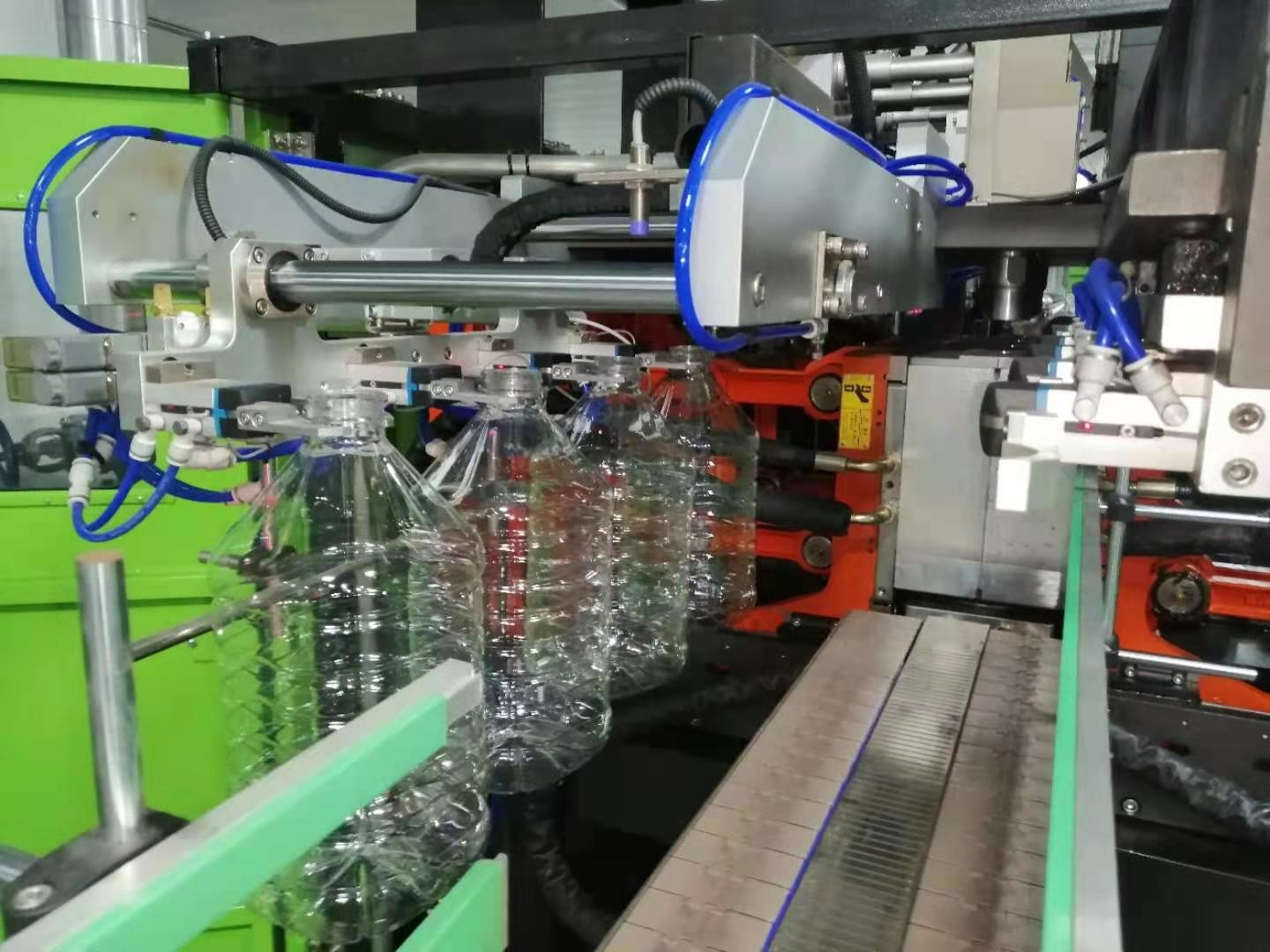

4.The perform transfer system with grippers is driven by the servo motors to ensure high speed and accurate preform handling between the two
mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve
unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well
as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
8. High pressure blowing air recovery system saves up to 30% of HPC air.
9. The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
10.Operation on the touch screen is simple and easy.
This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Machine Technical Parameter
| Items | Unit | Moldel | |
| RiBo-3CR5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 3 | |
| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 3600~3000 | |
| Power Spec. | Rated Power | KW | 118 |
| Power Consumption | KW | 46~56 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 9 | |
| Main Machine Spec. | Size | mm | 7200*3435*3300 |
| Weight | Kg | 8000 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
Application range:Widely used to blow various calibers of hollow plastic containers, product quality is stable, the machine structure design is reasonable, with small volume less energy consumption, easy to operate, convenient maintenance and other characteristics.All the mechanical parts of the automatic bottle blowing machine are processed with high and new technology, finished and assembled to meet the technical requirements of all aspects.
