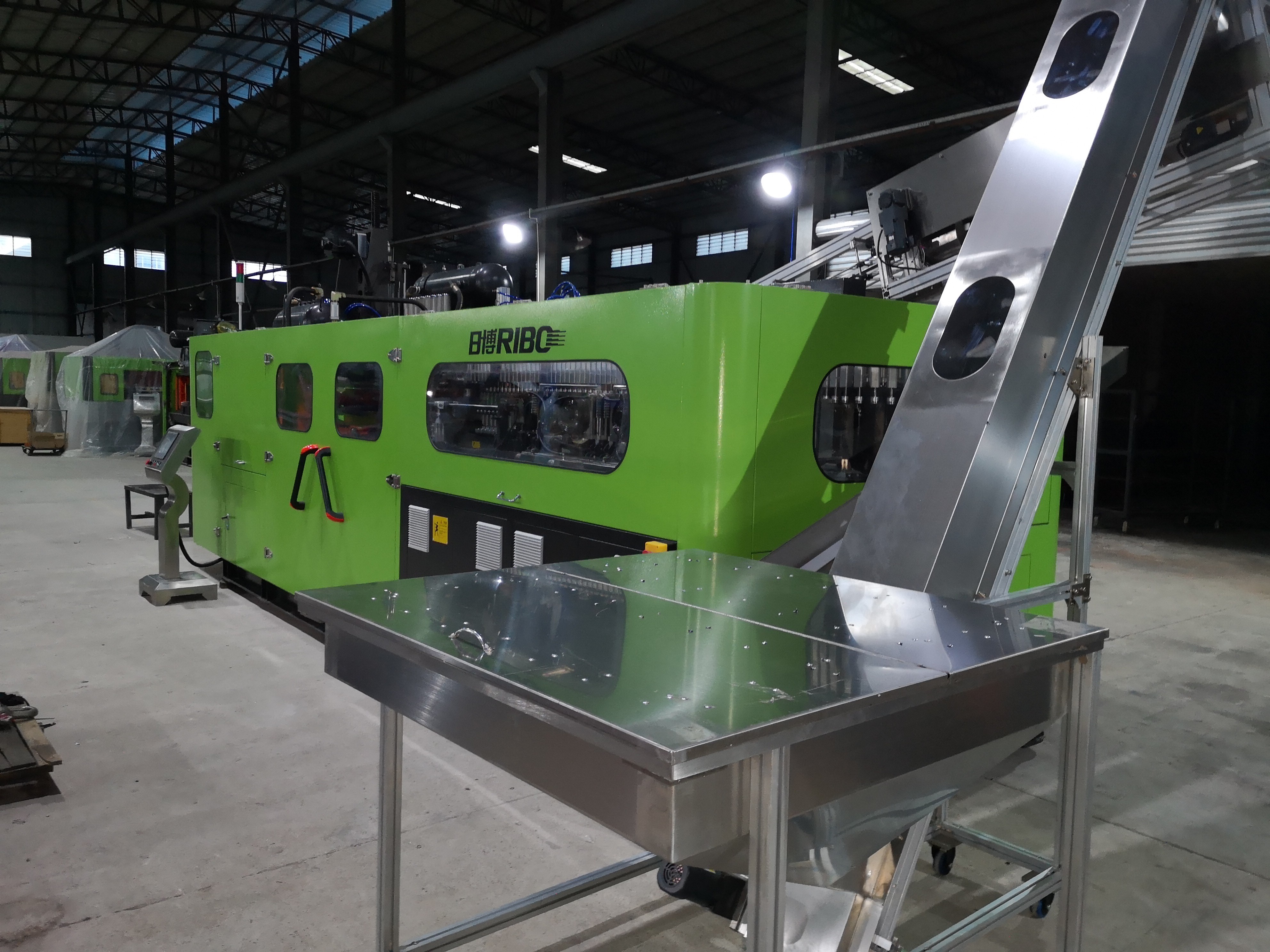

5L 10L Water Bottle Moulding Machine

1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position

   streamlines the process.

2.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged

   oven holders make it easy for the operators to change infrared tubes and do maintenance.

3.Continuous heating system, more preforms are uninterruptedly heated within the same distance, which improves the

   efficiency and energy saving.

4. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed

    precision blowing valve unit helps to make high capacity.

5.High pressure blowing air recovery system saves up to 30% of HPC air,the recovery air is used for motion air and the pre-

   blow air during the production.


6.Machine is easy to operate and maintain.Operation on the touch screen is simple and easy.

7.Used Japan Omron motion controlling system and man-machine interface computer.


8.Adopted Japan Omron Servo motors,ensure the high effeciency,single cavity output can be up to 1000~800BPH.


9.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.


10. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection

    and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
