| Place of Origin: | China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |
| Model Number: | RiBo-6CR5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Machine and the preform feeding system will be packed by wooden pallet |
| Delivery Time: | 120 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 PCS/Year |
| Machine Type: | Energy Saving High Speed PET Blow Molding Machine | Warranty: | 1 Year |
|---|---|---|---|
| After Sales Service: | Engineers Avaliable To Arrive Customer's Factory To Install And Debug Machine On Site | Max.Volume: | 5L |
| Payment Terms: | 40% T/T Down Payment,60% T/T Payment Before The Shipment | Output: | 6600~6000BPH |
| High Light: | 6000BPH Pet Stretch Blow Molding Machine,6000BPH water bottle molding machine,5L Pet Stretch Blow Molding Machine |
||

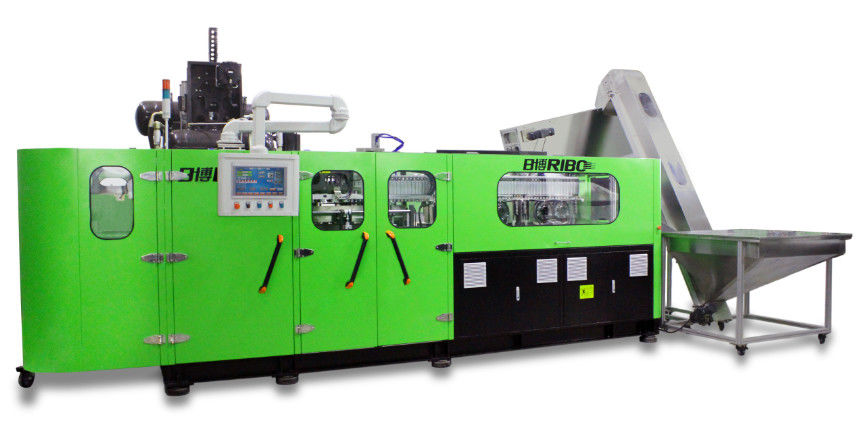

Big Bottle PET blow Moulding Machine For Mineral Water/Edible Oil Bottle
Performance and Characteristics of PET blow moulding machine
1．The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the process.
2. 63mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving.

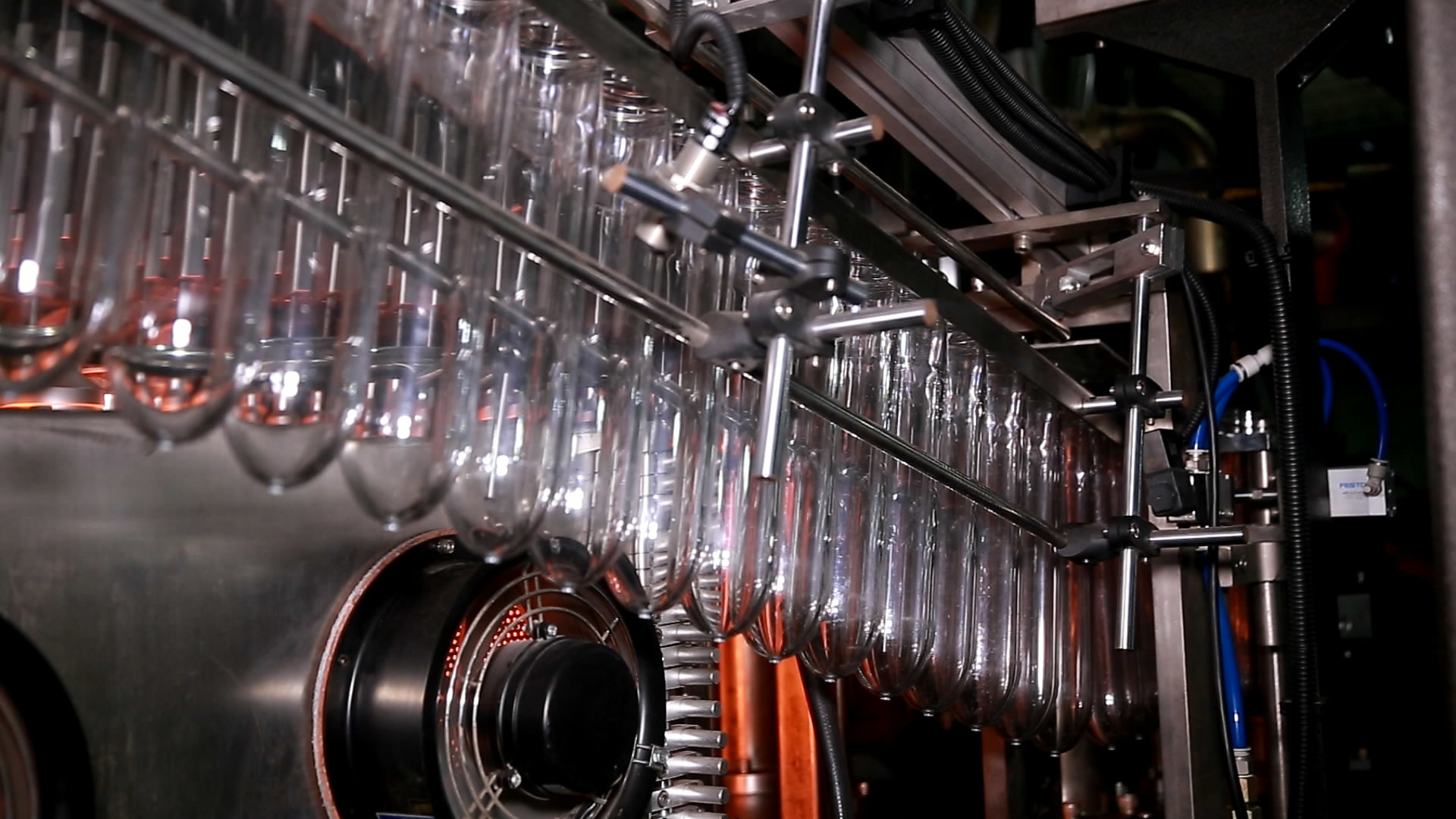

3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. High pressure blowing air recovery system saves up to 30% of HPC air.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.

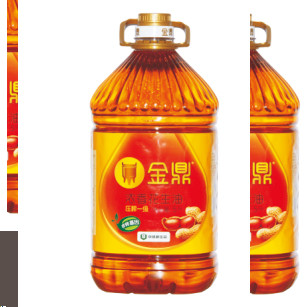

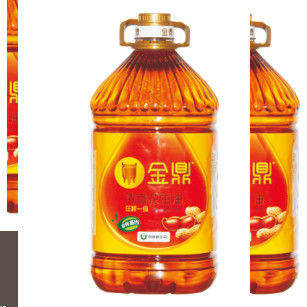

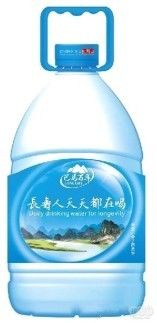

10.This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Technical Parameter
| Items | Unit | Model | |
| RiBo-6CR5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 6600~6000 | |
| Power Spec. | Rated Power | KW | 180 |
| Power Consumption | KW | 80~90 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 16 | |
| Main Machine Spec. | Size | mm | 11800*3750*3300 |
| Weight | Kg | 11500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
