| Place of Origin: | China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of quality |
| Model Number: | RiBo-2CR5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Machine and the preform feeding sysrem will be packed by the wooden pallet |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 PCS per Year |
| Condition: | New | Automatic: | Full Automatic High Speed Energy Saving Machine |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineer Is Available To Customer's Factory To Install And Debugge The Machine On Site ,providing The Training For Free |
| Blow Moulding Type: | PET Stretch Blow Molding Machine | Application: | Used For Water,oil,sauce Bottle |
| High Light: | 96kw Pet Bottle Moulding Machine,96kw 20 Liter Water Bottle Manufacturing Machine,6700kg Pet Bottle Moulding Machine |
||
Plastic Water Bottle PET Blow Moulding Machine for Sauce Bottle/20 Liter Water Bottle Making
Performance and Characteristics of PET blow moulding machine

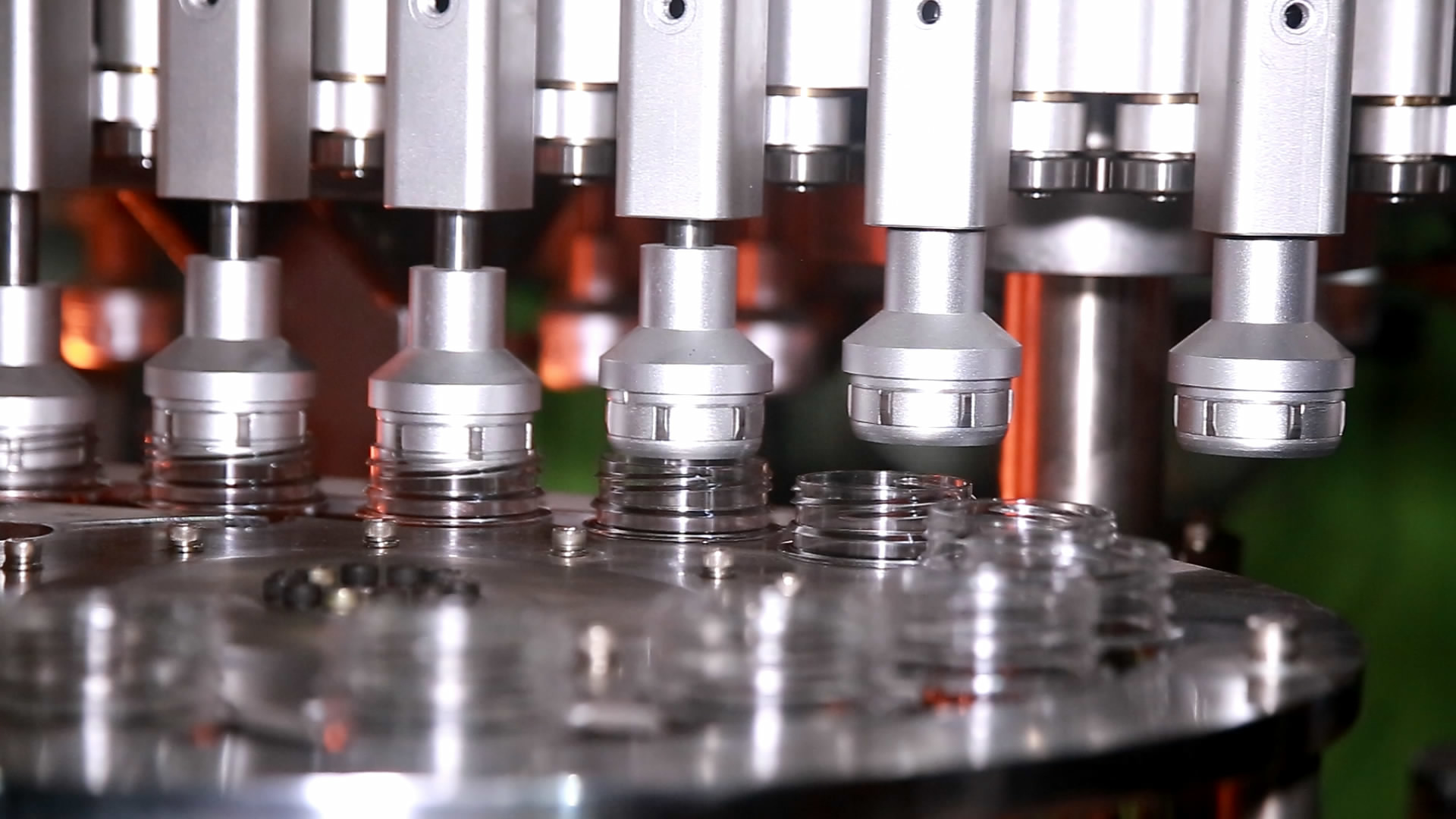

1．The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the process.
2. 63mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. High pressure blowing air recovery system saves up to 30% of HPC air.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10.This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Technical Parameter
| Items | Unit | Moldel | |
| RiBo-2CR5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 2 | |
| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 2400~2200 | |
| Power Spec. | Rated Power | KW | 96 |
| Power Consumption | KW | 38~50 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 8 | |
| Main Machine Spec. | Size | mm | 5800*3719*3600 |
| Weight | Kg | 6700 | |
| * Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
