Place of Origin: | China-mainland |
---|---|
Brand Name: | RIBO |
Certification: | Certificate of Quality |
Model Number: | RiBo-6RH1.5L |
Minimum Order Quantity: | 1 PC |
Price: | Negotiable |
Packaging Details: | Machine and the preform feeding system will be packed by wooden pallet |
Delivery Time: | 120 days |
Payment Terms: | T/T , L/C |
Supply Ability: | 100 PCS/Year |
Dimension: | 6843*3312*3200(mm) | Weight: | 8500Kg |
---|---|---|---|
Model: | RiBo-6RH1.5L | Volume: | 1.25L |
Theoretical Output: | 6000BPH | Mold Temperature: | 130-160℃ |
Preform Heating Pitch: | 38mm | Power Consumption: | 46~56 KW |
High Light: | 6000BPH Auto Blow Moulding Machine,Stretch Blow Molding Machine For Plastic Bottles,8500Kg Auto Blow Moulding Machine |

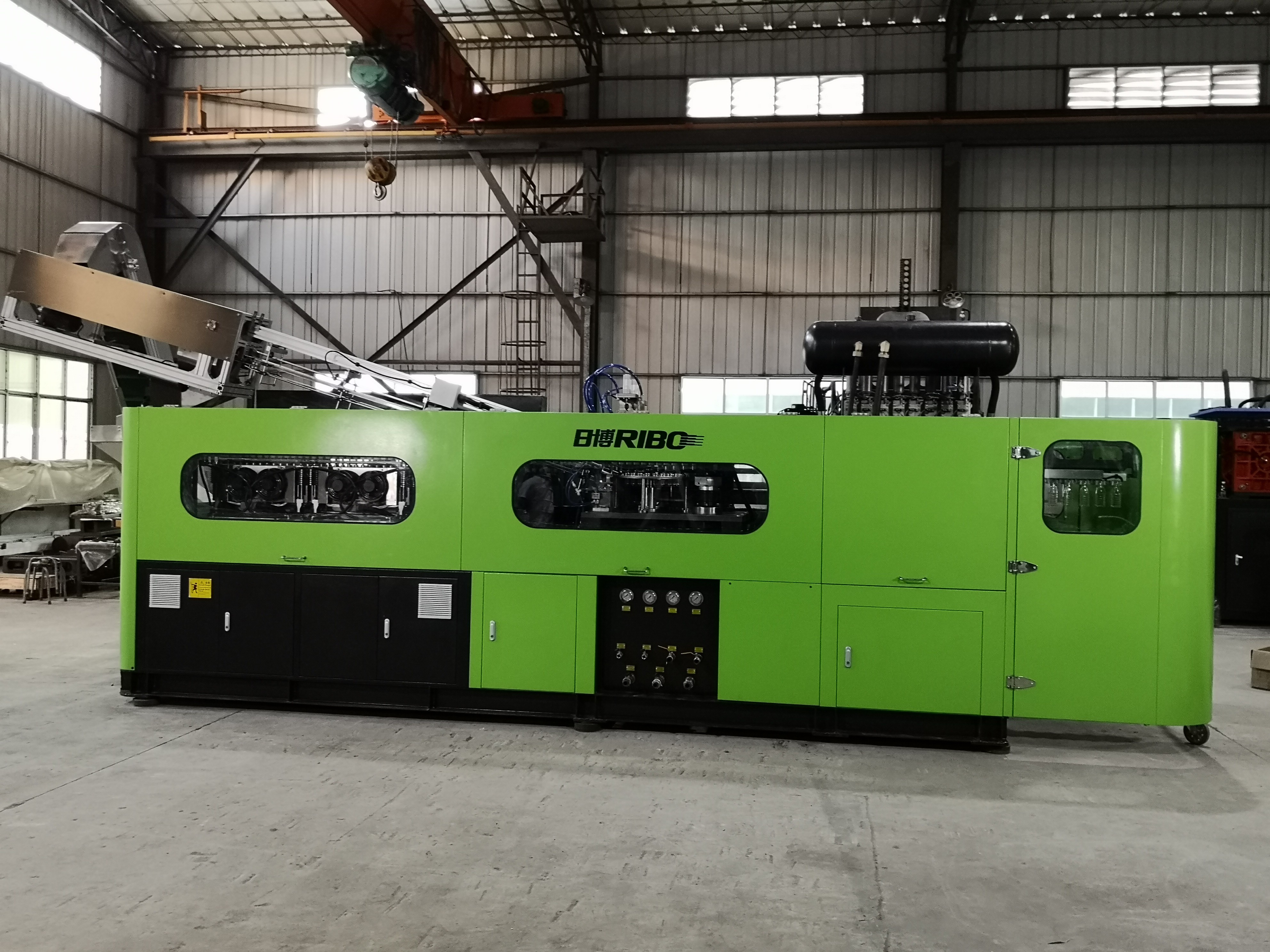

High Speed PET Stretch Blow Molding Machine , 1.25 Litre Bottle Blowing Machine
Technical Parameter
Item | Unit | Moldel | |
RiBo-6RH1.5L | |||
Molding Spec. | Preform Pitch | mm | 105 |
Preform Heating Pitch | mm | 38 | |
No.of Cav. | cav. | 6 | |
Container Spec. | Max.Container Volume | L | 1.25 |
Neck Diameter Range | mm | 18-30 | |
Max.Containr Diameter | mm | 87 | |
Max.Containr Height | mm | 320 | |
※※ Theoretical Output | BPH | 6000 | |
Power Spec. | Rated Power | KW | 132 |
Power Consumption | KW | 46~56 | |
Compressor Spec. | Blowing Pressure | Mpa | 2.6~3.2 |
Air Consuming | m³/min | 14 | |
Mold Temp.Controller | Temperature | °C | 130-160 |
Consumption | kcal/hr | 18600 | |
Main Machine Spec. | Size | mm | 6843*3312*3200 |
Weight | Kg | 8500 | |
Note: Due to continuous technical development specification would be improved without prior notice.
Special designs correspond to customers needs.
