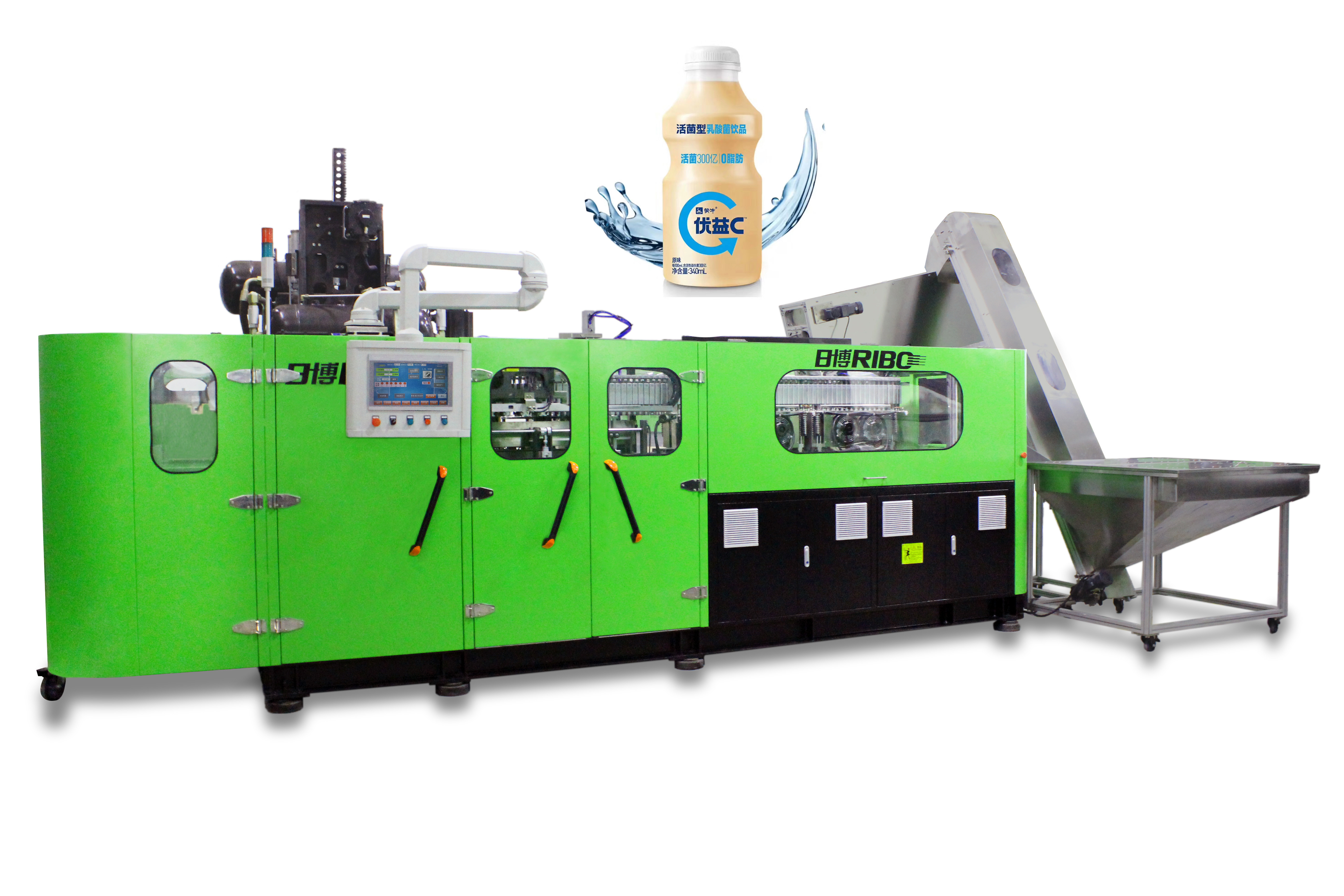

Easy Operation Fully Automatic Pet Blowing Machine 3 Phase 380V 50HZ

PET Milk Drink Bottle / Water Bottle High Speed Blow Moulding Machine Made In China

Performance and Advantages

i.The man-machine interface is easy to operate. Everything is computerized, including temperature adjustment and preform

  distribution.

ii.Independent movable operation pannel, make the operation more convenient and flexible.

iii.Preform unscrambling, loading, bottle handling and ordering are all operated by stainless steel manipulator automatically

without a second contamination.

iv.During the process of the automatic embryo preform feeding system, each preform channel has photoelectric detection,

control the action of the upper motor and the parting cylinder, ensure the uniform distribution of the preform in each embryo

channel, and have the function of alarming the material shortage.

v. The circulating chilling water system as well as the fan with converter controlled can protect the bottle neck against

deformation when the preform is being heated.

vi. The homothermal heater adopts auto reflection and closed loop adjusting system which have the power supplied constantly

in proportion, not affected by the fluctuation of voltage. The conveying chain is short pitched and paratactic, which helps to

realize slow heating and low power consumption. As a result, the preform can be heated evenly and easy to blow.

vii. The positioned installation of molds makes it possible to change molds easily within one hour,the operator only need to

stand on the ground can finish this job, no need to stand on the machine frame,the safety for person is much higher.

viii. All the critical parts we use for the machines, such as the electrical, pneumatic components, servo motor, etc, are famous

branded parts imported from Japan, USA and Europe,which ensures the stability and long life of our equipments.

ix.The high pressure blowing valve is equipped with the device of converting to low pressure air, which can ensure the normal

conversion without low pressure air. Machine is equipped with the high pressure air recovery device, in the process of bottle

blowing production, the high pressure air can be recoveried and used for the cylinders/ pre-blow.

Easy Maintenance

Omron servo controller system (motion controller, modular) is connected with the machine via particular communicating

cables.The user can manage all the actions of the machine through the motion controller. Once the machine has a fault, the

man-machine interface will provide warning signals and fault diagnosis report to the operator, the operator can quickly find the

cause of the fault and troubleshoot as soon as possible through the fault display.

★ If the bottle is blocked/full in the air conveyor, the function of automatic stop feeding preforms can be set in the program

through photoelectric detection.

★ If the machine after blowing machine stops working for too long time, the heating lamp can be set with the function of

automatically reducing temperature, saving electricity consumption and avoid the excessive temperature in the heating seat.

(Temperature setting is set in touch screen)
