Place of Origin: | Guangzhou , China |
---|---|
Brand Name: | RiBo |
Model Number: | RiBo-2CR20L |
Minimum Order Quantity: | 1 PC |
Price: | Negotiable |
Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
Delivery Time: | 120 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 60 PCS/year |
Condition: | New | Voltage: | 3 Phase, 380V/50HZ, Customized |
---|---|---|---|
Dimension(l*w*h): | 8500mm*3900mm*3700mm | Warranty: | 1 Year |
Blow Moulding Type: | Stretch Blow Moulding | Application: | Bottle,5 Gallon,20L/10L Water Bottle |
Plastic Processed: | PET | Power(w): | 50~85KW/H |
Automatic: | Yes | Weight: | 9800KG |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support,Field Installation | Capacity: | 1200-1000BPH |
Product Name: | Automatic Blowing Molding Machine | Cavity: | 2 Cavity |
Year: | 2020 | Use: | Making PET Bottle,water Bottle |
Max.volume: | 20L | Max.neck Diameter: | 72mm |
Support Ring Diameter: | 88mm | Max.bottle Diameter: | 310mm |
Max.bottle Height: | 520mm | Air Consuming: | 12m3/min/40kg |
High Light: | 5 Gallon Bottle Blowing Machine 1200BPH,5 Gallon Bottle Blowing Machine 1000BPH,Servo 2 cavity pet blowing machine |

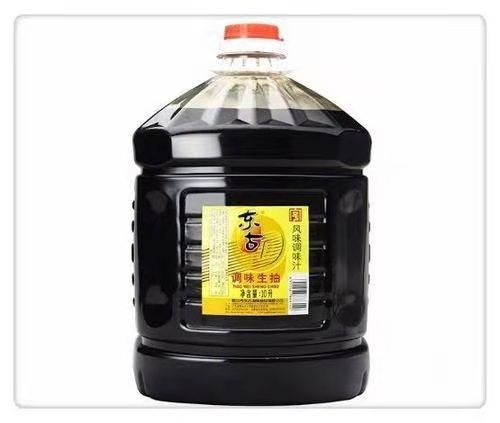

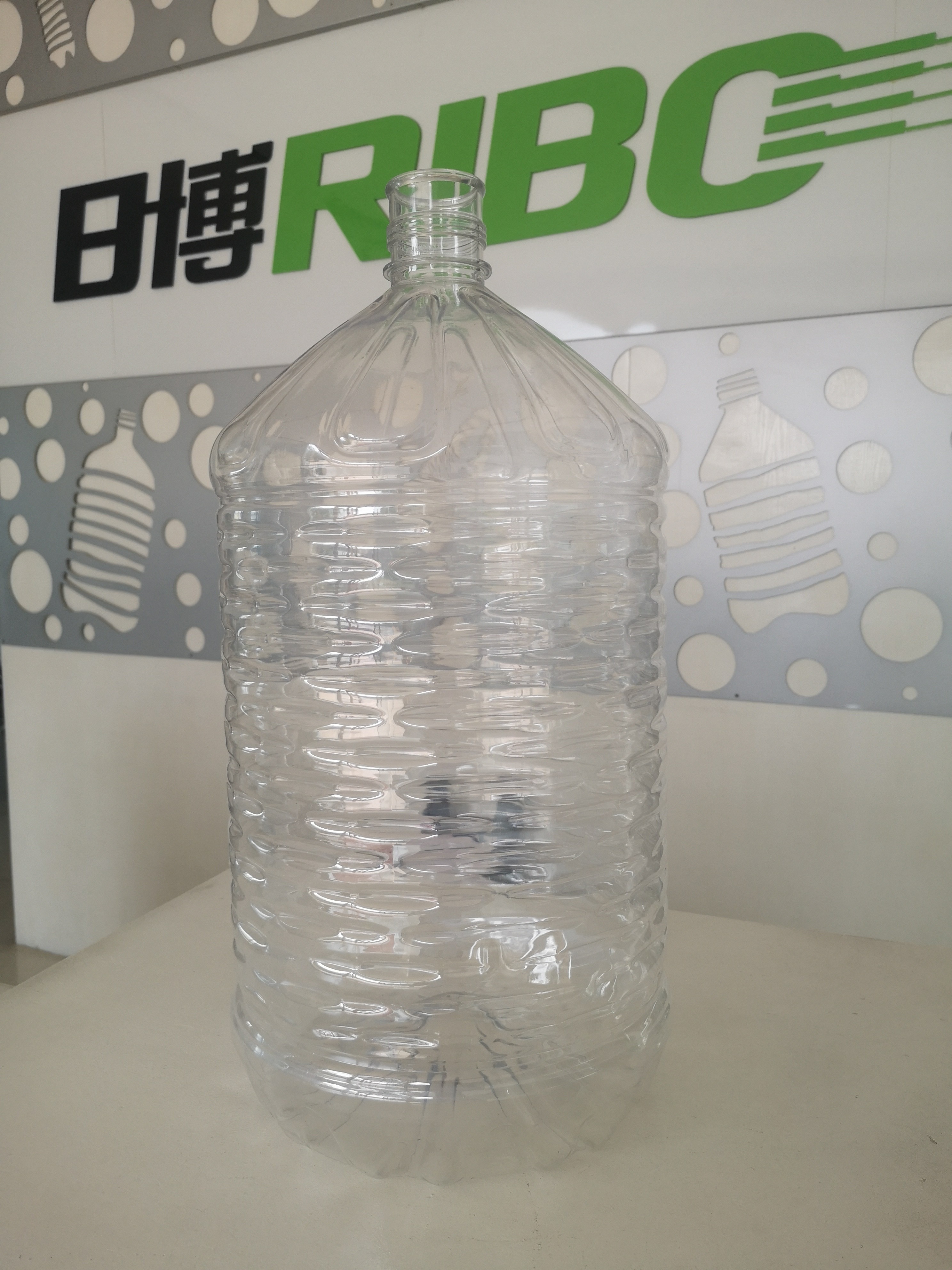

5 Gallon Water Bottle / Sauce Bottle Moulding Machine in PET Materials
Product Description
This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position
streamlines the process.
2. Continuous heating system, more preforms are uninterruptedly heated within the same distance, which improves the
efficiency and energy saving.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high
speed and accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed
precision blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and
blowing.
7. High pressure blowing air recovery system saves up to 30% of HPC air.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
Technical Parameter
Items | Unit | Model | |
RiBo-2CR20L | |||
Molding Spec. | Preform Pitch | mm | 325 |
Preform Heating Pitch | mm | 96 | |
No.of Cav. | cav. | 2 | |
Container Spec. |
Max.Container Volume | L | 20 |
Neck Diameter Range | mm | 72 | |
Support ring diameter | mm | 88 | |
Max.Containr Diameter | mm | 310 | |
Max.Containr Height | mm | 520 | |
※※ Theoretical Output | bph | 1200 | |
Power Spec. | Rateed Power | KW | 168 |
Power Consumption | KW | 50~85 | |
Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
Air Consuming | m³/min | 12 | |
Main Machine Spec. | Size | mm | 8500*3900*3700 |
Weight | Kg | 9800 | |
Note: Due to continuous technical development specification would be improved without prior notice. | |||
Special designs correspond to customers needs. |

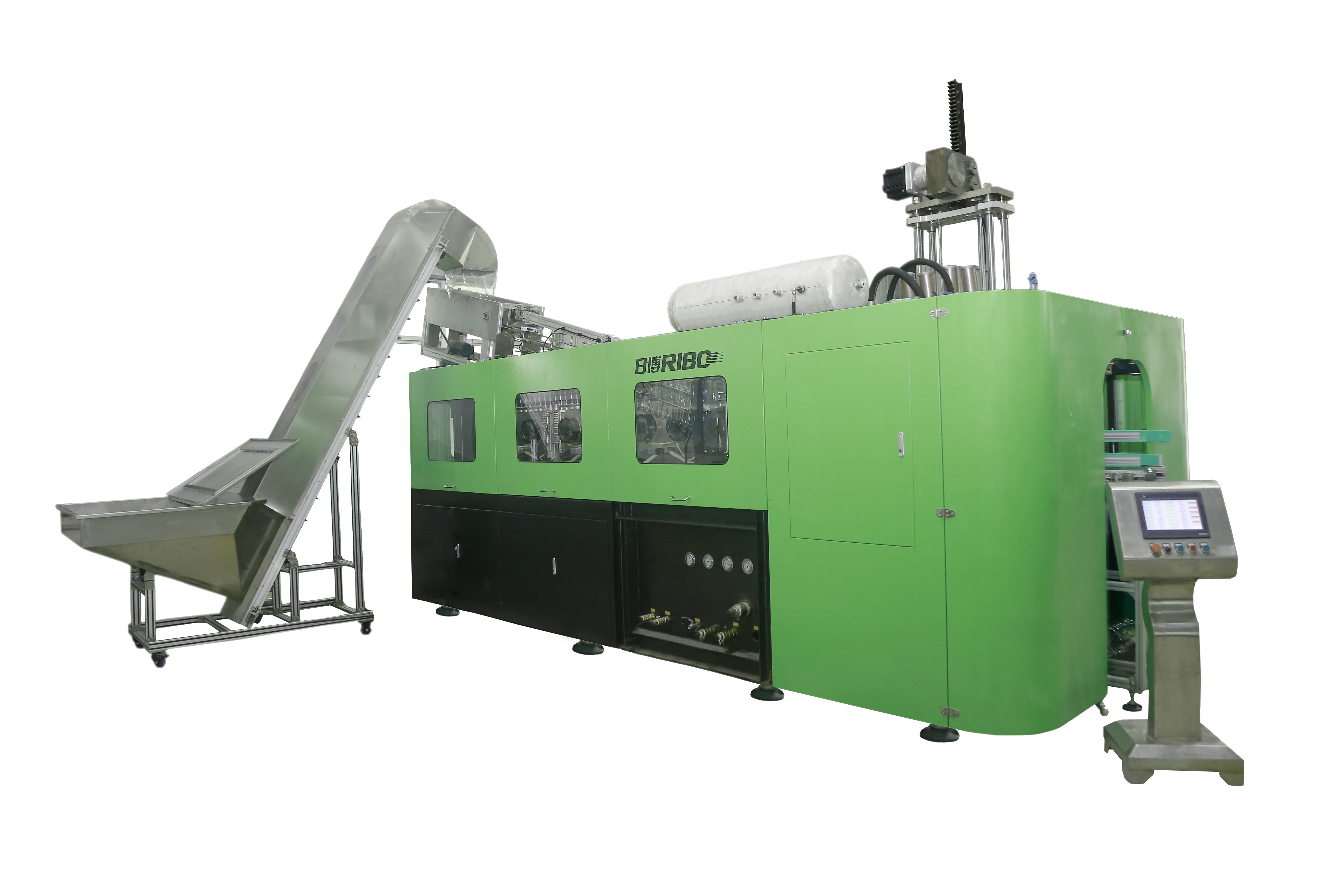

Parts of Machine
