| Place of Origin: | Guang Zhou China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |
| Model Number: | RiBo-8CR48-1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallets |
| Delivery Time: | 120 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 PCS/Year |
| Blow Molding Type: | Stretch Blow Molding | Plastic Processed: | PET |
|---|---|---|---|
| Application: | Bottle , 1.5-2.5L Water Bottle , Beverage Bottle / Oil Bottle / Shampoo Bottle | High Efficient: | Output 16000~9600 BPH |
| Energy Consumption: | Saving Energy Can Be Up To 40% | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
| High Light: | 9600BPH Stretch Blow Molding Machine,1.5L Stretch Blow Molding Machine,1.5L pet stretch blow molding machine |
||
Fully Automatic PET Stretch Blow Moulding Machine , Water Bottle Moulding Machine for 1.5 L Bottle
Performance and Characteristics

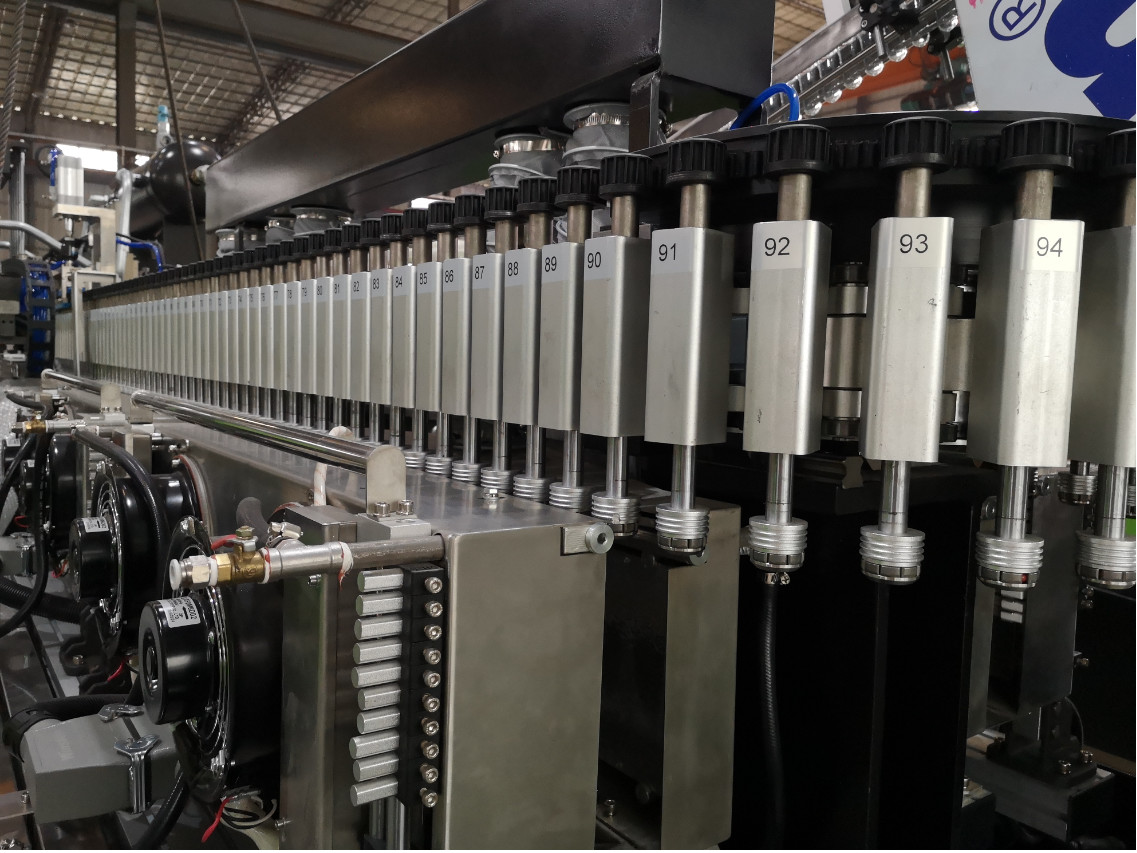

1. The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the process.
2. 48mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving (energy
saving can be up to 40%).
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders
make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and
accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve
unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve the energy-
efficient and environmental safe.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well
as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10. This series is applied in making PET bottle for drinking water, beverages,liquid milk drinks……ect.
Technical parameter
| Items | Unit | Model | |
| RiBo-8CR48-1.5L | |||
| Molding Spec. | Preform Pitch | mm | 96 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 90 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 16000~9600 | |
| Power Spec. | Rated Power | KW | 142 |
| Power Consumption | KW | 43~66 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
| Air Consuming | m3/min | 10 | |
| Main Machine Spec. | Size | mm | 7300*4800*3300 |
| Weight | Kg | 9200 | |
Note:*Due to continuous technical development specification would be improved without prior notice.
*Special designs correspond to customers needs.
About Us:
Guangzhou Ribo Plastic Packing Machinery Co,Ltd is a high-tech enterprise specialized in developing and manufacturing two-step electric high speed linear PET bottle blowing machine.We manufacture parts by establishing the internal research and development projects,adopting 3D design software,modular and molding design concept,using CNC machining centers.Meanwhile,the ERP system is adopted to built a strict and standardized monitoring system as well as the data tracking and analysis system for development,production and quality inspection.We have developed the high efficient energy saving and intelligent machines,where the main parts and components of the high-quality brands from European and American countries are used.With years experience,we always focus on the cultivation and introduction of enterprise technicians.Additionally we work closely with many scientific research institutes,professors and doctors to timely grasp the technical trends of the industry,ensuring our machines always advanced and creative in the field.Till now we have attained a number of patents.
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
