| Place of Origin: | Made in China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-10CR600 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 12 PCS/Month |
| Condition: | New | Voltage: | Customized |
|---|---|---|---|
| Power(w): | 123KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Free Spare Parts,Online Support,Field Maintenance And Repair Service |
| Warranty: | 12 Months | Automatic: | Full Automatic |
| Blow Moulding Type: | Blow Moulding Machine | Product Name: | Automatic Blowing Molding Machine,Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine |
| Capacity: | 20000BPH | Cavity: | 10 Cavities |
| Suitable Bottle: | 200-600ml Bottle,Water Drinking Bottle | Used For: | Making PET Bottle |
| Max.bottle Volume: | 600ml | Cavity Pitch: | 76mm |
| Preform Heating Pitch: | 38mm | Max.neck Diameter: | 30mm |
| Max.bottle Diameter: | 70mm | Max.bottle Height: | 320mm |
| Highlight: | CSD Bottle Pet Blow Machine,20000BPH Blow Molding Equipment,20000BPH Pet Blow Machine |
||

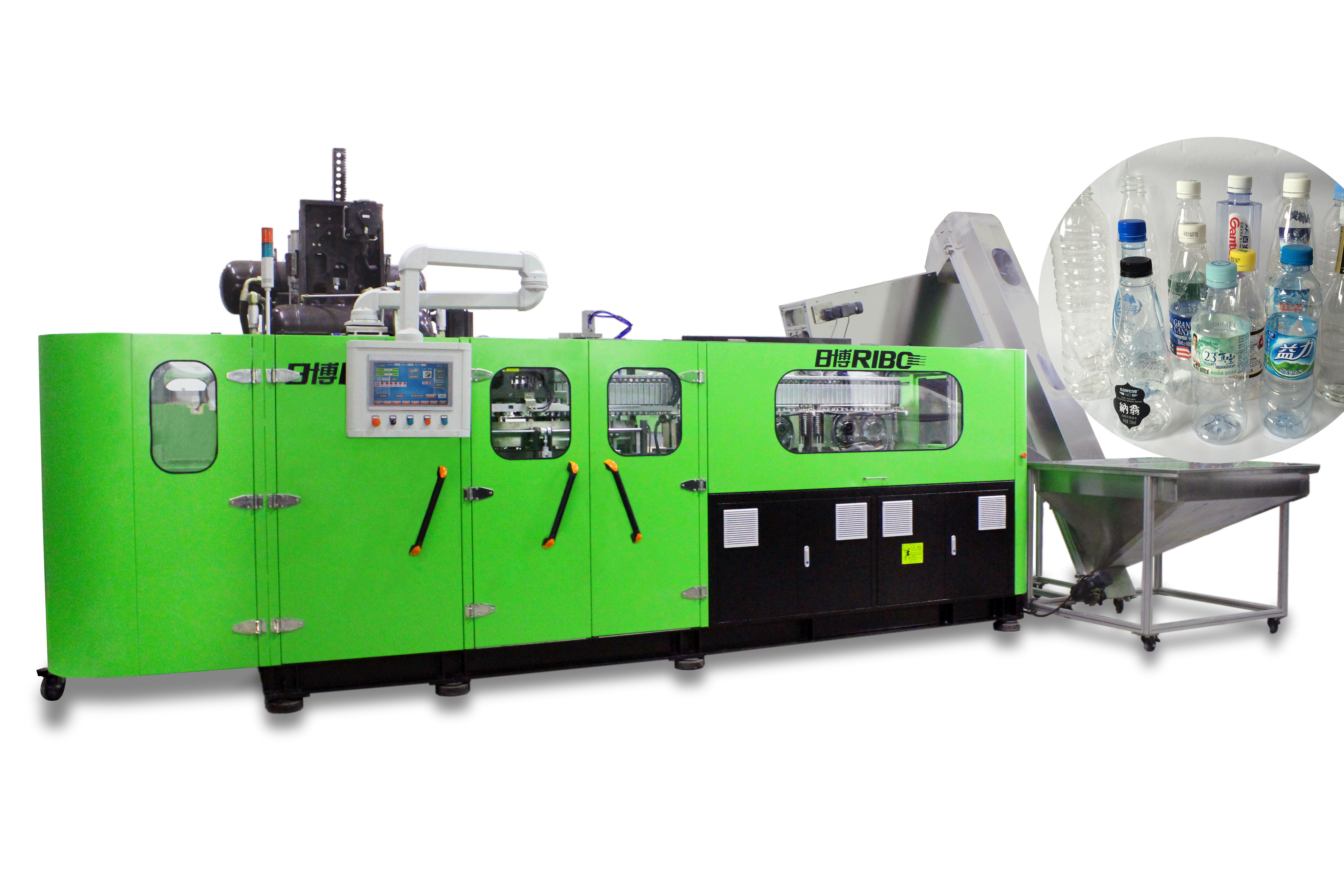

Small Water Bottle / CSD Bottle Bottle Stretch Blow Molding Machine
Performance and Features of Machine
1.The built-in continuous rotating infeed system effectively makes the machine space occupied smaller.
2. Smaller preform heating pitched, more preforms are uninterruptedly heated within the same distance, which improves the
efficiency and energy saving (energy saving can be up to 50%).Non-stop preform heating structure makes the preform heated
more evenly.
3. Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high
speed and accurate preform handling between the two mechanism.
5. The application of high speedprecision blowing valve unit helps to make high capacity.The Servo driven the molding
mechanism, triggering off the linkage to the bottom mold.
6. The cooling system (water cooling and air cooling used at the same time) for the preform neck is equipped to ensure the
preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve
the energy-efficient and environmental safe.High pressure blowing air recovery system saves up to 30% of HPC air.
8.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
9. The machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
10. Operation on the touch screen is simple and easy.

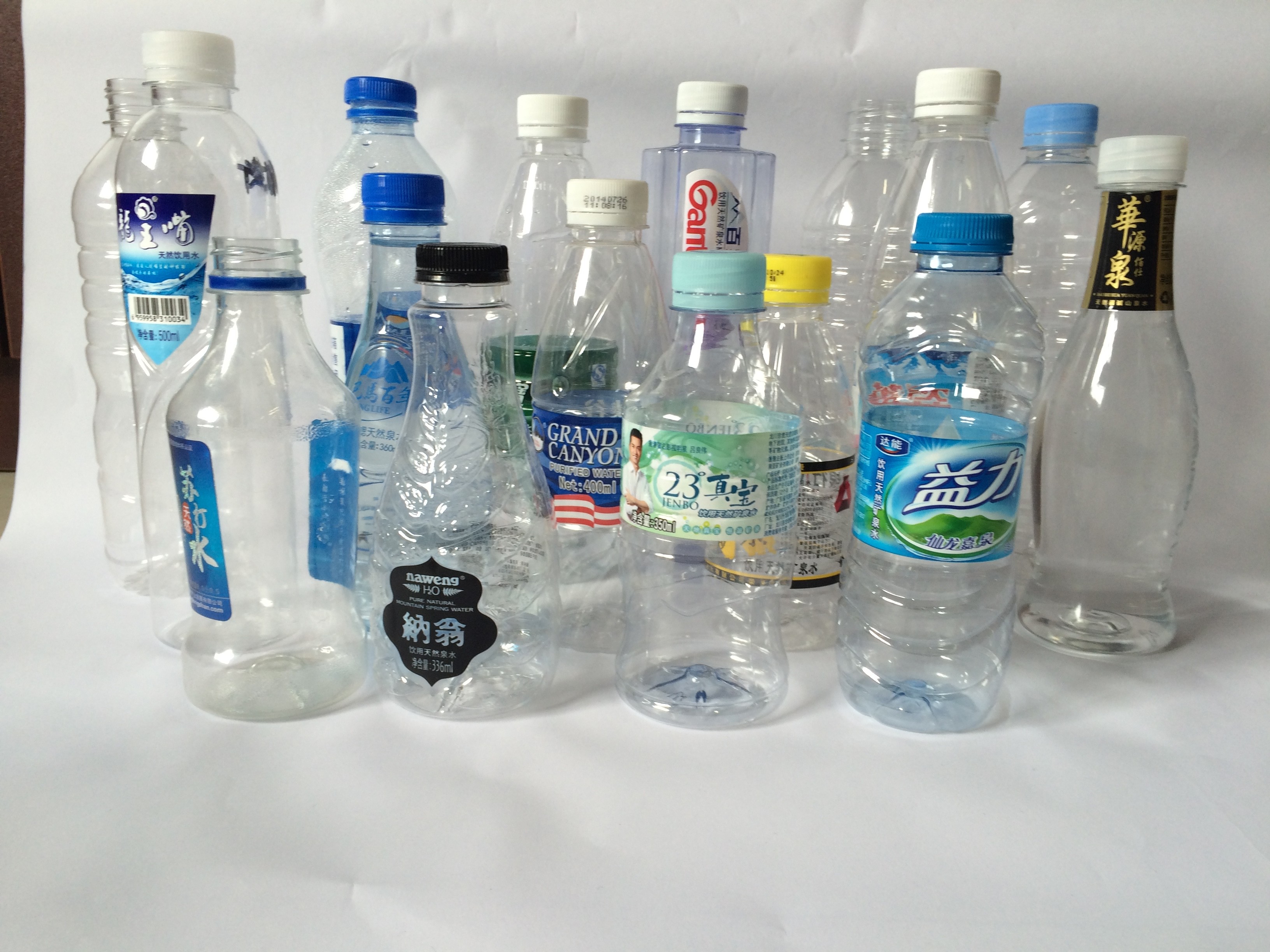

This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk,
edible oil, food, daily chemical……ect.
The mould clamping structure in the machine
Machine Technical Parameter
| Items | Unit | Model | |
| RiBo-10CR600 | |||
| Molding Spec. | Preform Pitch | mm | 76 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 10 | |
| Container Spec. | Max.Container Volume | L | 0.7 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 20000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 46~56 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 10 | |
| Main Machine Spec. | Size | mm | 7479*3408*3200 |
| Weight | Kg | 9500 | |
| Note*Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
Machine shipment pictures
