| Place of Origin: | Guangdong , China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-8CR1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 90~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 PCS/Month |
| Power(w): | 147KW | Blow Moulding Type: | PET Bottle Making Machine |
|---|---|---|---|
| Product Name: | Automatic Blowing Molding Machine | Capacity: | 16000~12000BPH |
| Cavity: | 8 Cavities | Suitable Bottle: | 200-1500ml Bottle,Water Drinking Bottle |
| Used For: | Making PET Bottle | Max.bottle Volume: | 1500ml |
| Cavity Pitch: | 98mm | Preform Heating Pitch: | 38mm |
| Max.neck Diameter: | 30mm | Max.bottle Diameter: | 92mm |
| Max.bottle Height: | 320mm | Power: | 147 KW |
| Power Consumption: | 48~68KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Highlight: | Mineral Water Bottle Making Machine 147KW,Mineral Water Bottle Making Machine 16000BPH,147KW Mineral Water Bottle Machine |
||

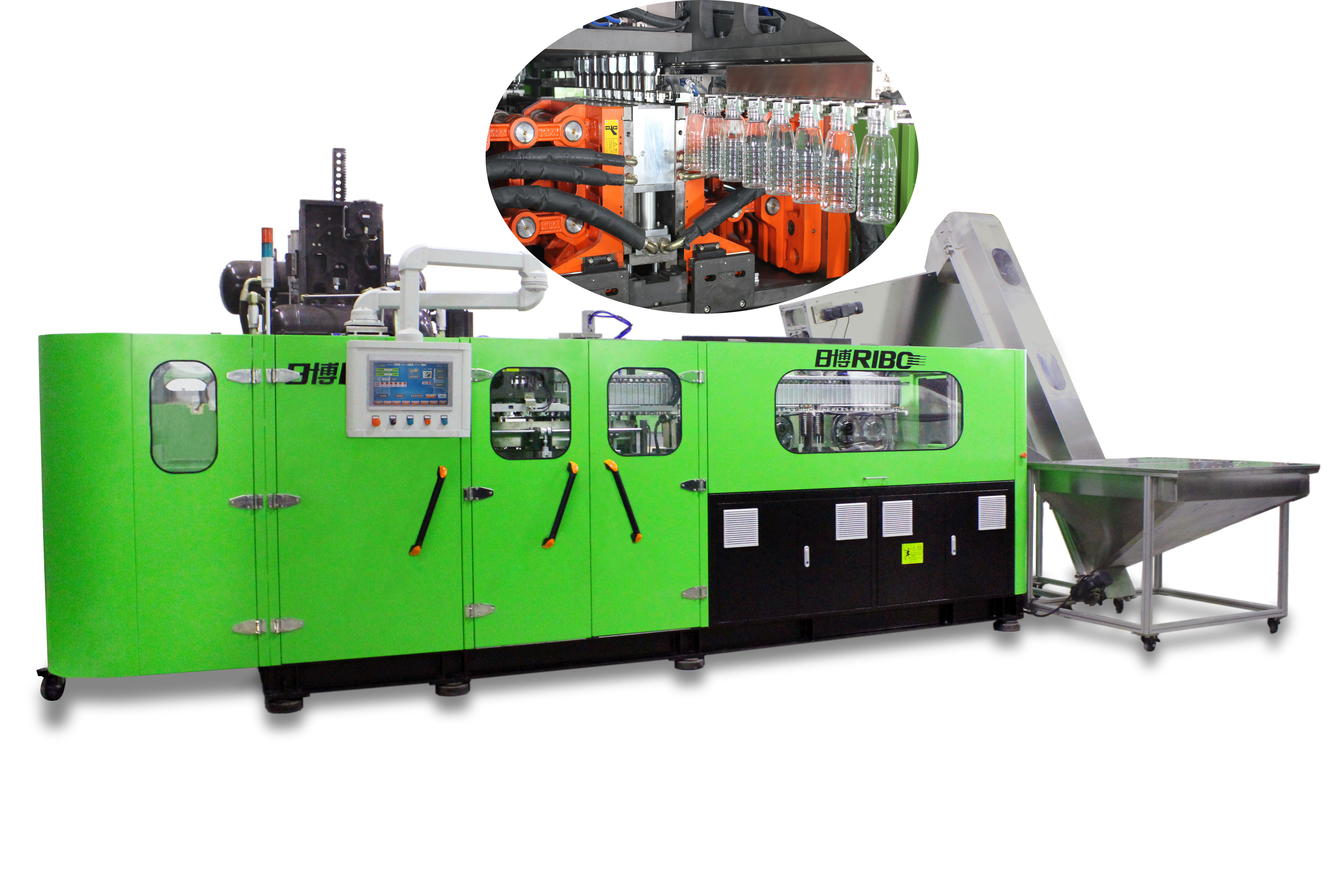

Bottle Blow Moulding Machine / Stretch Blow Molding Machine for Mineral Water Bottle

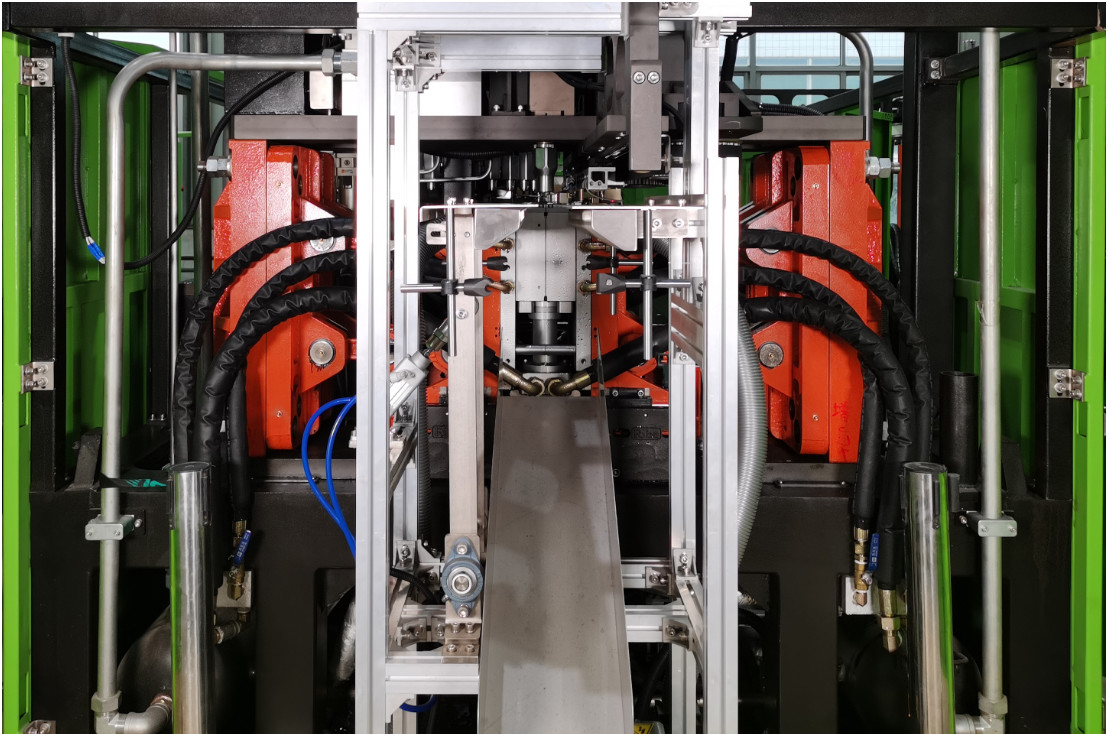

The mould movement mechanism

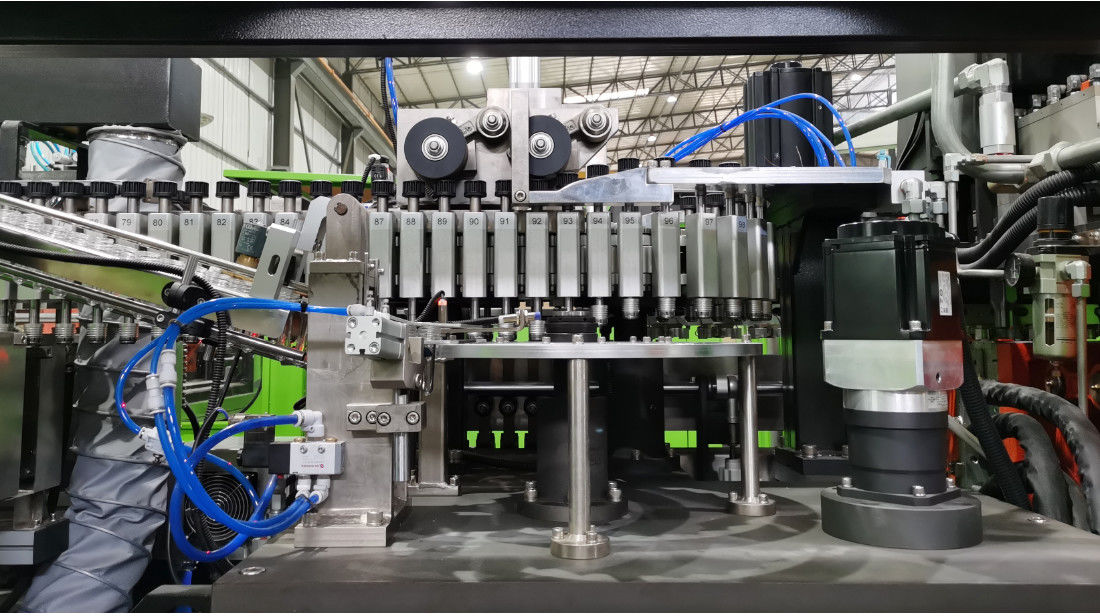

The preform feeding and preform heating holders transfer mechanism
The perform after heated / variable pitch mechanism
Preform transfer system with the grippers and bottle out-feed mechanism
Machine Technical Parameter
| Items | Unit | Model | |
| RiBo-8CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 98 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 92 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 16000~12000 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | 48~68 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8~10 | |
| Main Machine Spec. | Size | mm | 7690x3270x3000 |
| Weight | Kg | 8500 | |
| Note:*Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
