| Place of Origin: | Guang Zhou China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |

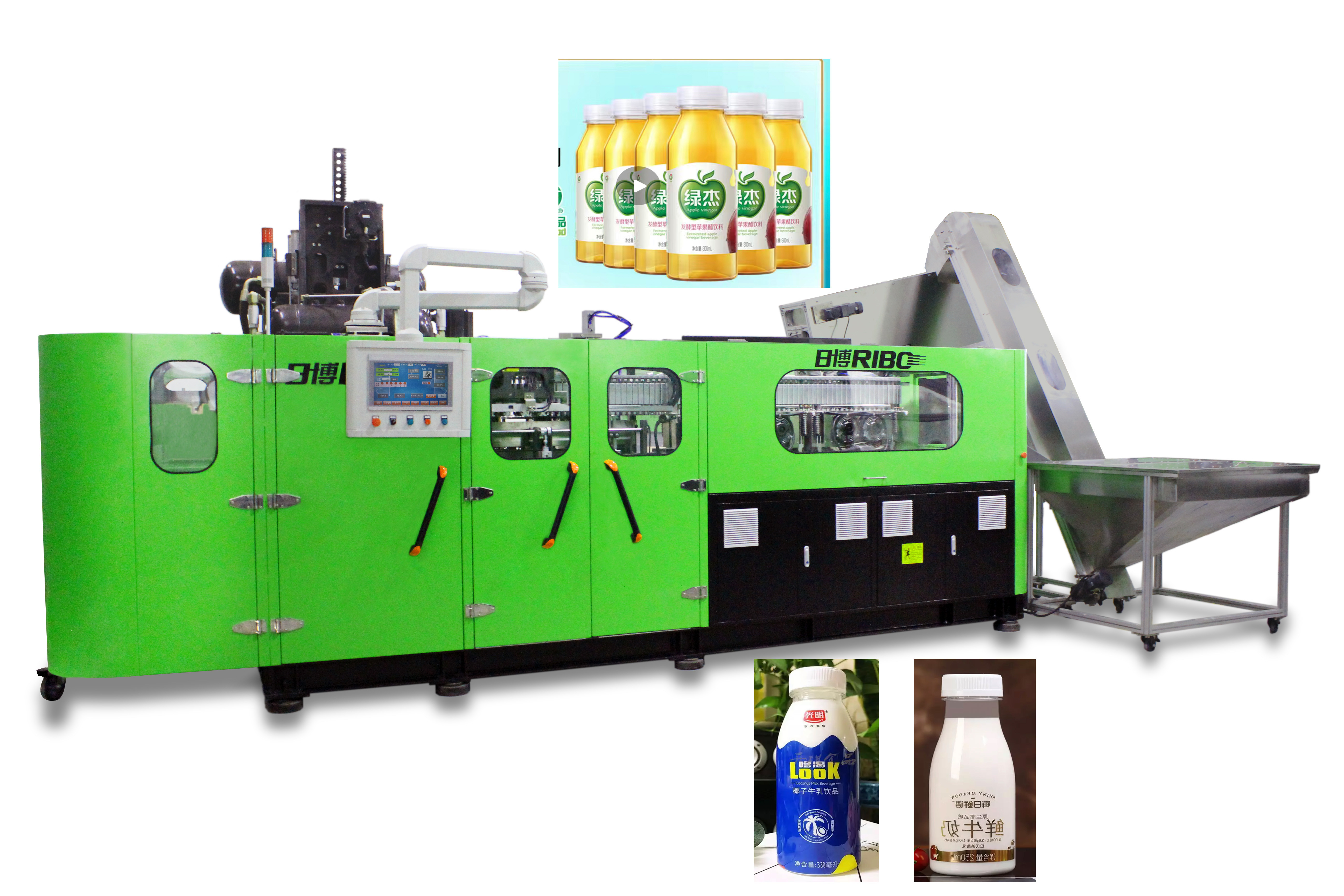

| Model Number: | RiBo-6CR48-1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallets |
| Delivery Time: | 120 Days |
| Payment Terms: | T/T |
| Supply Ability: | 100 PCS/Year |
| Blow Molding Type Stretch Blow Molding: | Stretch Blow Molding | Plastic Processed: | PET |
|---|---|---|---|
| Application: | Bottle , 1.5-2.5L Water Bottle , Beverage Bottle / Oil Bottle / Shampoo Bottle | High Efficient: | Output 12000-9000 BPH |
| Energy Consumption: | Saving Energy Can Be Up To 40% | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
| High Light: | PET Milk Water Bottle Moulding Machine,Water Bottle Moulding Machine 12000 BPH,PET Bottle Moulding Machine 9000 BPH |
||
| Items | Unit | Model | |
| RiBo-6CR48-1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 97 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 12000~9000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 45~58 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
| Air Consuming | m3/min | 6~8 | |
| Main Machine Spec. | Size | mm | 7643x3312x3250 |
| Weight | Kg | 7800 | |
*Due to continuous technical development specification would be improved without prior notice.
*Special designs correspond to customers needs.
