| Place of Origin: | Guangzhou , China |
|---|---|
| Brand Name: | RIBO |
| Model Number: | RiBo-9CR1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallet |
| Delivery Time: | 120 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 PCS/Year |
| Voltage: | Standard 3 Phase 380V/50HZ , Can Be Customized | Application: | Widely Used For Making PET Bottle For Drinking Water , CSD Soft Drink,milk , Edible Oil , Ect . |
|---|---|---|---|
| Blow Moulding Type: | Two Step PET Stretch Blow Moulding Machine | Product Name: | High Speed Blowing Machine |
| Capacity: | 18000~135000BPH | Key Words: | Energy Saving Machine |
| Bottle Volume: | 0.2~1.5L | Neck Diameter Range: | 18~38 Mm |
| High Light: | 0.2L Automatic Pet Blow Molding Machine,1.5L Automatic Pet Blow Molding Machine,135000BPH Pet Bottle Blow Molding Machine |
||

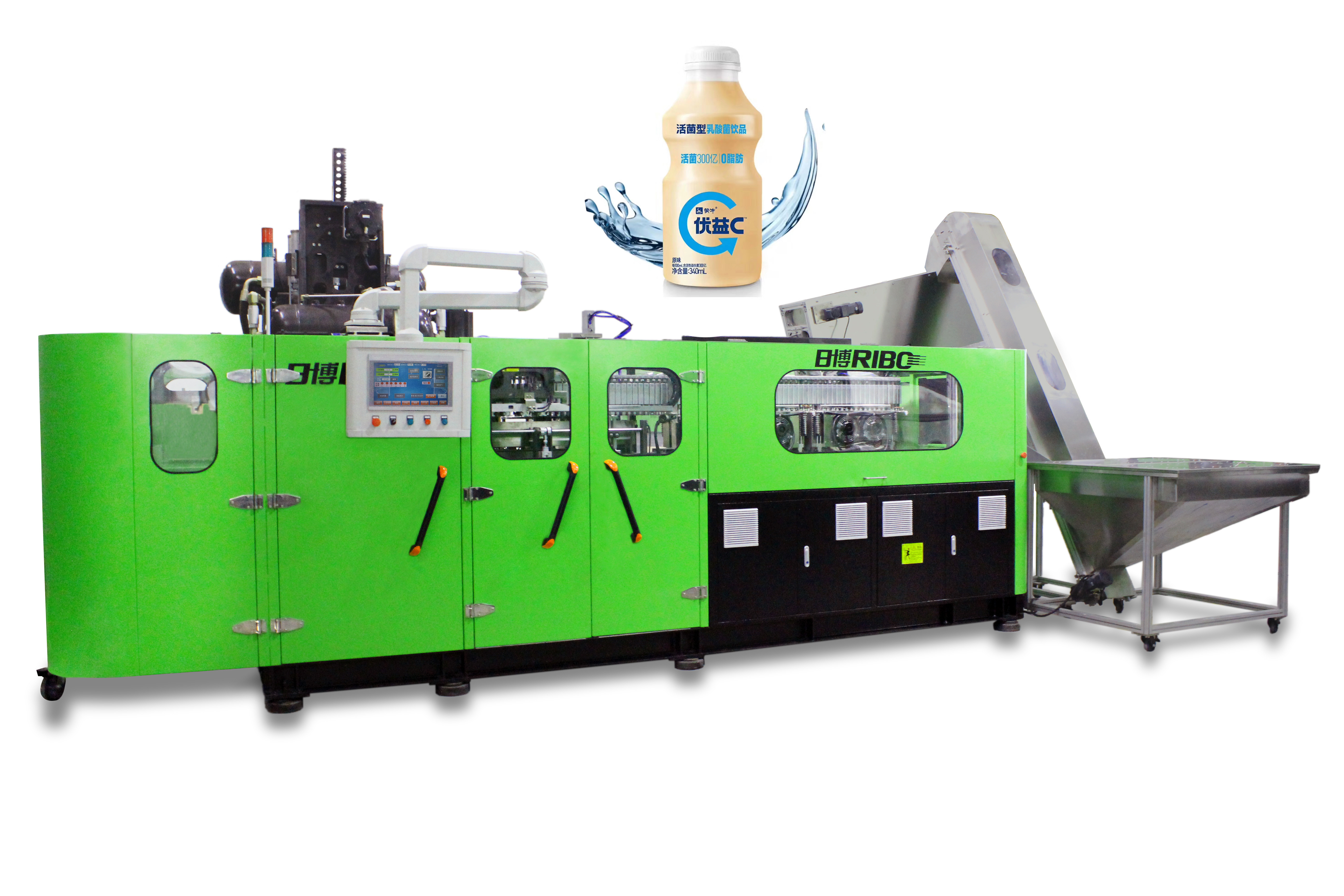

PET Water Bottle / CSD Drinks Bottle Automatic Blow Moulding Machine Made In China
1 . Full automatic blow moulding machine is suitable for making PET Plastic containers.
2 . It can blow all kind of bottles in shapes:mineral water , carbonated bottle , milk drink bottle , edible oil bottle , and other
packing containers.
3 . Saving the cost to the maximum extent , saving the electricity consumption up to 50 %.
4 . Rejection rate is controlled within 0.3% , higher production , and stable performance then the traditional structure
type,moreover,the machine running more smoothly and intelligently.
PET Water Bottle / CSD Drinks Bottle Stretch blowing Machine Technical Parameters
| Items | Unit | Model | |
| RiBo-9CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 9 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 97 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 18000~13500 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | 48~68 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8~10 | |
| Main Machine Spec. | Size | mm | 7869*3400*3200 |
| Weight | Kg | 10500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
