| Place of Origin: | Guangdong , China |
|---|---|
| Brand Name: | RIBO |
| Model Number: | RiBo-6CR48-1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system are packed by the wooden pallet |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 PCS/Year |
| Blow Moulding Type: | Stretch Blow Moulding | Application: | Bottle,Mineral Water Bottle |
|---|---|---|---|
| Plastic Processed: | PET | Capacity: | 800bph For 500ml PET Bottle |
| Product Name: | 2600pcs Per Hour Water Bottle Making Machine / PET Blowing Machine | Material: | PET |
| Bottle Volume: | 2L,200ml To 2000ml | Output: | 12000~8000BPH |
| Max.Container Diameter: | 97mm | Max.Container Height: | 320mm |
| Cavity Pitch: | 105mm | Preform Heating Pitch: | 48mm |
| High Light: | 105mm Pet Bottle Blow Molding Machine,8000BPH Pet Bottle Blow Molding Machine,Pet Blow Molding Machine Multi Capacity |
||

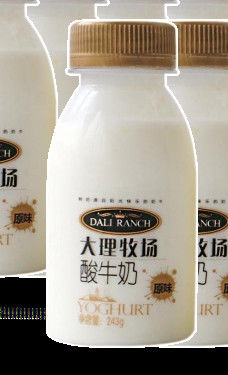

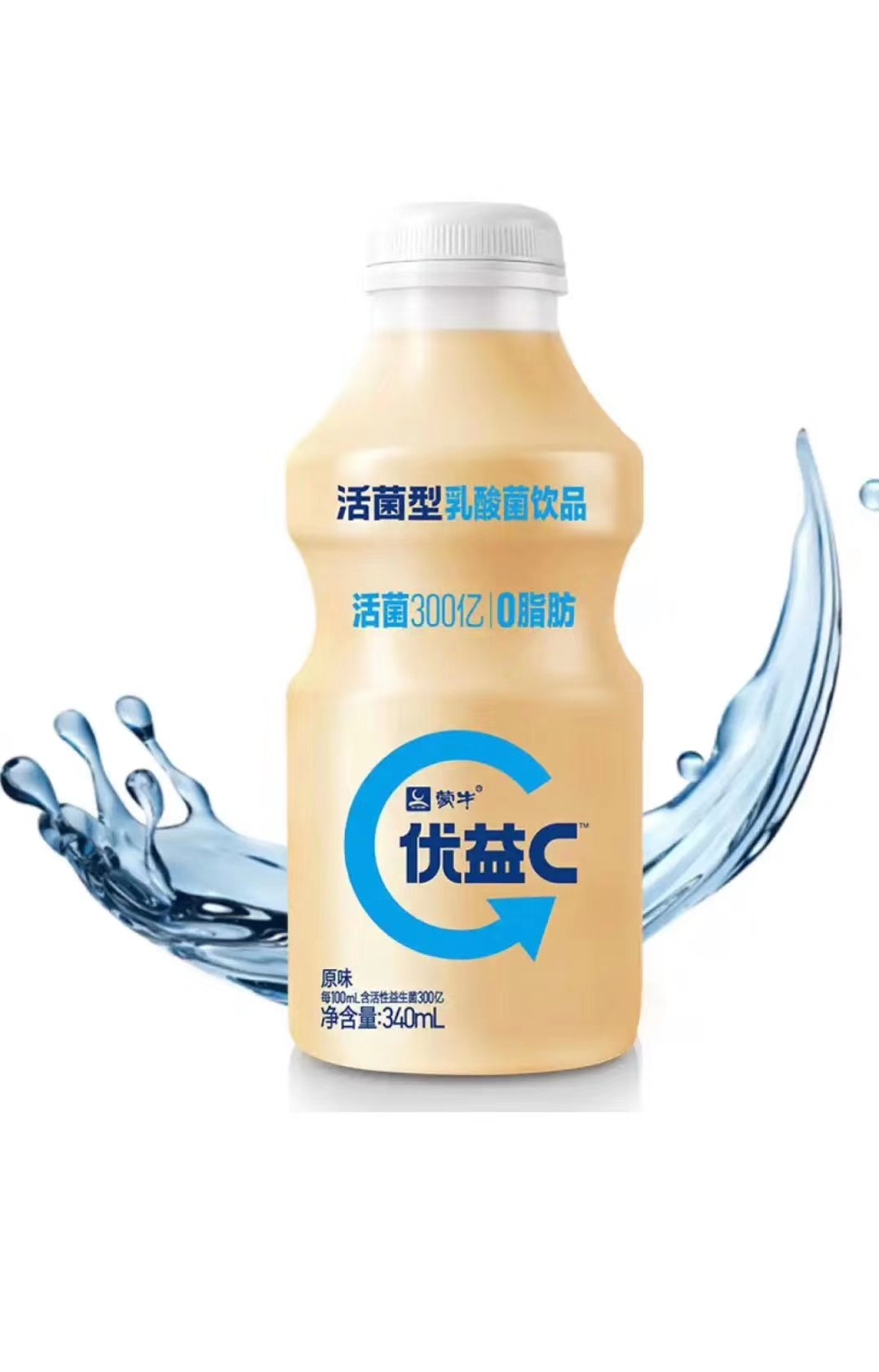

38mm Neck Size Beverage Bottle / Juice / Milk Drink PET Blow Moulding Machine

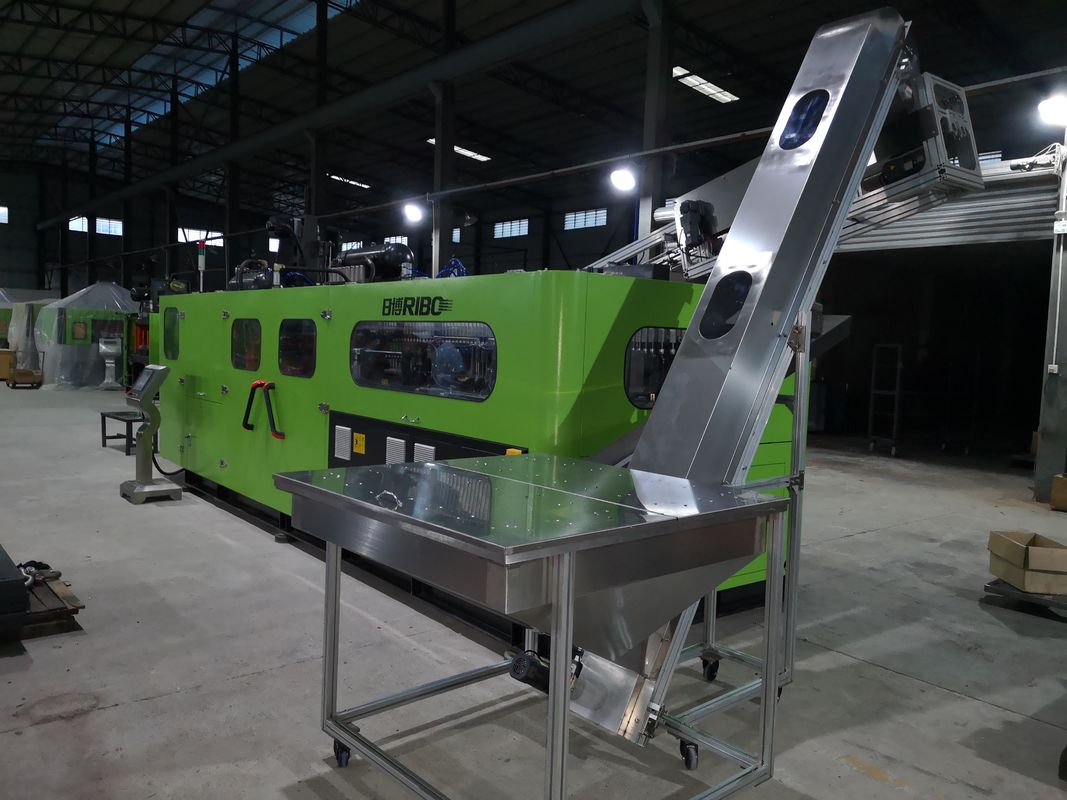

R series linear full electric PET bottle blow molding machine is a high speed automatic PET blower designed and developed with
the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable, simple,
general purposed and environmental safe. It is mainly applicable in blow molding PET containers for water, beverage, juice, etc.
The machine yields abundantly with high efficiency. The capacity of each cavity has been increased to 2000bph when the bottle
size is equal to or less than 0.55L respectively, which can meet the high-end customer's requirements. Equipped with preform
auto loading system, the machine works fully automatically with consistent performance and high speed, without any operator's
interference during the whole processes. Accordingly, chance of contamination can be reduced manifestly, which assures the
quality of products.
The application of the full closed-loop voltage regulator in preform heating system:
The temperature of the heating ovens are controlled by the full closed-loop voltage regulator (with feedback) which
independently developed by RiBo company. The controller detects and adjusts the output voltage (set value) at the scanning
frequency of 218 times per second, so as to achieve the effect of evenly voltage output and solve the problem of unstable
heating effect caused by the heat fluctuation of heating element (lamps) due to the voltage fluctuation of the power supply. In
addition, the closed-loop control system interacts and cooperates with the original heating ovens’ constant temperature control
system, greatly improving the heating temperature fluctuation caused by environmental temperature change. By application of
the above technology in the bottle blowing machine, the heating uniformity and stability of each preform tend to be completely
consistent, which finally ensures the stability and uniformity of the bottle blowing effect of each cavity. This closed-loop unit has
further improved the overall performance of the bottle blowing equipment.
Technical Parameter
| Items | Unit | Model | |
| RiBo-6CR48-1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 97 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 12000~9000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 45~58 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
| Air Consuming | m3/min | 6~8 | |
| Main Machine Spec. | Size | mm | 7643x3312x3250 |
| Weight | Kg | 7800 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
