| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-8RH600 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 PCS/Year |
| Cavity Pitch: | 96mm | Preform Heating Pitch: | 38mm |
|---|---|---|---|
| No.of Cav.: | 8 | Max.bottle Volume: | 600ml |
| Neck Diameter Range: | 18~30mm | Max.bottle Diameter: | 78mm |
| Max.container Height: | 320mm | Theoretical Output: | 8000BPH |
| Rated Power: | 147KW | Power Consumption: | 48~62KW |
| Blow Pressure: | 2.6~3.2Mpa | Air Consuming: | 16m³/min |
| Warranty: | 1 Year | After Sales Service: | Technicians Can Be Sent To The Site For Installation And Commissioning |
| Machine Type: | PET Stretching Bottle Blowing Machine | Used For: | Making PET Bottle |
| Name: | Plastic Bottle Making Machine | ||
| Highlight: | PET Bottle Making Machine 8000BPH,PET Bottle Making Machine 16m³/Min,plastic bottle making machine 16m³/Min |
||

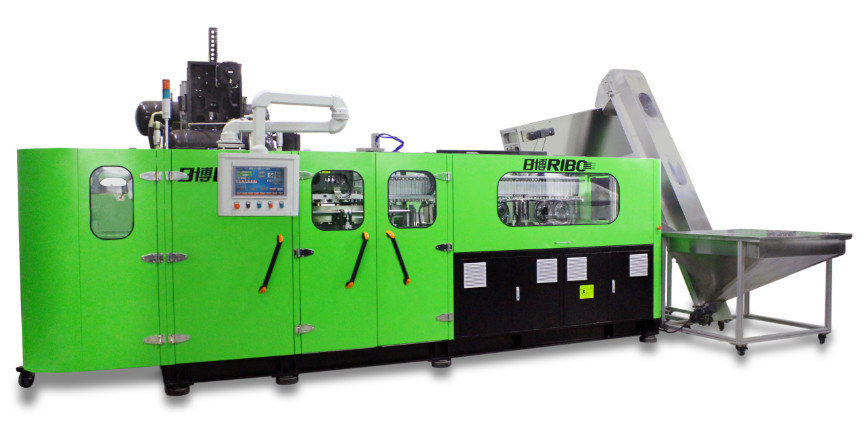

Tea Drinks / Juice Bottle / Milk Drink / PET bottle Making Machine
This series is applied widely in PET hot filling bottle for juice, tea drinks ,energy drinks and other hot filling drinks.
Performance and Characteristics
1. Oil or electricity heated, the mold can ensure bottles meet the hot filling requirement and withstand a temperature up to 92℃
without deformation. The capacity of each cavity can be up to 700~850bph.
2.The servo motor driven stepping unit and stretching mechanism have improved the speed, flexibility and accuracy of blowing.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
4.The high pressure blowing system is also equipped with the gas recycling device (air recycling rate can be up to 30%)which
may reduce power consumption as much as 30kw per hour.That means you do not need the low pressure air compressor any
more, which will minimize your investment as well as the space for placing the machine. In one word, it is energy-efficient and
environmental safe.
5.38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy
saving.
6.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
7.The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.
Technical Parameter
| Item | Unit | Moldel | |
| RiBo-8RH600 | |||
| Molding Spec. | Preform Pitch | mm | 96 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 0.6 |
| Neck Diameter Range | mm | 18-30 | |
| Max.Containr Diameter | mm | 78 | |
| Max.Containr Height | mm | 320 | |
| ※※ Theoretical Output | BPH | 8000 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | ||
| 48~62 | |||
| Compressor Spec. | Blowing Pressure | Mpa | 2.6~3.2 |
| Air Consuming | m³/min | 16 | |
| Mold Temp.Controller | Temperature | °C | 130~160 |
| Consumption | kcal/hr | 23000 | |
| Main Machine Spec. | Size | mm | 7300*4800*3300 |
| Weight | Kg | 8500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
