| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-10CR48-1.5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 12 PCS/Month |
| Condition: | New | Voltage: | Customized,3 Phases 380V/50HZ |
|---|---|---|---|
| Plastic Processed: | PET | Automatic: | Yes |
| Blow Moulding Type: | Stretch Blow Moulding | Product Name: | Blow Molding Machine |
| Capacity: | 20000~12000BPH | Cavity: | 10 Cavities |
| Suitable Bottle: | Liquid Milk Drink ,Water Drinking Bottle | Use: | Making PET Bottle |
| Power: | 158KW | Power Consumption: | 52~72KW |
| Key Selling Points: | High Speed,high Efficiency,saving Energy | Air Consuming: | 12m³/min/40kg |
| Blowing Pressure: | 2.8~3.2 Mpa | Max.bottle Volume: | 1.5L |
| Max.neck Diameter: | 38mm | Max.bottle Diameter: | 90mm |
| Highlight: | 38mm Neck Plastic Bottle Manufacturing Equipment,Plastic Bottle Manufacturing Equipment 20000BPH,Plastic Manufacturing Equipment 12000BPH |
||

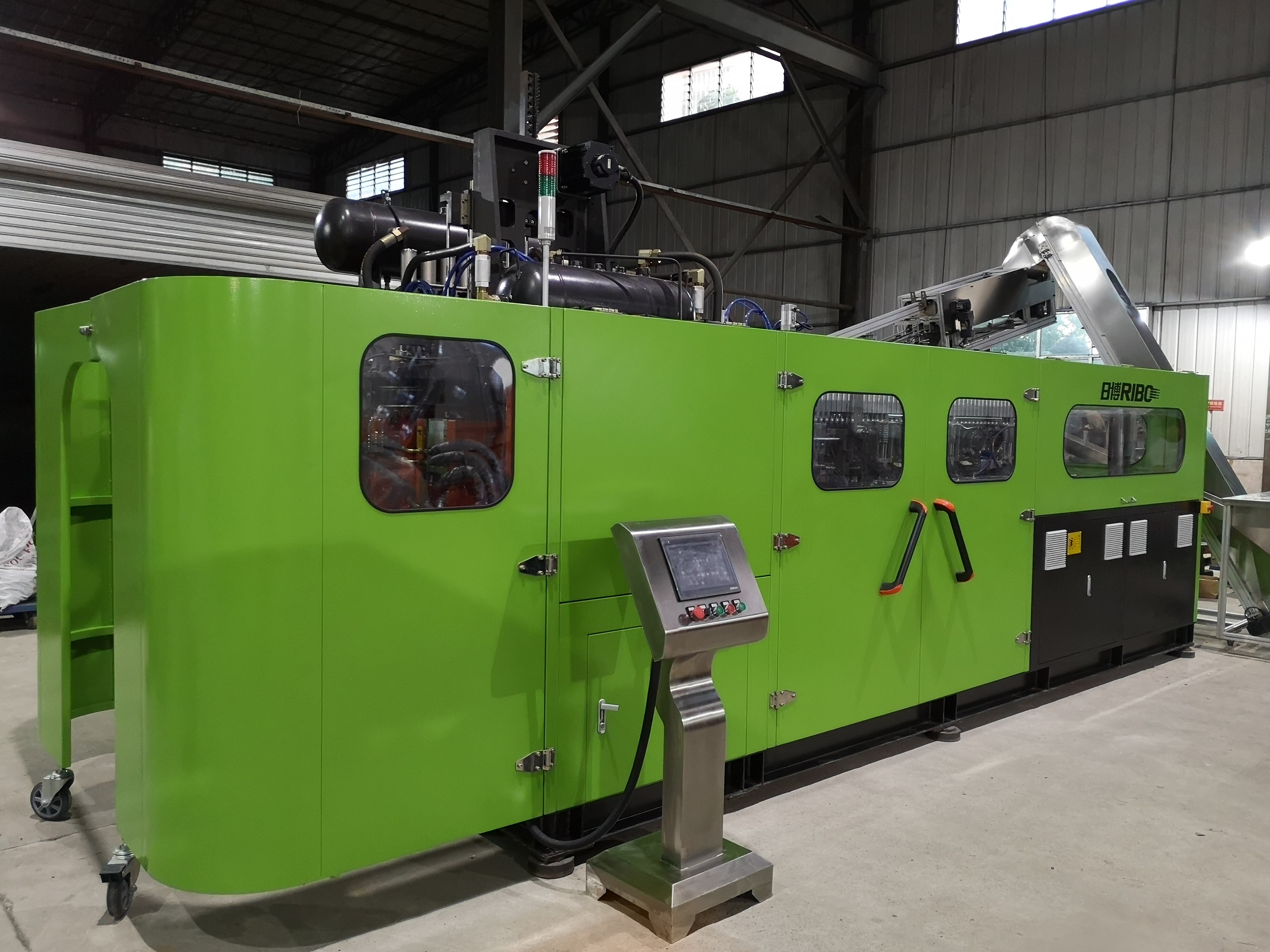

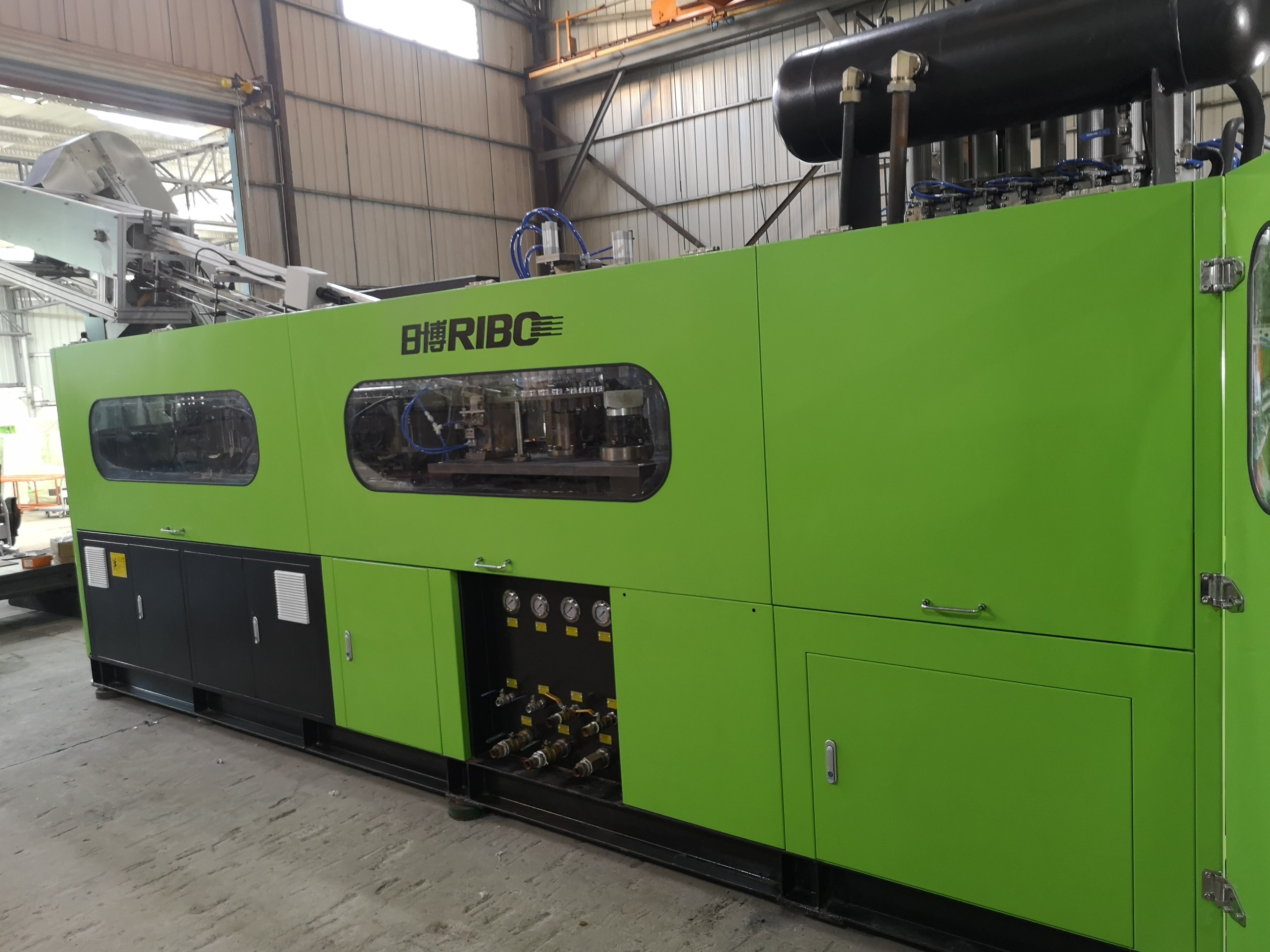

38mm Neck Liquid Milk Drinks Bottle / Mineral Water Bottle / Plastic Blow Molding Machine
This series is applied in making PET bottle for drinking water, beverages,liquid milk drinks……ect.
Machine Technical Parameter
| Items | Unit | Model | |
| RiBo-10CR48-1.5L | |||
| Molding Spec. | Preform Pitch | mm | 96 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 10 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 90 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 20000~12000 | |
| Power Spec. | Rated Power | KW | 158 |
| Power Consumption | KW | 52~72 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
| Air Consuming | m3/min | 12 | |
| Main Machine Spec. | Size | mm | 9039*3558*3350 |
| Weight | Kg | 10500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
Machine advantages
1.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
2.Operation on the touch screen is simple and easy.
3.The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve
the energy-efficient and environmental safe.
4.The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
5.The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed
precision blowing valve unit helps to make high capacity.
6.The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high
speed and accurate preform handling between the two mechanism.
7.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.

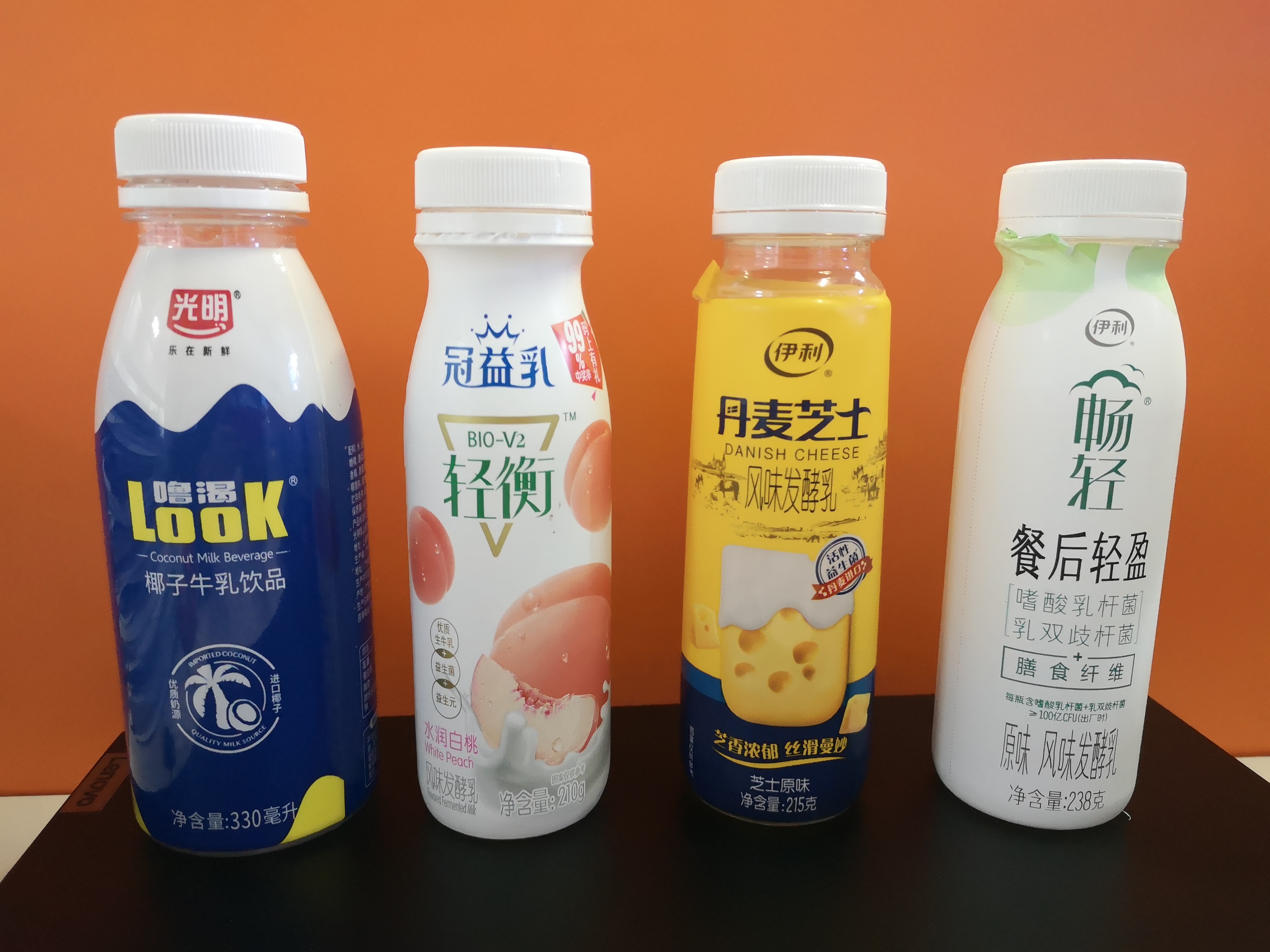

Some Bottle Design as following
