| Place of Origin: | Made in China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | BLMS-9000 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 45~60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 sets / Month |
| Voltage: | 380V/3PH/50HZ | Condition: | New |
|---|---|---|---|
| Application: | Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Rated Power: | 88KW/H | Warranty: | 12months |
| Plastic Processed: | PET | Automatic: | Yes |
| Blow Moulding Type: | Stretch Blow Moulding | Product Name: | Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine,pet Blow Moulding Machine Price |
| Capacity: | 9000BPH | Machine Type: | High Speed Plastic Bottle Making Machine |
| Key Words: | Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine | Cavity Pitch: | 76mm |
| No.of Cav.: | 6 | Max.bottle Diameter: | 70 Mm |
| Max.bottle Height: | 240 Mm | Air Consuming: | 6 M3/min/40kg |
| High Light: | CSD Drinks Automatic Blow Moulding Machine,Automatic Blow Moulding Machine 9000BPH,automatic blow molding machine 9000BPH |
||

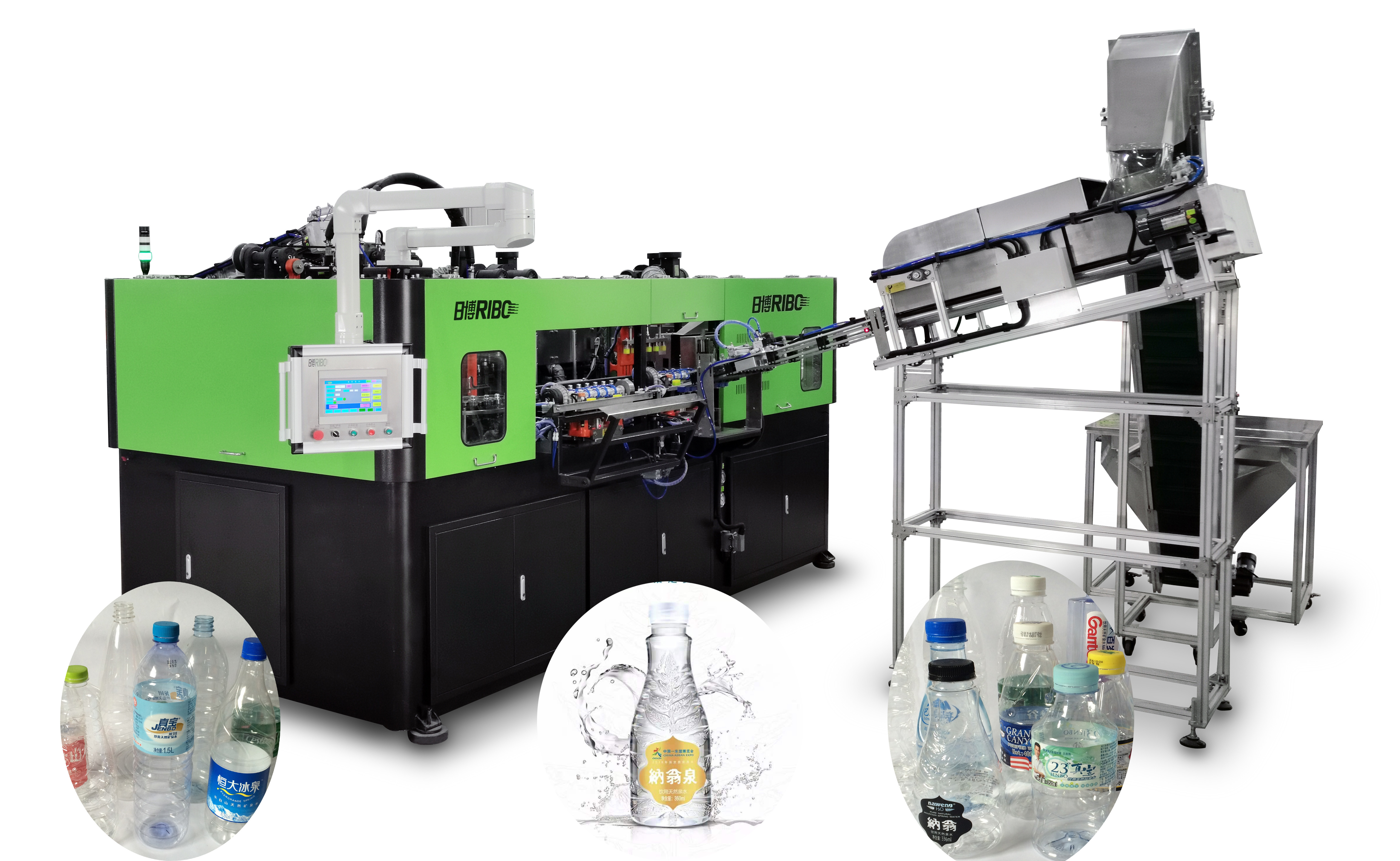

Drinking Water Bottle / CSD Drinks PET Bottle Automatic Blow Moulding Machine
This series is widely used for making PET bottles for drinking water, carbonated soft drink, medium temperature filling drink, milk,
edible oil, food, pharmacy, daily chemical……etc.
Machine Features and Advantages
1.The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole
mechanism works speedy,accurately, stably and flexibly. Meanwhile, it is energy efficient and environmental safe.
2. The servo motor driven stepping system and stretching system have improved the speed, flexibility and accuracy of blowing.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
5. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and
blowing.
6. The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.
Technology Parameter
| Items | Unit | Model | |
| BLMS-9000 | |||
| Molding Spec. | Cavity Pitch | mm | 76 |
| Preform Heating Pitch | mm | 76 | |
| No.of Cav. | Cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 0.6 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 10000~9000 | |
| Power Spec. | Rated Power | KW | 88 |
| Power Consumption | KW | 45~55 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 7~8 | |
| Whole Machine Spec. | Size | mm | 5191*4864*3200 |
| Weight | Kg | 5500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
