| Place of Origin: | Guangdong ,China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | BLMS-6000-2L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 45~60 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 15 sets / Month |
| Cavity Pitch: | 114mm | Preform Heating Pitch: | 114mm |
|---|---|---|---|
| No.of Cav.: | 4 | Max.cantiner Volume: | 2000ml |
| Neck Diameter Range: | 18~38mm | Max.Container Diameter: | 108mm |
| Max.Container Height: | 320mm | Output: | 4000~6000BPH |
| Rated Power: | 80KW | Power Consumption: | 45~55KW |
| Blowing Pressure: | 2.5~3.2 Mpa | Air Consuming: | 4~6M3/min/4.0Mpa |
| Whole Machine Size: | 5191x4864x3200 | Weight: | 5600kg |
| Voltage: | 380V/3PH/50HZ,Customized | Condition: | New |
| Application: | Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 12months | Plastic Processed: | PET |
| Automatic: | Yes | Blow Moulding Type: | Stretch Blow Moulding |
| Product Name: | Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine,pet Blow Moulding Machine Price,4 Cavity Automatic Pet Bottle Blow Molding Machine | Use: | Making PET Bottle,water Bottle |
| Machine Type: | High Speed Plastic Bottle Making Machine | Key Words: | Blow Molding Machine,machine,PET Stretch Bottle Blowing Molding Machine |
| High Light: | 6000BPH Automatic Blow Moulding Machine,380V Automatic Blow Moulding Machine,380V 4 Cavity Pet Blowing Machine |
||
Automatic Blow Moulding Machine for 1.5 L Water bottle / Juice Bottle / Milk Drink Bottle
Widely Used for
Electric high speed series is a stable two-step blow-up stretch automatic blowing machine.It can be used from 4 cavity to 9
cavity with a speed of 1500 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of
carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic
bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

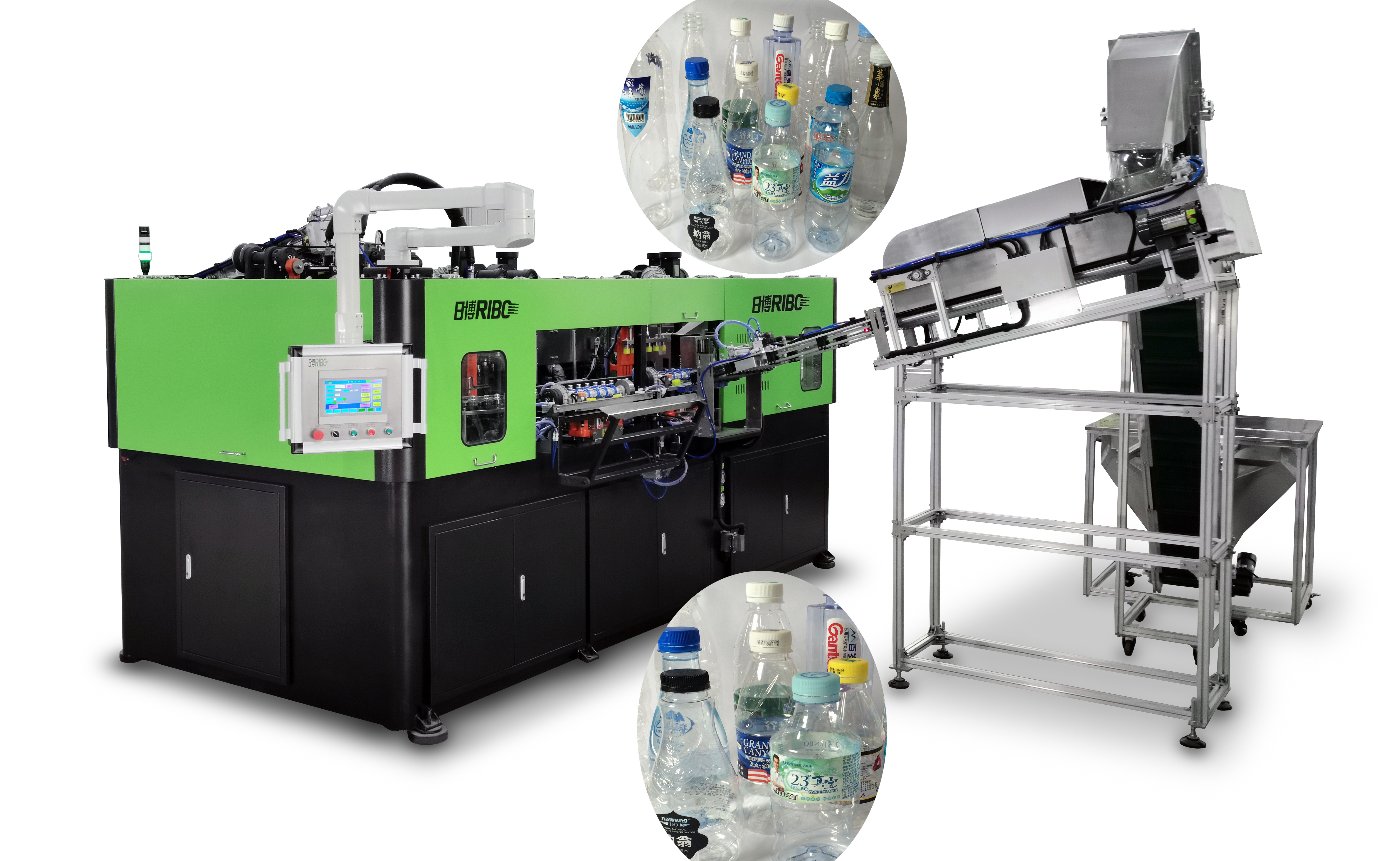

Part of Machine Pictures
Technical Parameter
| Items | Unit | Model | |
| BLMS-6000-2L | |||
| Molding Spec. | Cavity Pitch | mm | 114 |
| Preform Heating Pitch | mm | 114 | |
| No.of Cav. | Cav. | 4 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 108 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 6000~4800 | |
| Power Spec. | Rated Power | KW | 80 |
| Power Consumption | KW | 45~55 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 6 | |
| Whole Machine Spec. | Size | mm | 5191*4864*3200 |
| Weight | Kg | 5600 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
