| Place of Origin: | Guangdong,China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-8CR600 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine (covered with film) and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 100~120 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 pcs/month |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Application: | Water Bottle,juice Bottle,edible Oil Bottle | Voltage: | 380V/3PH/50HZ |
| Power Consumption: | 40~50KW | Weight: | 8500KG |
| Dimension(l*w*h): | 6800*3200*2950mm | Warranty: | 1 Year,12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation,Free Spare Parts | Product Name: | Automatic Blowing Molding Machine,Blow Molding Equipment Manufacturers Used Making Bottles,5 Gallon Mineral Water Bottle Blow Molding Machine |
| Capacity: | 19000~16000BPH | Cavity: | 8-cavity |
| Name: | Plastic Blow Moulding Machine,Automatic Servo Motor Blow Molding Machine | Type: | Stretch Pet Blow Moulding |
| Advantages: | Fast/High Speed, Servo Motor Driven Mechanism, Air Recycle,energy Saving | Model: | RiBo-8CR600 |
| Cavity Pitch: | 76mm | Preform Heating Pitch: | 38mm |
| Max.neck Diameter Range: | 700ml | Max.bottle Diameter: | 70mm |
| Max.bottle Height: | 320mm | Blowing Pressure: | 2.5~3.2Mpa |
| Air Consuming: | 8M3/min/40kg | Brand: | RiBo |
| High Light: | 8 Cavity PET Blow Molding Equipment,500ml PET Blow Molding Equipment,8500KG PET Blow Molding machine |
||
500ml Drinking Water Bottle,Carbonated Drinks Energy Saving PET Bottle Blow Molding Equipment factory
8 Cavity full electric energy saving PET bottle blowing machine for mineral water bottles,carbonated soft drink,medium temperature filling drink,milk,edible oil,food,daily chemical......etc.

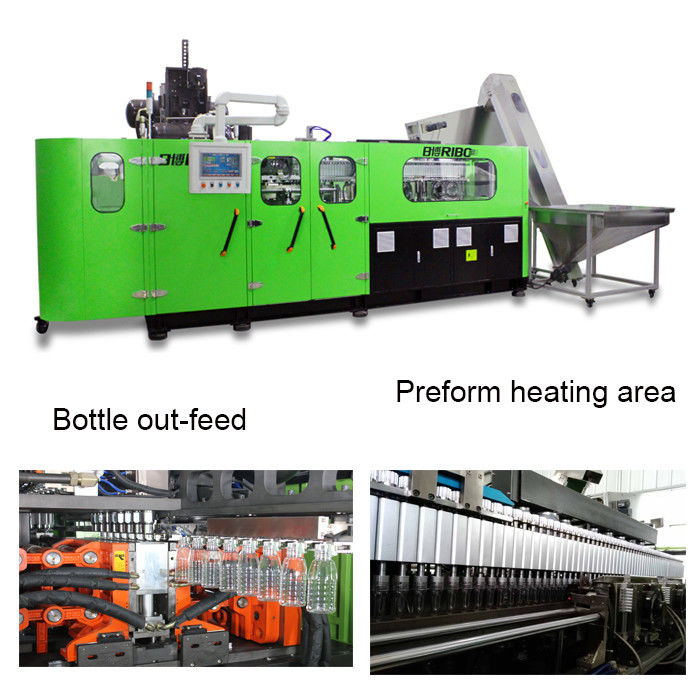

High speed water bottle making machine picture and parameter as follow:
Preform heating system is same with the rotary machine,the built-in continuous rotating infeed system effectively reduces the space preform is hanged and heated without flip over,the consistency of preform position streamlines the process.
38mm preform heating pitch,more preform are ininterruptedly heated within the same distance,which improves the efficiency and energy saving(energy saving can be up to 50%)
Preform heating ovens
Ready for shipment to domestic customer factory
The machine is equipped with the units of preform temperature detection,leaking bottle detection and rejection as well as jammed air conveyor detection,etc,which ensures the machine work efficiently and stably.
Technical parameter
| Items | Unit | Model | |
| RiBo-8CR600 | |||
| Molding Spec. | Preform Pitch | mm | 76 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 0.7 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 19000~16000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 40~50 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8 | |
| Main Machine Spec. | Size | mm | 6758*3331*3200 |
| Weight | Kg | 8500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
