| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | RIBO |
| Model Number: | RiBo-8CR48-2L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Machine will be packed by wooden pallet |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 PCS/Year |
| Automatic: | Yes | Warranty: | 12 Months |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training | Blow Moulding Type: | Stretch Blow Moulding |
| Application: | Bottle,Mineral Water Bottle | Plastic Processed: | PET |
| Capacity: | 14000~8800BPH | Machine Type: | Auto,Stretch Blow Molding Machine,High Speed Plastic Bottle Making Machine |
| Rated Power: | 148KW | Air Consuming: | 10 M3/min/40kg |
| High Light: | 148KW PET Blow Moulding Machine,8800BPH PET Blow Moulding Machine,8800BPH Drink Bottle Moulding Machine |
||

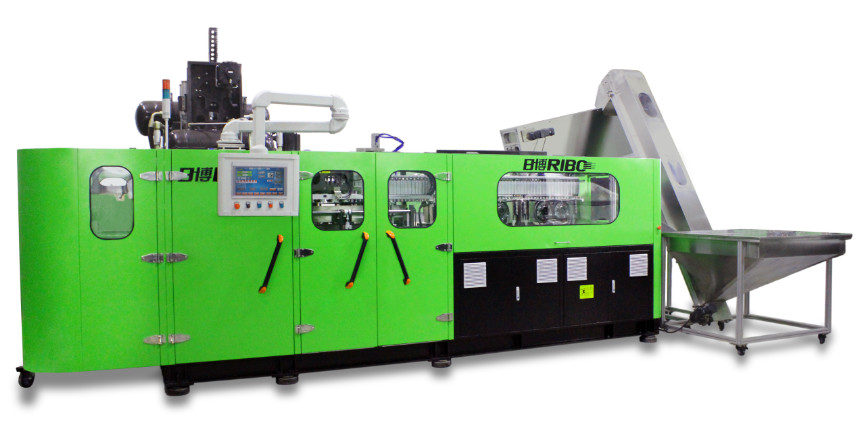

38# Juice , Energy Drinks Bottle PET Blow Moulding Machine
Technical Parameter
| Items | Unit | Model | |
| RiBo-8CR48-2L | |||
| Molding Spec. | Preform Pitch | mm | 120 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 114 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 14000~8800 | |
| Power Spec. | Rated Power | KW | 148 |
| Power Consumption | KW | 50~70 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
| Air Consuming | m3/min | 10 | |
| Main Machine Spec. | Size | mm | 8192x3421x3300 |
| Weight | Kg | 10200 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
R series linear full electric PET bottle blow molding machine is a high speed automatic PET blower designed and developed
with the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable,
simple, general purposed and environmental safe. It is mainly applicable in blow molding PET containers for water, beverage,
juice, etc. The machine yields abundantly with high efficiency. The capacity of each cavity has been increased to
2750~2000bph when the bottle size is equal to or less than 0.55L respectively, which can meet the high-end customer's
requirements. Equipped with preform auto loading system, the machine works fully automatically with consistent performance
and high speed, without any operator's interference during the whole processes. Accordingly, chance of contamination can be
reduced manifestly, which assures the quality of products.
This series is applied in making PET bottle for drinking water, beverages,liquid milk drinks……ect.
