| Place of Origin: | Guang Zhou China |
|---|---|
| Brand Name: | RIBO |
| Certification: | Certificate of Quality |
| Model Number: | BLMS-8000-2L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Machine will be packed by wooden pallet |
| Delivery Time: | 60 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 PCS/Year |
| Blow Molding Type: | Stretch Blow Molding | High Efficient: | Output 8000-6600BPH |
|---|---|---|---|
| Operating: | High Speed | Automatic: | Yes |
| Use For: | PET Bottle For Drinking Water , Carbonated Soft Drink , Medium Temperature Filling Drink , Milk , Edible Oil , Food , Pharmacy , Daily Chemical | After-sales Service Provided: | Engineers Available To Service Machinery Overseas , Online Support , Field Maintenance And Repair Service , Video Technical Support , Field Installation |
| High Light: | 8500kg Plastic Water Bottle Manufacturing Machin,6600BPH Plastic Water Bottle Manufacturing Machine,6600BPH Stretch Blow Moulder |
||

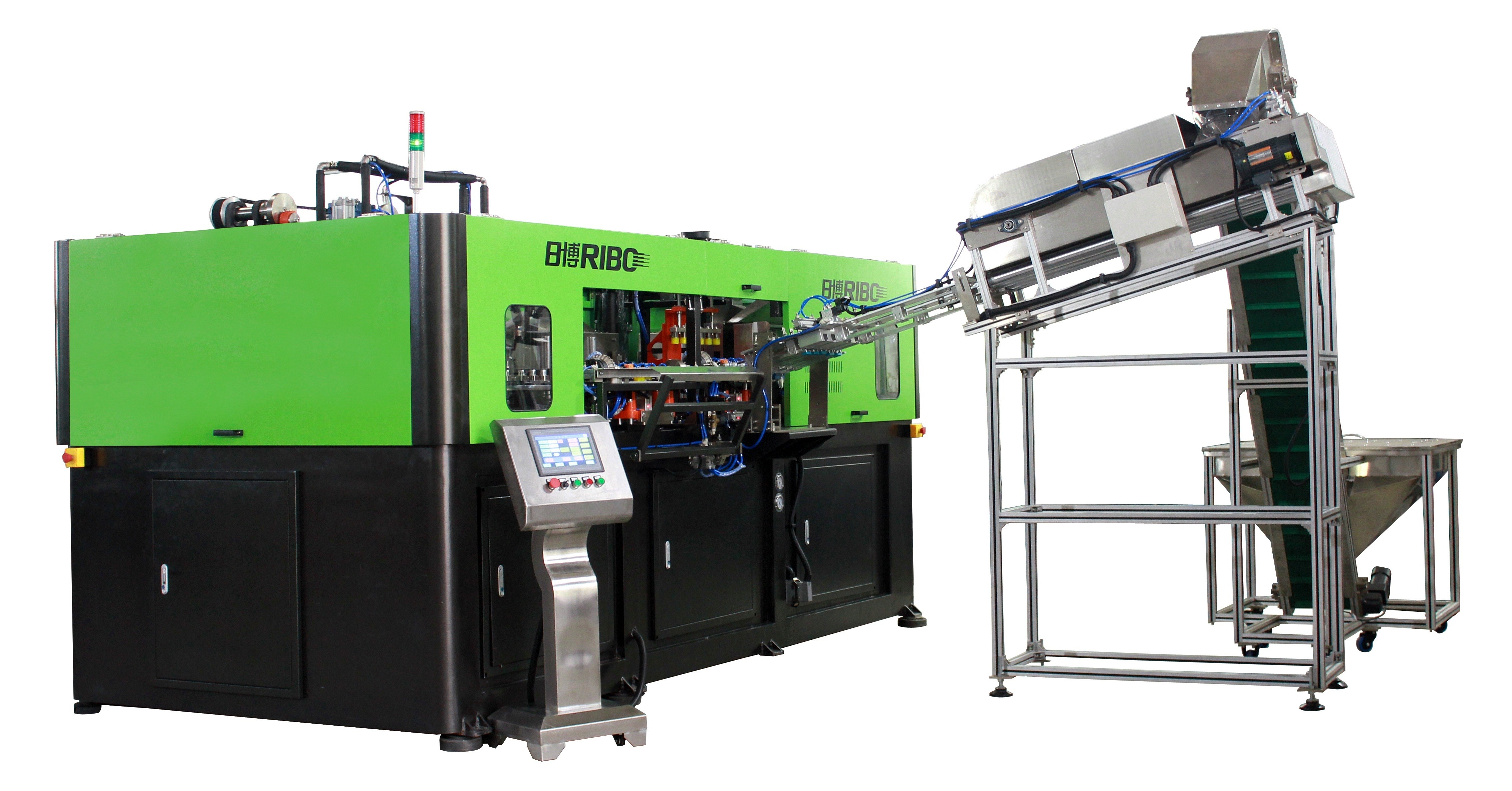

2 Litre Stretch Blowing Machine for Drinking Water / Soft Drink Bottle / Beverage Drinks Bottle
Performance and Characteristics

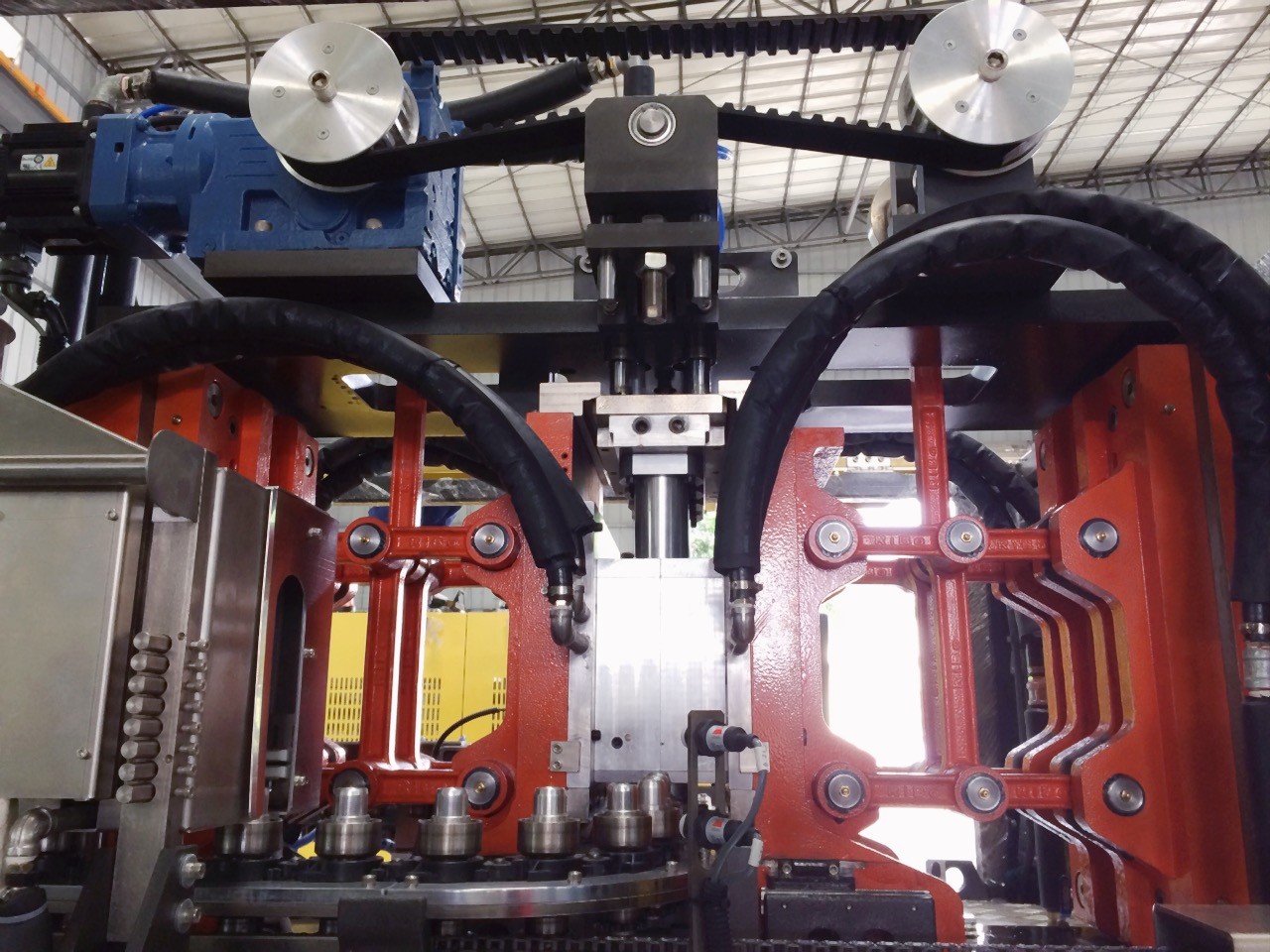

1. The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole mechanism works speedy, accurately, stably and flexibly. Meanwhile, it is energy efficient and environmental safe.

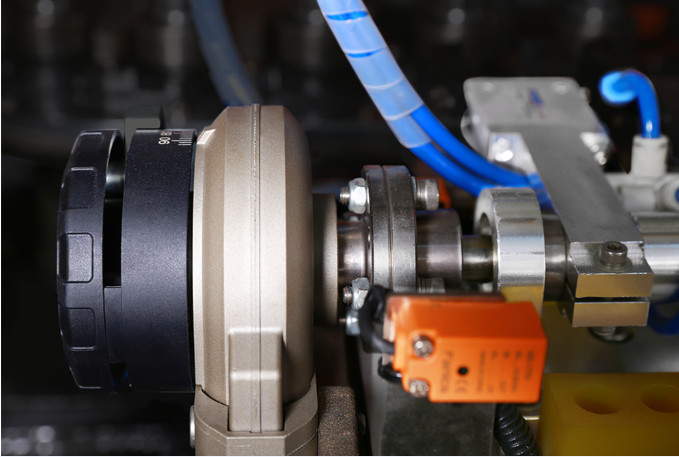

2. The servo motor driven stepping system and stretching system have improved the speed, flexibility and accuracy of blowing.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
5. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
6. The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.
7. This series is widely used for making PET bottles for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil,food, pharmacy, daily chemical……etc.
Technical Parameter
| Items | Unit | Model | |
| BLMS-8000-2L | |||
| Molding Spec. | Cavity Pitch | mm | 114 |
| Preform Heating Pitch | mm | 114 | |
| No.of Cav. | Cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 108 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 8000~6600 | |
| Power Spec. | Rated Power | KW | 98 |
| Power Consumption | KW | 60~70 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 7~9 | |
| Whole Machine Spec. | Size | mm | 6160*4150*3300 |
| Weight | Kg | 8500 | |
Note: Due to continuous technical development specification would be improved without prior notice.
Special designs correspond to customers needs.
