| Place of Origin: | Made in China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-PP12CR1.5L |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 pcs/year |
| Plastic Processed:: | PP | Condition: | New |
|---|---|---|---|
| Application: | Making PP Plastic Bottle | Blow Moulding Type:: | Stretch Blow Moulding/ Bottle Blow Moulding Machine |
| Brand Name: | RiBo | Place Of Origin: | Guangdong,China |
| Voltage: | According Customer Inquiry | Max.bottle Volume: | 1.5L |
| Cavity Pitch: | 105mm | Preform Heating Pitch: | 48mm |
| No.of Cav.: | 12 | Neck Diameter Range: | 38mm |
| Max.bottle Diameter: | 96mm | Max.bottle Height: | 320mm |
| High Light: | 1.5L PP Bottle Blowing Machine,PP Bottle Blowing Machine 12 Cavity,1.5L PP Blowing Machine |
||

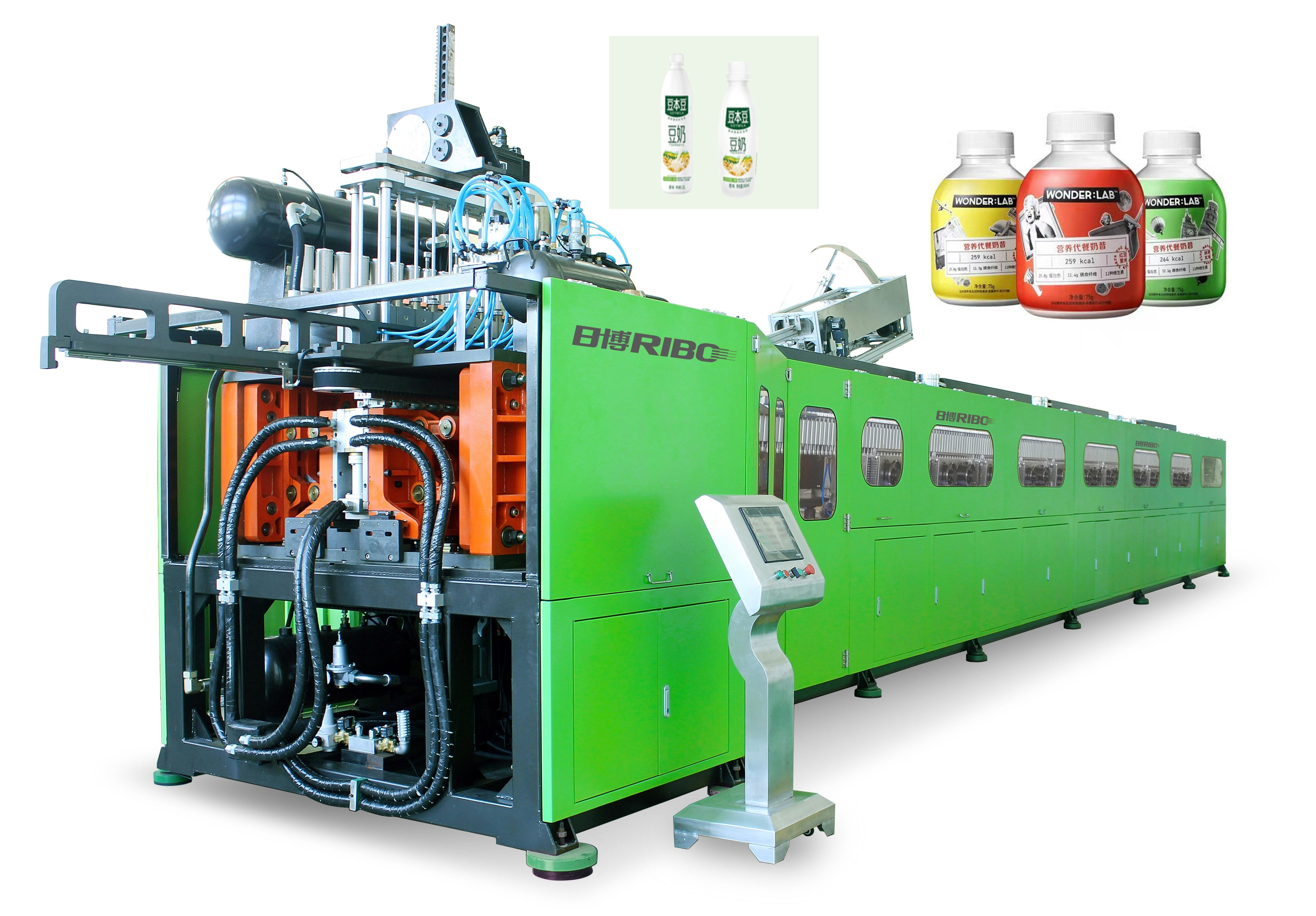

PP Bottle / Milk Drink Bottle / Plastic Bottle Making Machine

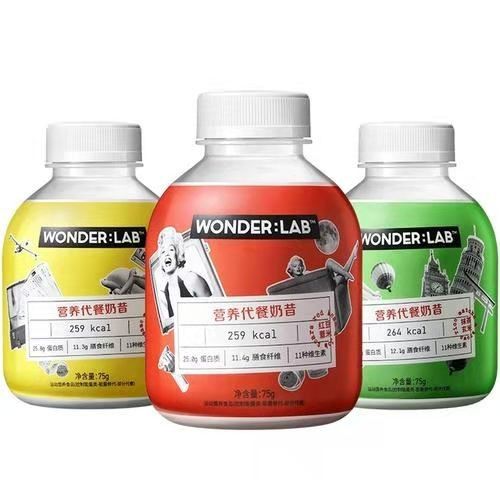

PP bottle can withstand a temperature up to 125℃ without deformation, this series is widely used for making PP bottles for soy
milk beverage, liquid milk drink, pharmaceutical packaging bottle and other hot filling bottle……etc.PP bottle can withstand a
temperature up to 125℃ without deformation, this series is widely used for making PP bottles for soy milk beverage, liquid milk
drink, pharmaceutical packaging bottle and other hot filling bottle……etc.
Machine features
1.48mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy
saving(energy saving can be up to 40%).
2.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
3.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
4.The Servo driven molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision
blowing valve unit helps to make high capacity.
5.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
Technical Parameter
| Items | Unit | Model | |
| RiBo-PP12CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 12 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 96 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 12000~9600 | |
| Power Spec. | Rated Power | KW | 530 |
| Power Consumption | KW | 140~220 | |
| Compressor Spec. | Blowing Pressure | Mpa | 1.6~2.5 |
| Air Consuming | m3/min | 8~12 | |
| Whole Machine Spec. | Size | mm | 20108*4784*3200 |
| Weight | Kg | 17000 | |
| Note: * Due to continuous technical development specification would be improved without prior notice. | |||
| * Special designs correspond to customers needs. | |||
