| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-PP8CR1.5L |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 60 pcs/year |
| Plastic Processed:: | PP | Condition: | New |
|---|---|---|---|
| Application: | For Making PP Plastic Bottle | Blow Moulding Type:: | PP Bottle Making Machine |
| Brand Name: | RiBo | Place Of Origin: | Guangdong,China |
| Voltage: | 380V/50HZ Or Customized | Max.bottle Volume: | 1.5L |
| Cavity Pitch: | 96mm | Preform Heating Pitch: | 48mm |
| No.of Cav.: | 8 | Neck Diameter Range: | 38mm |
| Max.bottle Diameter: | 90mm | Max.bottle Height: | 320mm |
| Theoretical Output: | 8000~6400BPH | Rated Power: | 420 KW |
| Power Consumption: | 80~160KW | Air Consuming: | 4~8 M³/min |
| Whole Machine Size: | 14050x4784x3200 | Weight: | 13000KG |
| High Light: | 50HZ Pharma Plastic Bottle Making Machine,380V Pharma Plastic Bottle Making Machine,380V pharma bottle making machine |
||

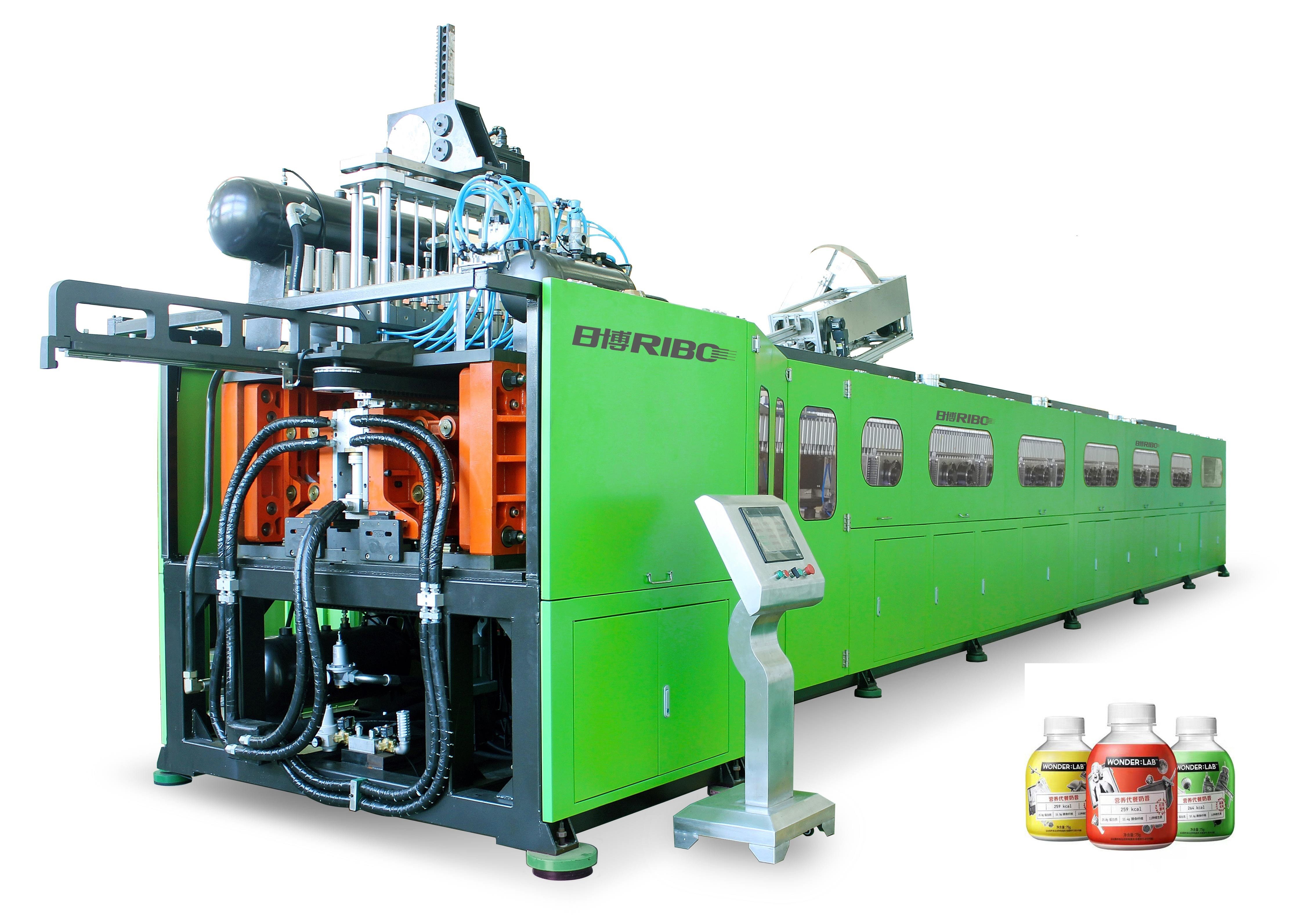

Pharmaceutical Packing Bottle / Hot Filling Bottle / Plastic Bottle Making Machine For PP Bottle
R series linear full electric PP bottle blow molding machine is a high speed automatic PP blower designed and developed with
the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable, simple,
general purposed and environmental safe. It is mainly applicable in blow molding PP containers for milk drinks, beverage, juice,
etc. The machine yields abundantly with high efficiency. The capacity of each cavity has been increased to 1000~800bph when
the bottle size is equal to or less than 1.5L respectively, which can meet the high-end customer's requirements. Equipped with
preform auto loading system, the machine works fully automatically with consistent performance and high speed, without any
operator's interference during the whole processes. Accordingly, chance of contamination can be reduced manifestly, which
assures the quality of products.
Machine performance
Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
PP bottle can withstand a temperature up to 125℃ without deformation, this series is widely used for making PP bottles for soy
milk beverage, liquid milk drink, pharmaceutical packaging bottle and other hot filling bottle……etc.PP bottle can withstand a
temperature up to 125℃ without deformation, this series is widely used for making PP bottles for soy milk beverage, liquid milk
drink, pharmaceutical packaging bottle and other hot filling bottle……etc.
Technical Parameter
| Items | Unit | Model | |
| RiBo-PP8CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 96 |
| Preform Heating Pitch | mm | 48 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 38 | |
| Max.Preform height | mm | 150 | |
| Max.Preform diameter | mm | 37.5 | |
| Max.Containr Diameter | mm | 90 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 8000~6400 | |
| Power Spec. | Rated Power | KW | 420 |
| Power Consumption | KW | 80~160 | |
| Compressor Spec. | Blowing Pressure | Mpa | 1.6~2.5 |
| Air Consuming | m3/min | 4~8 | |
| Whole Machine Spec. | Size | mm | 14050*4784*3200 |
| Weight | Kg | 13000 | |
| Note:* Due to continuous technical development specification would be improved without prior notice. | |||
| * Special designs correspond to customers needs. | |||
Machine deliveried pictures
