| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-8CR600 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70 sets/ year |
| Plastic Processed: | PET | High Pressure Valve: | PARKER,USA |
|---|---|---|---|
| PLC Brand: | OMRON,Japan | Rotary Cylinder: | FESTO,Germany |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support,Field Installation |
| Maketing Type: | Hot Product | Machine Test Report: | Provided |
| Applicable Industria: | Food&Beverage Factory | Condition: | New |
| Automatic: | Yes | Cavity: | 8 Cavity |
| Color: | Green & Black | Use: | Making PET Bottle,water Bottle |
| Cavity Pitch: | 76mm | Preform Heating Pitch: | 38mm |
| Max.container Volume: | 600ml | Neck Diameter Range: | 18~30mm |
| Max.container Diameter: | 70mm | Max.container Height: | 240mm |
| Output: | 18000~16000BPH | Rated Power: | 123KW |
| Power Consumption: | 40~50KW | Blowing Pressure: | 2.5~3.2Mpa |
| Air Consuming: | 8M3/min/40kg | Whole Machine Spec.: | 6800*3200*3000mm |
| Weight: | 8500kg | Key Word: | PET Bottle Stretching Machine,Bottle Blow Moulding Machine,plastic Bottle Making Machine |
| Highlight: | 8 Cavity Plastic Bottle Blowing Machine,123KW Plastic Bottle Blowing Machine,8500kg Plastic Bottle Blowing Machine |
||

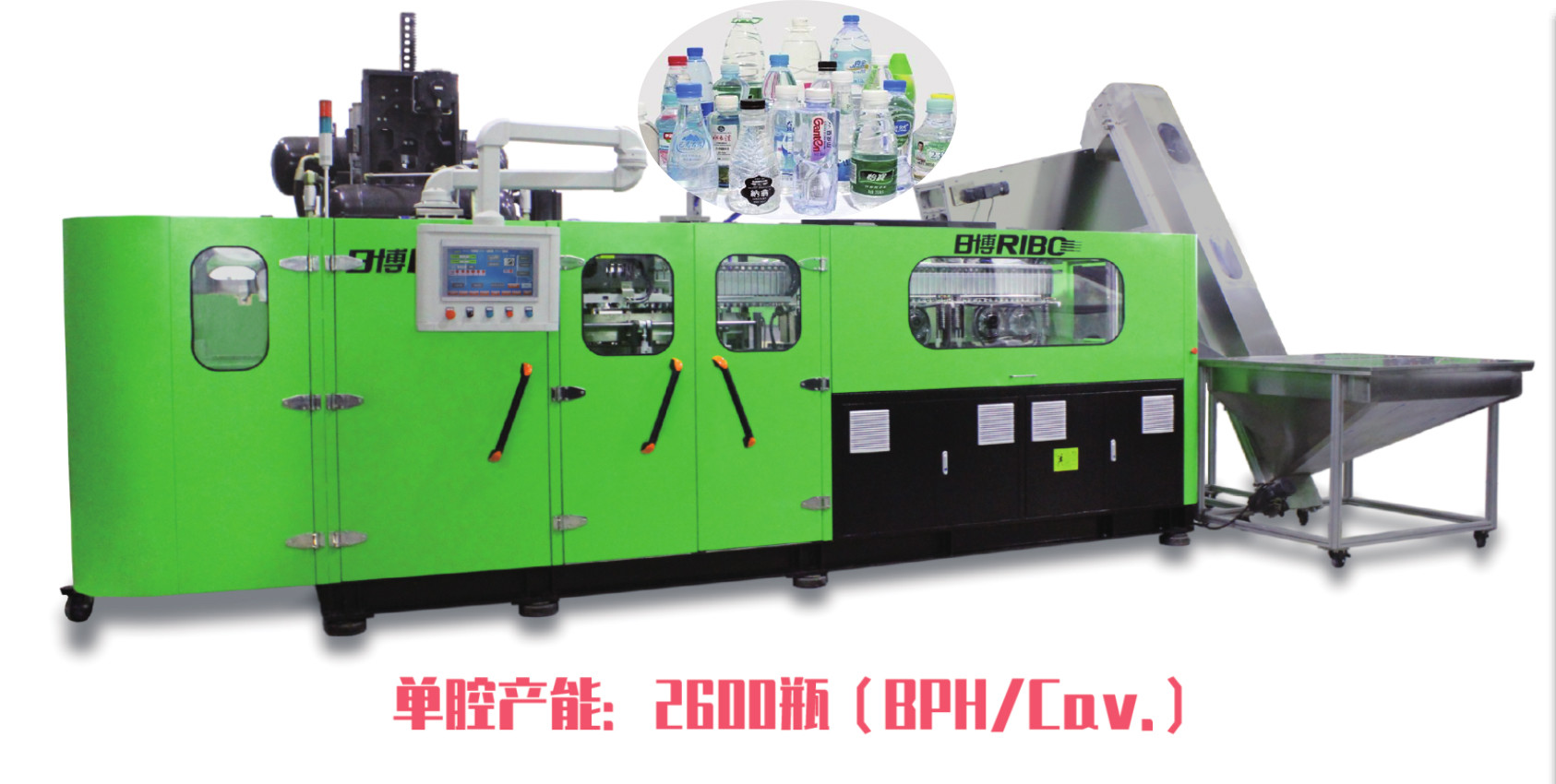

Full electric Energy Saving PET Bottle Blow Moulding Machine For Beverage Drinks Bottle
This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil, food, daily chemical……ect.
We are a professional manufacturer of packaging machinery parts and equipment maintenance technology in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
Full electric Energy Saving PET Bottle Blow Moulding Machine For Beverage Drinks Bottle
Widely used to blow 18~30mm neck of hollow plastic containers, product quality is stable, the machine structure design is reasonable, with small volume less energy consumption, easy to operate, convenient maintenance and other characteristics.All the mechanical parts of the automatic bottle blowing machine are processed with high and new technology, finished and assembled to meet the technical requirements of all aspects.
Clean and dry compressed air is needed to blow the bottle. The chilled water provided by the industrial chiller can be used as the cold source to remove the moisture in the air, accurately control the temperature of the mold, improve the quality of the product,and improve the production efficiency.
Machine layout
Our Service
Technical Parameter
| Items | Unit | Model | |
| RiBo-8CR600 | |||
| Molding Spec. | Preform Pitch | mm | 76 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 0.7 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 19000~16000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 40~50 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8 | |
| Main Machine Spec. | Size | mm | 6758*3331*3200 |
| Weight | Kg | 8500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
