| Place of Origin: | Made in China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-5CR5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 pcs / year |
| Voltage: | Customized | Warranty: | 1 Year |
|---|---|---|---|
| Max.Bottle Volume: | 5L | Max.bottle Diameter: | 180 Mm |
| Max.bottle Height: | 330 Mm | Output: | 5500~5000BPH |
| Rated Power: | 168 KW | Power Consumtion: | 68~78 KW |
| Blowing Pressure: | 2.8~3.5 Mpa | Air Consuming: | 14 M³/min |
| Highlight: | OEM 5L Bottle Blow Molding Machine,168 KW 5L Bottle Blow Molding Machine,000BPH Bottle Molding Machine |
||

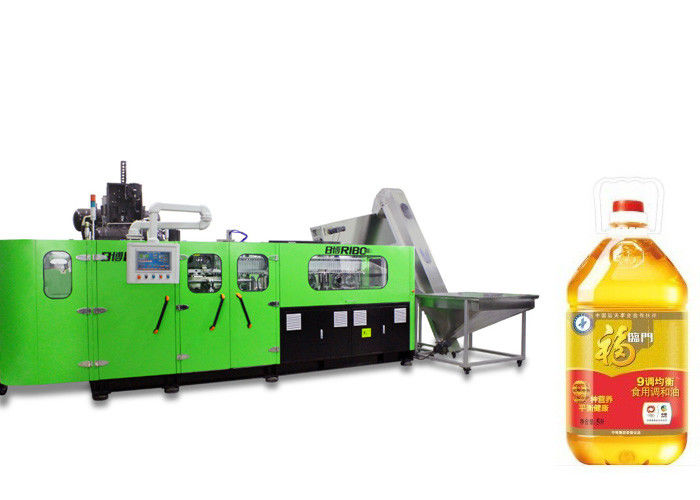

5 L Soy Bottle / Oil Bottle / Water Bottle Making / Bottle Blow Moulding Machine
This series is applied widely in PET hot filling bottle for juice, tea drinks ,energy drinks and other hot filling drinks.
Performance and Advantages
1. Easy Maintenance
Omron servo controller system (motion controller, modular) is connected with the machine via particular communicating
cables.The user can manage all the actions of the machine through the motion controller. Once the machine has a fault, the
man-machine interface will provide warning signals and fault diagnosis report to the operator, the operator can quickly find the
cause of the fault and troubleshoot as soon as possible through the fault display.
★ If the bottle is blocked/full in the air conveyor, the function of automatic stop feeding preforms can be set in the program
through photoelectric detection.
★ If the machine after blowing machine stops working for too long time, the heating lamp can be set with the function of
automatically reducing temperature, saving electricity consumption and avoid the excessive temperature in the heating seat.
(Temperature setting is set in touch screen)
2.Safety
The reciprocating parts of the bottle blowing machine are equipped with protective devices and warning signs.
i. The safety of operators
The machine is totally enclosed with perfect reliable safety door and also equipped with aluminum antislip plate on the principal
surface, which can assure operators' safety to the largest degree.
ii. The safety of the machine
The multiple points detection technique is adopted to ensure the safe running of the positioning system, the clamping system
and the stretching system to the largest degree.
3.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

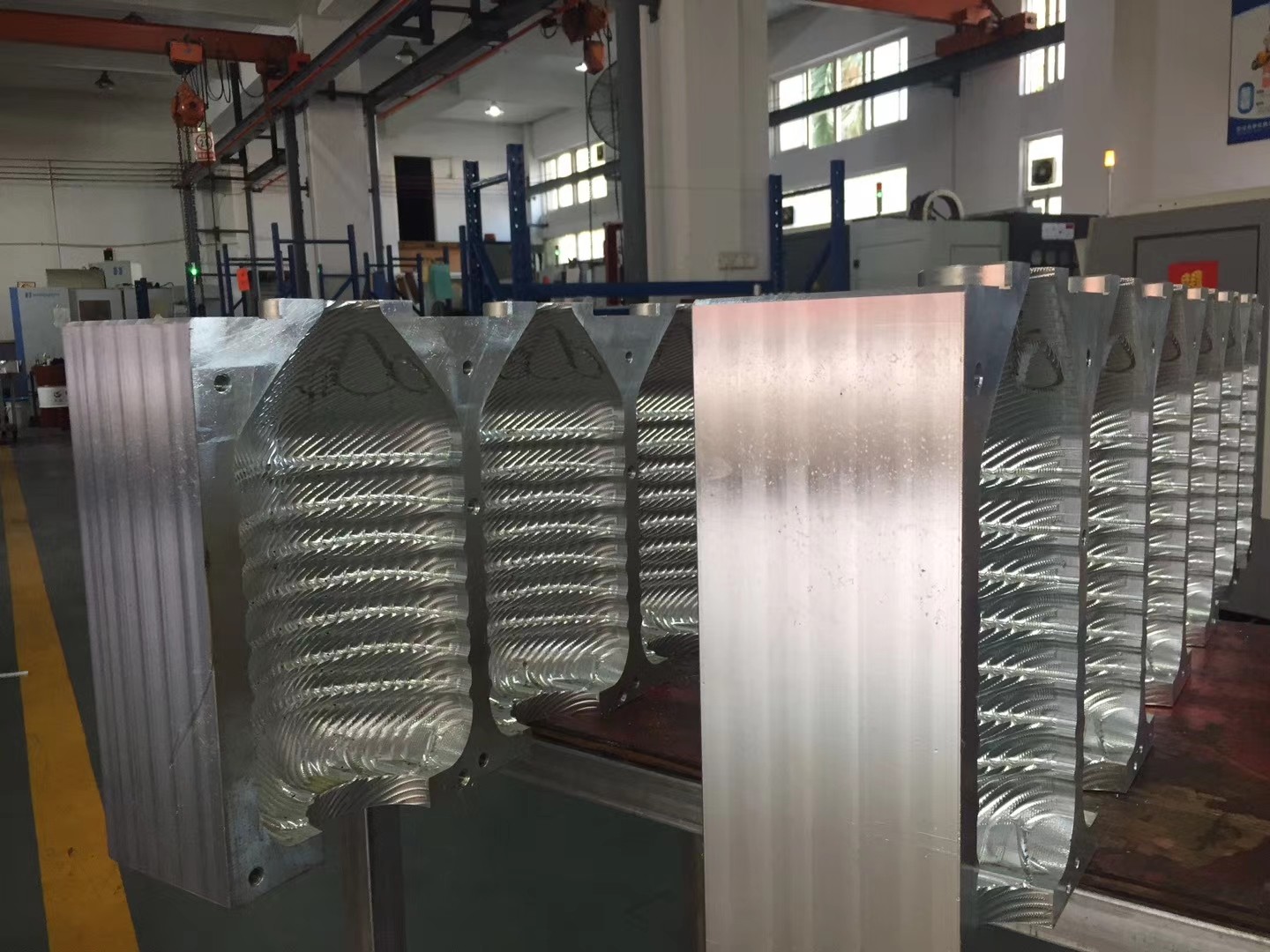

Bottle blow mould under processing
Techical Parameter
| Items | Unit | Model | |
| RiBo-5CR5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 5 | |
| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 5500~5000 | |
| Power Spec. | Rated Power | KW | 168 |
| Power Consumption | KW | 68~78 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 14 | |
| Main Machine Spec. | Size | mm | 9316*3635*3300 |
| Weight | Kg | 10500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
