| Place of Origin: | Made in China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-3CR5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main machine and the preform feeding system will be packed by wooden pallet , spare parts and the blow mould will be packed by wooden box. |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 PCS / Year |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support,Field Installation |
|---|---|---|---|
| Capacity: | 3300-3000BPH | Product Name: | Automatic Blowing Molding Machine |
| Cavity: | 3 Cavity | Max.container Volume: | 5 L |
| Cavity Pitch: | 190 Mm | Preform Heating Pitch: | 63.5 Mm |
| Max.container Diameter: | 180 Mm | Max. Height: | 330 Mm |
| High Light: | 5L Bottle Blow Molding Machine,4L Bottle Blow Molding Machine,3000BPH Drinking Water Bottle Manufacturing Machine |
||

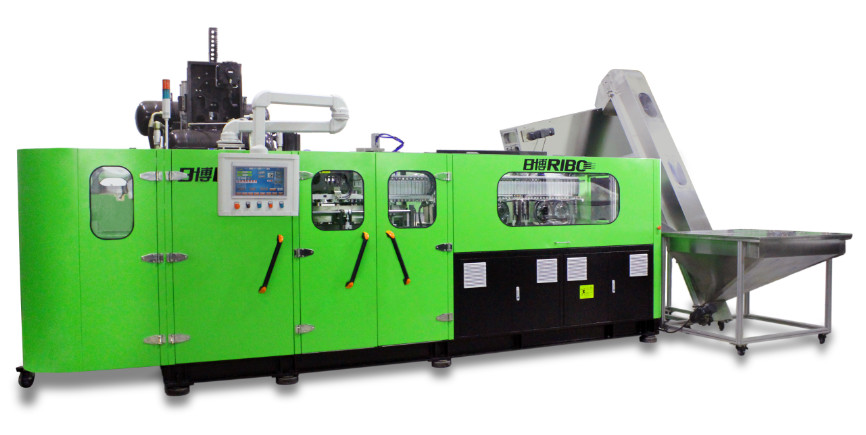

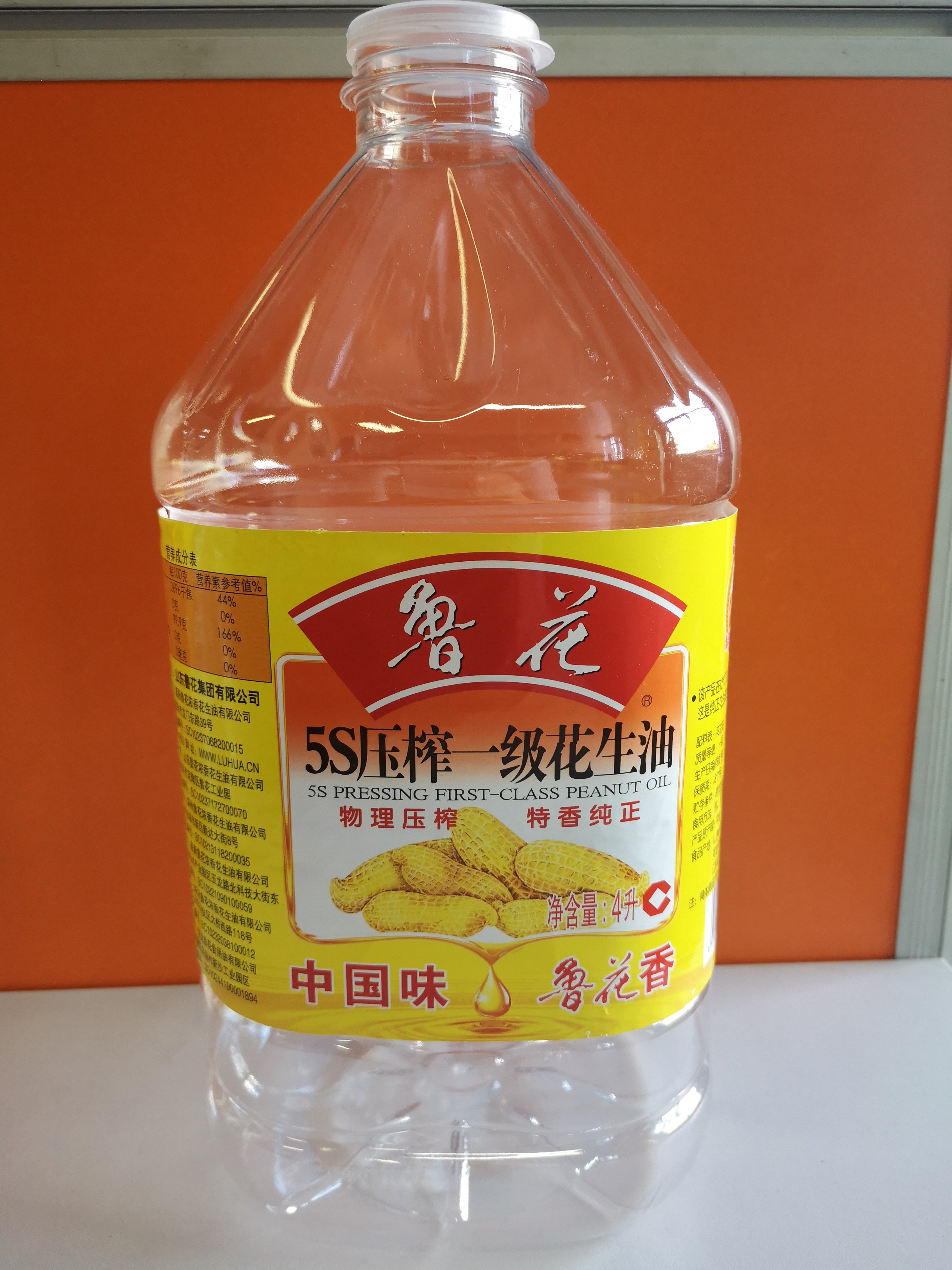

4 L / 5 L Edible Oil / Water Bottle Blow Moulding Machine

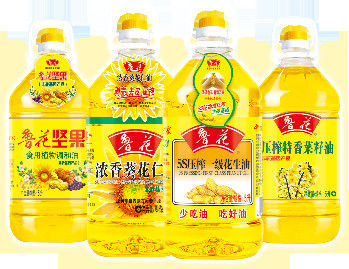

This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Performance and Characteristics
1. 63mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and
energy saving.
2.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
3.The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed
precision blowing valve unit helps to make high capacity.
4.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
5. High pressure blowing air recovery system saves up to 30% of HPC air.
6. Operation on the touch screen is simple and easy.
Technician Parameter
| Items | Unit | Moldel | |
| RiBo-3R5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 3 | |
| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 3600~3000 | |
| Power Spec. | Rated Power | KW | 118 |
| Power Consumption | KW | 46~56 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 9 | |
| Main Machine Spec. | Size | mm | 7200*3435*3300 |
| Weight | Kg | 8000 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
