| Place of Origin: | Guangdong , China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | RiBo-2CR5L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main blowing machine and the preform feeding system will be packed by the wooden pallets |
| Delivery Time: | 90~120 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 PCS / Year |
| Blow Moulding Type: | Stretch Blow Moulding | Application: | Bottle,5L Water Bottle,Beverage Bottle |
|---|---|---|---|
| Plastic Processed: | PET | Automatic: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support | Capacity: | 2400-2200BPH |
| Cavity: | 2 | Year: | 2020 |
| Use: | Making PET Bottle | Cavity Pitch: | 190mm |
| Preform Heating Pitch: | 63.5mm | Max.container Volume: | 5 L |
| Max.container Diameter: | 180 Mm | Max.container Height: | 330 Mm |
| Power Consumption: | 43~56 KW/H | ||
| Highlight: | 5L 2 Cavity Pet Blowing Machine,2 Cavity Pet Blowing Machine 43KW/H,5L bottle blow molding machine |
||

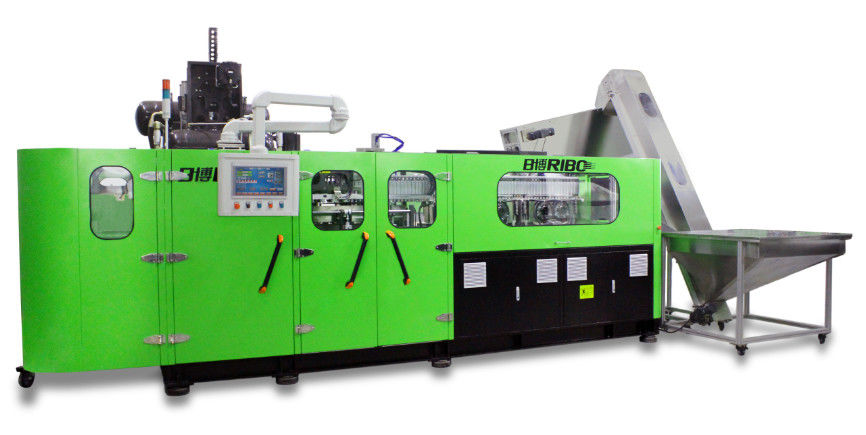

5 L Water Bottle / Big Bottle Blow Moulding Machine
Performance and Characteristics
1．The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position
streamlines the process.
2. 63mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and
energy saving.
3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high
speed and accurate preform handling between the two mechanism.

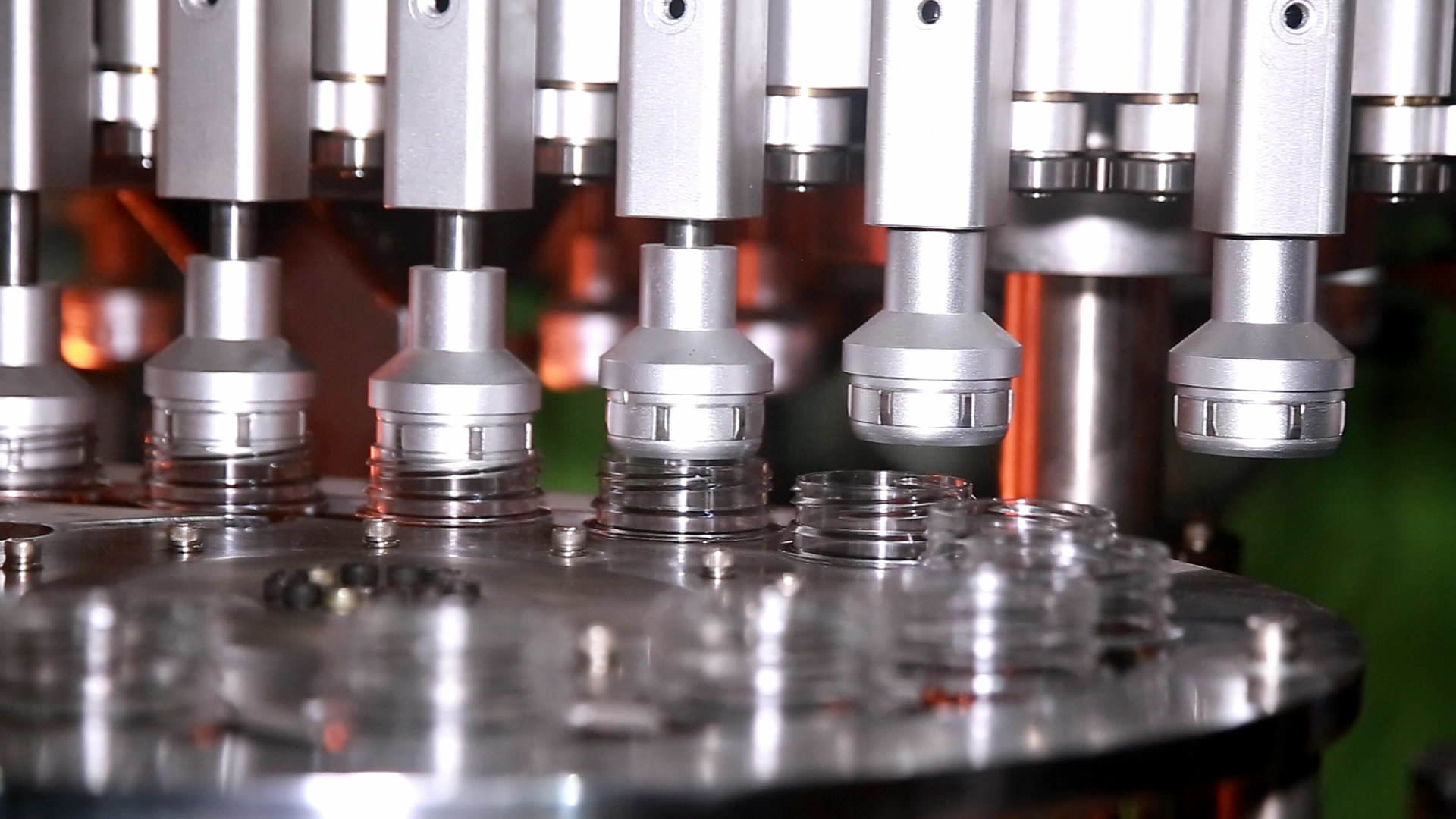

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed
precision blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and
blowing.
7. High pressure blowing air recovery system saves up to 30% of HPC air.
8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10.This series is widely used for making PET bottle for drinking water, edible oil, food, daily chemical……ect.
Technical Parameter
| Items | Unit | Moldel | |
| RiBo-2CR5L | |||
| Molding Spec. | Preform Pitch | mm | 190 |
| Preform Heating Pitch | mm | 63.5 | |
| No.of Cav. | cav. | 2 | |

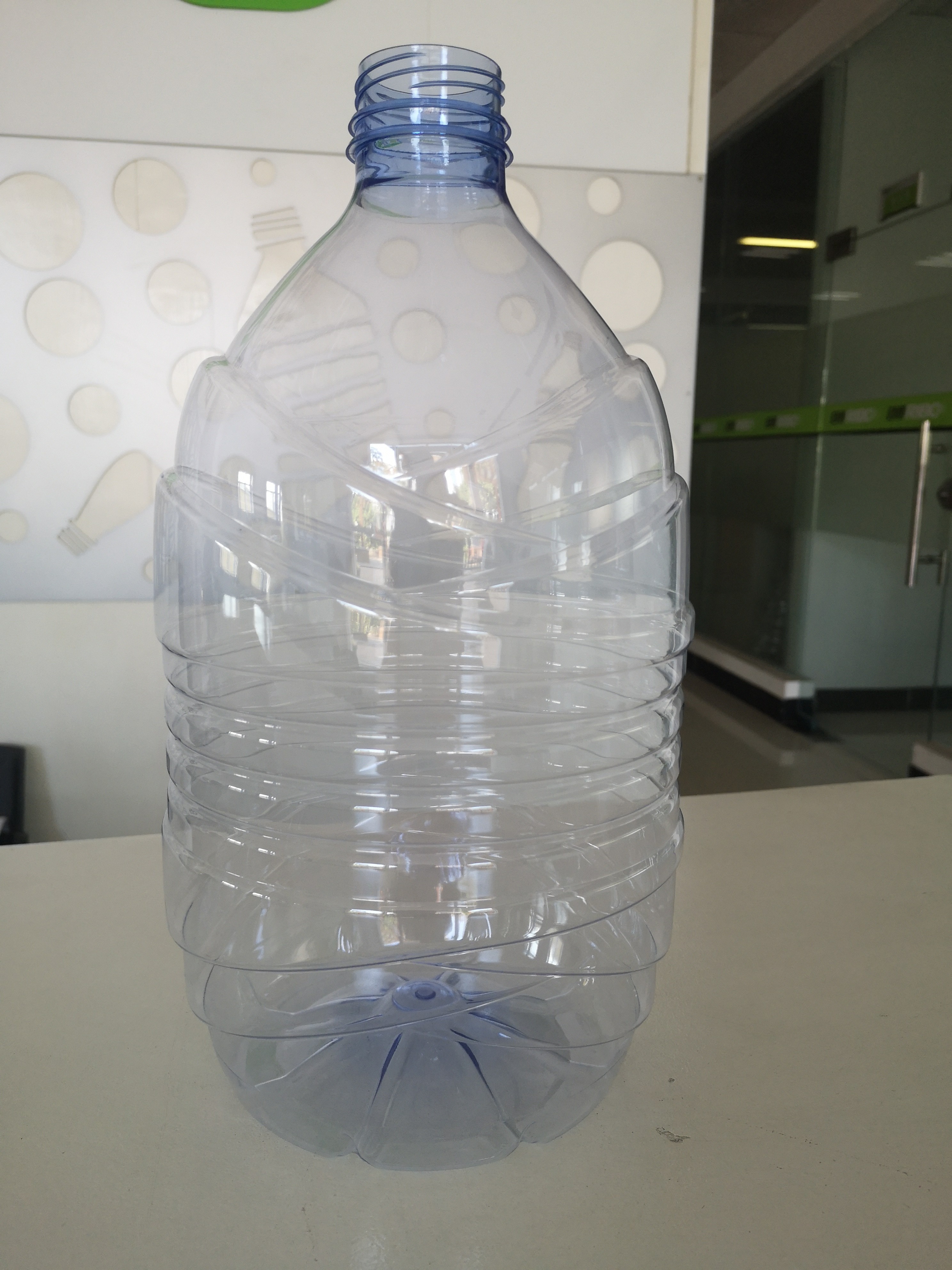

| Container Spec. | Max.Container Volume | L | 5 |
| Neck Diameter Range | mm | 39~45 | |
| Support ring diameter | mm | 57 | |
| Max.Containr Diameter | 180 | ||
| Max.Containr Height | mm | 330 | |
| ※※Theoretical Output | bph | 2400~2200 | |
| Power Spec. | Rated Power | KW | 96 |
| Power Consumption | KW | 38~50 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.5 |
| Air Consuming | m³/min | 8 | |
| Main Machine Spec. | Size | mm | 5800*3719*3600 |
| Weight | Kg | 6700 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
Machine assembly on site
After-sales service
Warranty
We warrant the equipments to be free of defects in design, material and workmanship under normal use and maintenance for a
period of up to 12 months, effective from the day when the equipments are well installed and subjected to commissioning.
The BUYER need to provide the following supports for installation
A. Power, water and air supply needed for the equipments as per the SELLER’s specifications.
B.PET preforms needed for the equipment commissioning.
C. Connection of circuits,water conduits and air pipes up to the equipments shall be done by the qualified local technicians
designated by the BUYER.
D. During the installation and starting-up operations, the BUYER will have to designate necessary skilled technicians as backup
for the SELLER’s engineers. In the case that there is language barrier between the BUYER’s men and the SELLER’s guys
and it tends to delay the progress of the project, the BUYER shall hire an interpreter in advance at their own cost.
E. The SELLER’s engineers’ round trip air tickets, visa fee, lodging hotel with rate no less than 3 star per local standard & food
expenses and local transportation cost in BUYER’s country shall be paid by the BUYER.
