| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | BLMS-8000-2L |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | The main machine will be packed by wooden pallet , spare parts will be packed by wooden box. |
| Delivery Time: | 60~90 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 PCS/Year |
| Voltage: | 380V/50HZ,3 Phase | Warranty: | 1 Year,one Year,12 Months |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Application: | Beverage Bottle/oil Botlte/shampoo Bottle |
| Plastic Processed: | PET | Automatic: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support | Capacity: | 8000~6000BPH |
| Product Name: | Automatic Blowing Molding Machine | Cavity: | 6 Cavity |
| Use: | Making PET Bottle,water Bottle | Max.Volume: | 2L, 2000ml |
| High Light: | Cosmetic PET Bottle Blow Moulding Machine,380V Bottle Blow Moulding Machine,6000BPH PET Blow Moulding Machine |
||

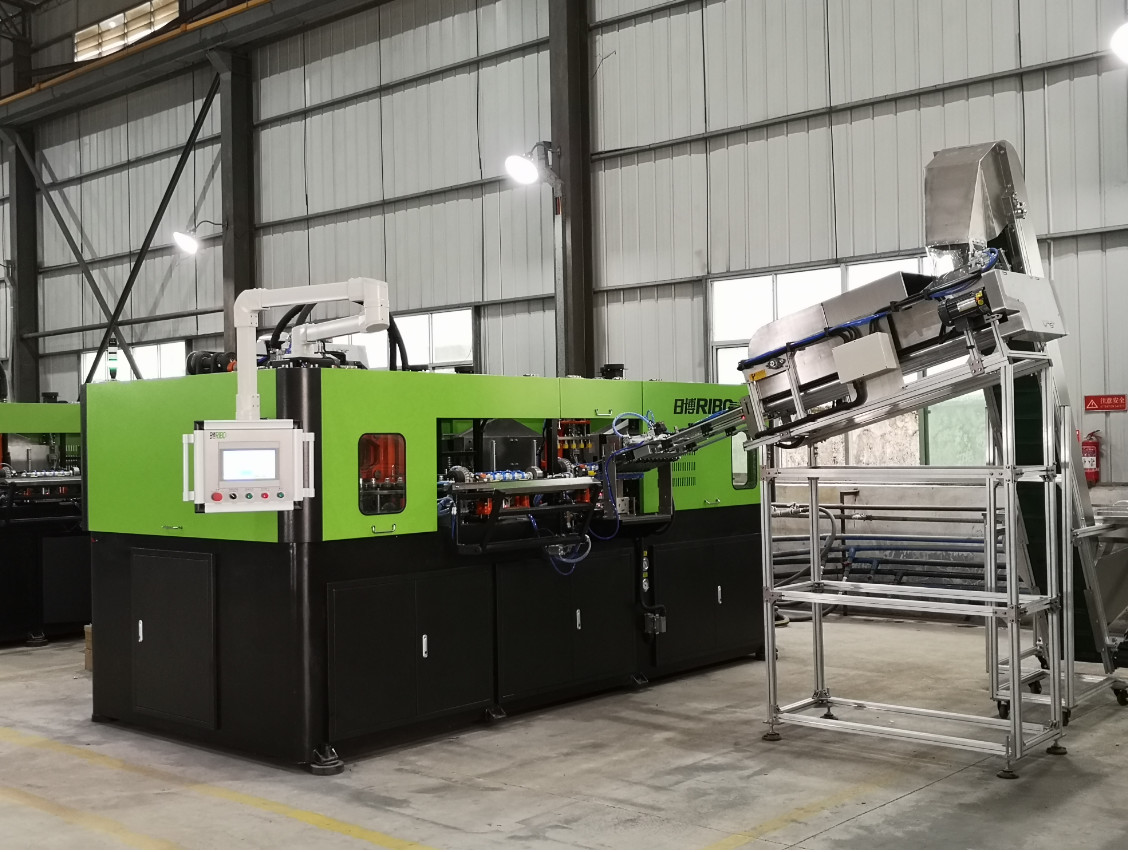

Detergent , Cosmetic PET Bottle Blow Moulding Machine
Electric high speed linear bottle blowing machine features:
1.production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple
maintenance and safety.
2. stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
3. manual and automatic methods of operation, human-machine interface control, simple operation.
4. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Technical Parameters
| Items | Unit | Model | |
| BLMS-8000-2L | |||
| Molding Spec. | Cavity Pitch | mm | 114 |
| Preform Heating Pitch | mm | 114 | |
| No.of Cav. | Cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 108 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 8000~6600 | |
| Power Spec. | Rated Power | KW | 98 |
| Power Consumption | KW | 60~70 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 7~9 | |
| Whole Machine Spec. | Size | mm | 6160*4150*3300 |
| Weight | Kg | 8500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
