| Place of Origin: | Guangdong , China |
|---|---|
| Brand Name: | RiBo |
| Model Number: | BLMS-13000 |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiable |
| Packaging Details: | Main Machine and the preform feeding system will be packed by wooden pallet. |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 PCS |
| Rated Power: | 98 KW | Plastic Processed: | PET |
|---|---|---|---|
| Actual Power: | 60~70 | Automatic: | Yes |
| Weight: | 8 Tons | Capacity: | 13000-12000BPH |
| Product Name: | Automatic Blowing Molding Machine | Year: | 2019 |
| Cavity: | 9 | Cavity Pitch: | 76mm |
| Preform Heating Pitch: | 76mm | Max.Volume: | 600ml |
| High Light: | 12000BPH Bottle Blow Moulding Machine,13000BPH Bottle Blow Moulding Machine,13000BPH Bottle Blow Machine |
||

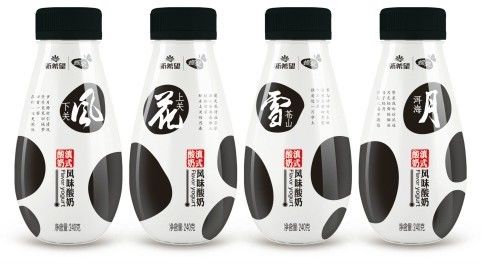

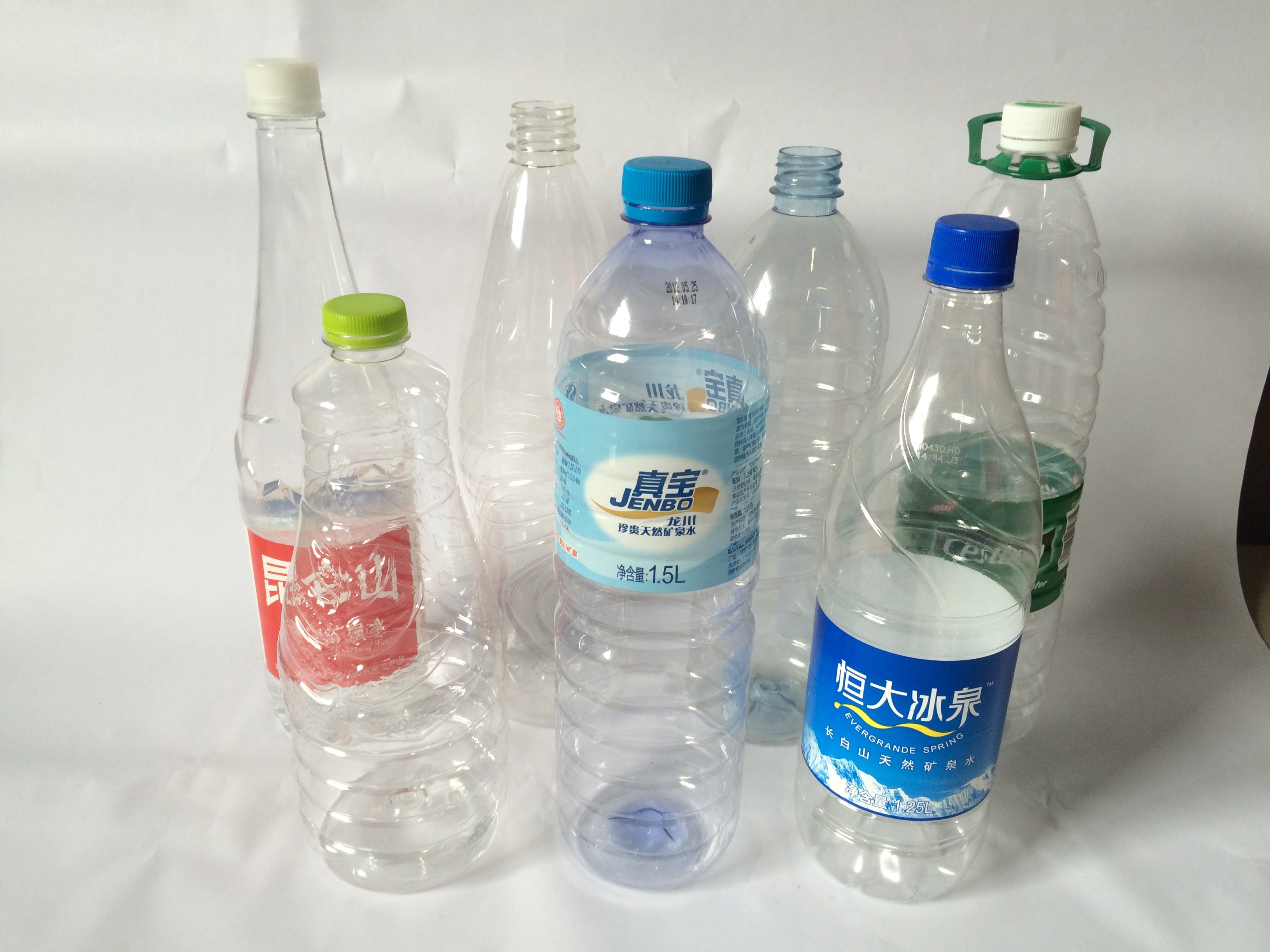

High Quality Water Bottle / Carbonated Drinks / Milk Drink Bottle Blow Moulding Machine
1.Installation, debug
1. Resonable price
| Items | Unit | Model | |
| BLMS-13000 | |||
| Molding Spec. | Cavity Pitch | mm | 76 |
| Preform Heating Pitch | mm | 76 | |
| No.of Cav. | Cav. | 9 | |
| Container Spec. | Max.Container Volume | L | 0.6 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 13000~12000 | |
| Power Spec. | Rated Power | KW | 98 |
| Power Consumption | KW | 60~70 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 9~10 | |
| Whole Machine Spec. | Size | mm | 6160*4150*3300 |
| Weight | Kg | 8000 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
